Nokia C1-01 Service Manual

Nokia C1-01 / C1-
03
RM-607 / RM-608
Service Manual Level 1&2
12 Confidential | Copyright © 2010 Nokia | All rights reserved Version 2.0

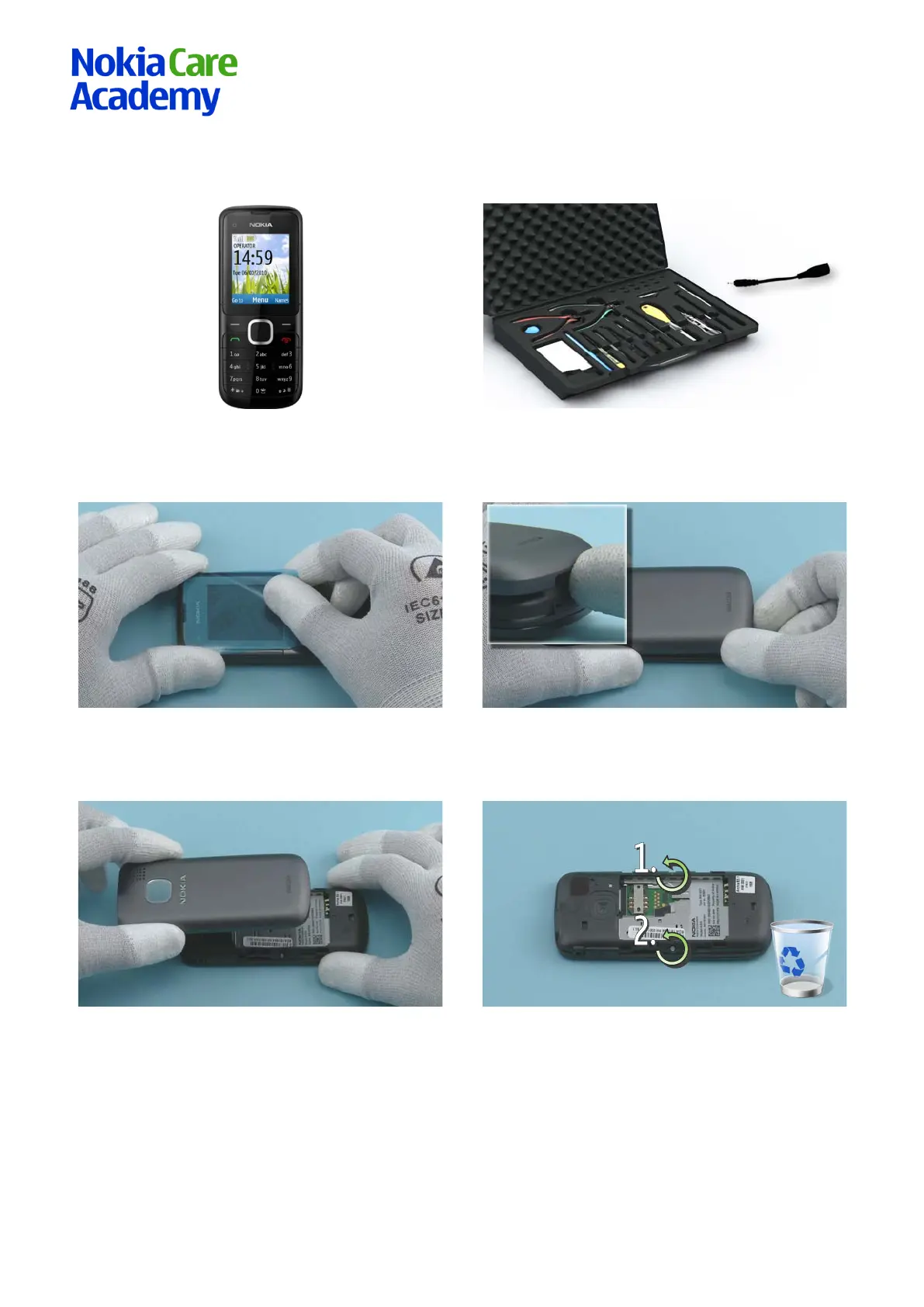

9. DISASSEMBLY INSTRUCTIONS
1) Nokia C1-01 / C1-03 disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need the DC plug.
3) Protect the A-COVER with the protective film. 4) Open the BATTERY COVER by using the release
notch.
5) Remove the BATTERY COVER. 6) Unscrew the two Torx+ size 4 screws. Do not use
them again. Discard them.

Nokia C1-01 Specifications

General

Display type	TFT
Display diagonal	1.8 \
Display resolution	128 x 160 pixels
Display number of colors	65536 colors
Internal memory	64 MB
Flash card support	Yes
Maximum memory card size	32 GB
Image formats supported	BMP, GIF, JPG
Rear camera resolution (numeric)	- MP
Interface	USB 2.0
Playback formats	MP3, AAC, WAV, MIDI
Supported network protocols	TCP/IP, HTTP v1.1, WAP
Headphone connectivity	3.5 mm
Data network	GPRS
GSM bands supported	850, 900, 1800, 1900 MHz
SIM card capability	Single SIM
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Video compression formats	3GP
Ringer type	Polyphonic
Voice codecs	AMR
Audio formats supported	AAC, MP3, WAV
Polyphonic rings quantity	64
Form factor	Bar
Phonebook capacity	1000 entries
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Converter, Notes, To-do list
Battery type	BL-5CB
Talk time (2G)	10.6 h
Standby time (2G)	1260 h

Weight and Dimensions

Depth	108 mm
Width	45 mm
Height	14 mm
Volume	57 cm³
Weight	78.8 g
