Nokia C1-01 Service Manual

Nokia C1-01 / C1-
03
RM-607 / RM-608
Service Manual Level 1&2
9 Confidential | Copyright © 2010 Nokia | All rights reserved Version 2.0

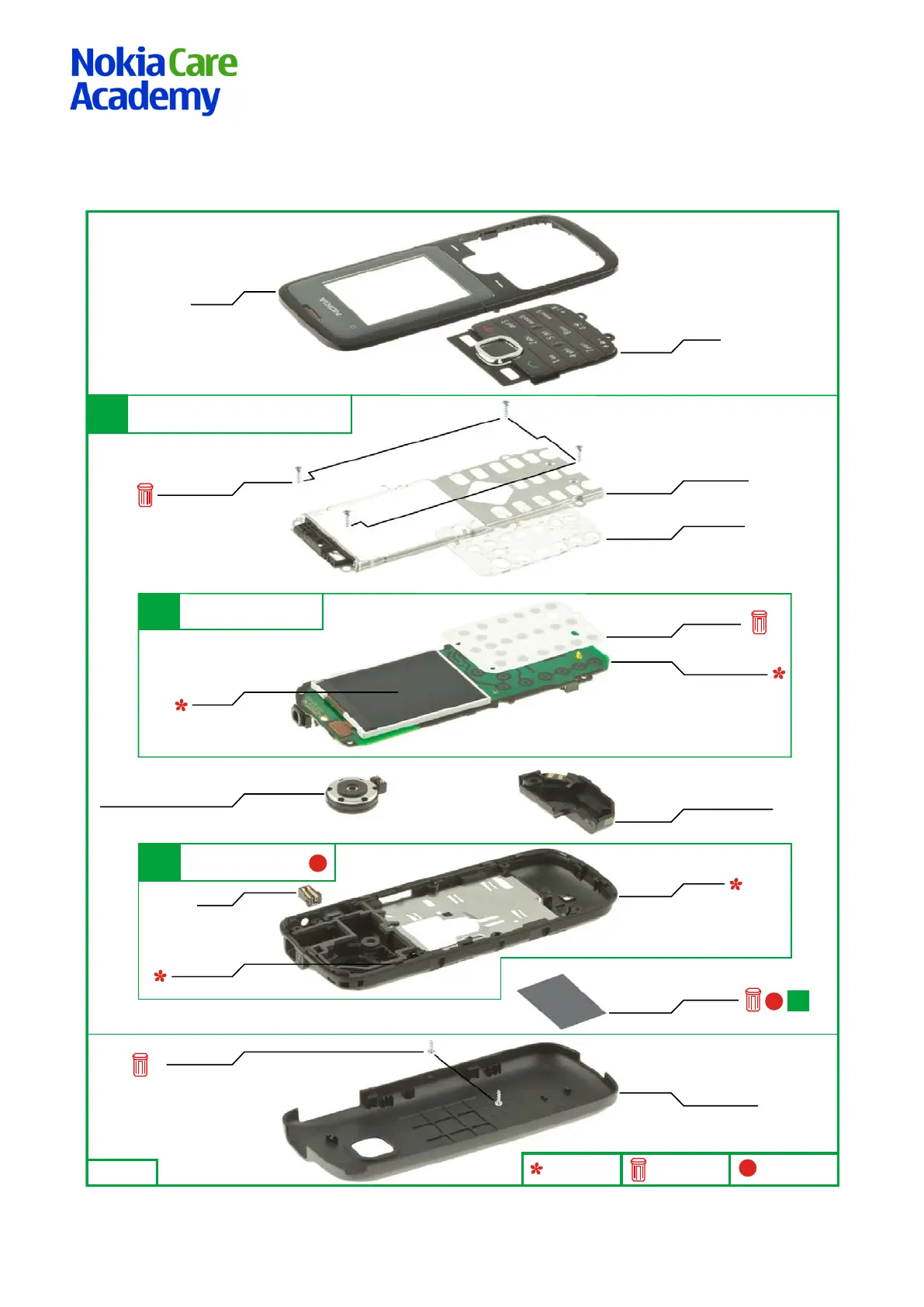

6. EXPLODED VIEW
A1
ATO SWAP PACKAGE
(I0003 - I0005, A2, I0010, A3, I0014)
A2
LIGHT SWAP PACKAGE
(I0006 - I0009)
A3
D-COVER ASSEMBLY
(I0011 - I0013)
Ver. 1.0
A-COVER
I0001
SCREW TORX+ 6
I0003
BATTERY COVER
I0016
SCREW TORX+ 4
I00015
TYPE LABEL
I0009
UI SHIELDING
I0005
KEYMAT
I0002
ANTENNA MODULE
I0010
D-COVER
I0013
DOMESHEET
I0007
LIGHT SWAP PWB
I0008
LIGHT GUIDE
I0004
EARPIECE / SPEAKER / VIBRA
I0014
DISPLAY
I0006
DC JACK
I0011
BT ANTENNA
I0012
A2
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
L3
L3
L3

Nokia C1-01 Specifications

General

Display type	TFT
Display diagonal	1.8 \
Display resolution	128 x 160 pixels
Display number of colors	65536 colors
Internal memory	64 MB
Flash card support	Yes
Maximum memory card size	32 GB
Image formats supported	BMP, GIF, JPG
Rear camera resolution (numeric)	- MP
Interface	USB 2.0
Playback formats	MP3, AAC, WAV, MIDI
Supported network protocols	TCP/IP, HTTP v1.1, WAP
Headphone connectivity	3.5 mm
Data network	GPRS
GSM bands supported	850, 900, 1800, 1900 MHz
SIM card capability	Single SIM
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Video compression formats	3GP
Ringer type	Polyphonic
Voice codecs	AMR
Audio formats supported	AAC, MP3, WAV
Polyphonic rings quantity	64
Form factor	Bar
Phonebook capacity	1000 entries
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Converter, Notes, To-do list
Battery type	BL-5CB
Talk time (2G)	10.6 h
Standby time (2G)	1260 h

Weight and Dimensions

Depth	108 mm
Width	45 mm
Height	14 mm
Volume	57 cm³
Weight	78.8 g
