Nokia C3-01 Service Manual

Nokia C3-01/C3-01m
RM-640/RM-662
Service Manual Level 1&2
12 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

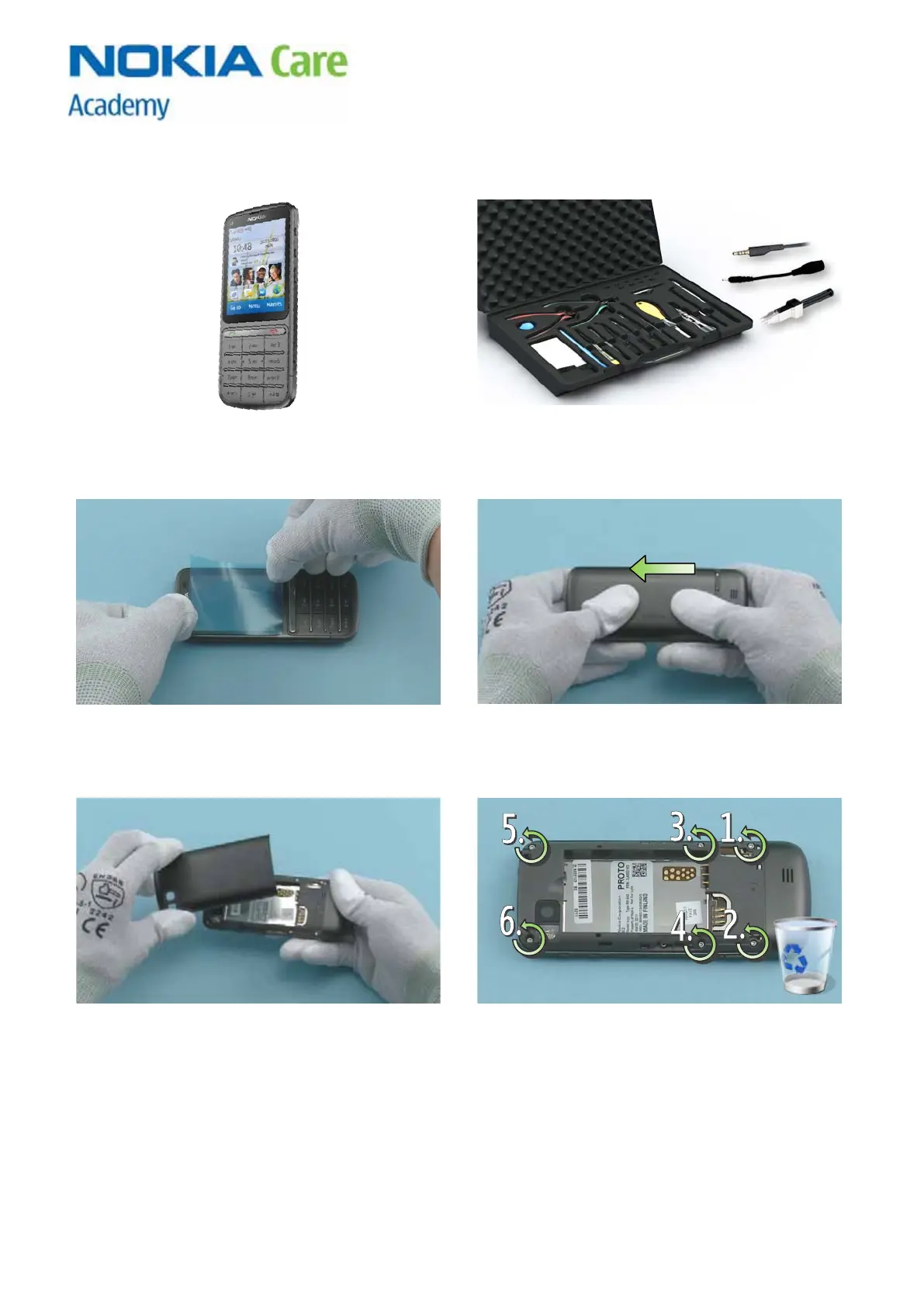

9. DISASSEMBLY INSTRUCTIONS
1) Nokia C3-01 disassembly. 2) For disassembling you need the Nokia Standard
Toolkit version 2, the camera removal tool SS-88, an
AV plug and a DC plug.
3) Protect the TOUCH PANEL with protective film. 4) Push the BATTERY COVER to the direction shown.
5) Remove the BATTERY COVER. If there is a battery
inserted, remove it also.
6) Unscrew the six TORX+ size 4 screws in the order
shown. Do not use them again!

Nokia C3-01 Specifications

General

Resolution	240 x 320 pixels (~167 ppi pixel density)
Internal Storage	30 MB
RAM	64 MB
Main Camera	5 MP
Video	480p@15fps
Talk time	Up to 5 h 30 min (2G) / Up to 4 h (3G)
Network Technology	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 850 / 900 / 1900 / 2100
Speed	HSPA 10.2/2 Mbps
GPRS	Class 33
EDGE	Class 33
Announced	2010, September
Status	Discontinued
Weight	100 g (3.53 oz)
SIM	Mini-SIM
Memory Card slot	microSD, up to 32 GB
Call records	Yes
Loudspeaker	Yes
3.5mm jack	Yes
WLAN	Wi-Fi 802.11 b/g/n
Bluetooth	2.1, A2DP, EDR
GPS	No
Radio	Stereo FM radio, RDS
USB	microUSB 2.0
Sensors	No
Messaging	SMS, MMS, Email, IM
Browser	WAP 2.0/xHTML, HTML
Java	Yes, MIDP 2.1
Display Type	TFT
Display Size	2.4 inches
Battery Capacity	Li-Ion 1050 mAh (BL-5CT)
Operating System	Symbian OS, S40
Dimensions	111 x 47.5 x 11 mm
Phonebook	Yes, Photocall
Sound	Vibration; MP3 ringtones
Colors	Warm Grey, Silver
SAR	0.99 W/kg (head)
