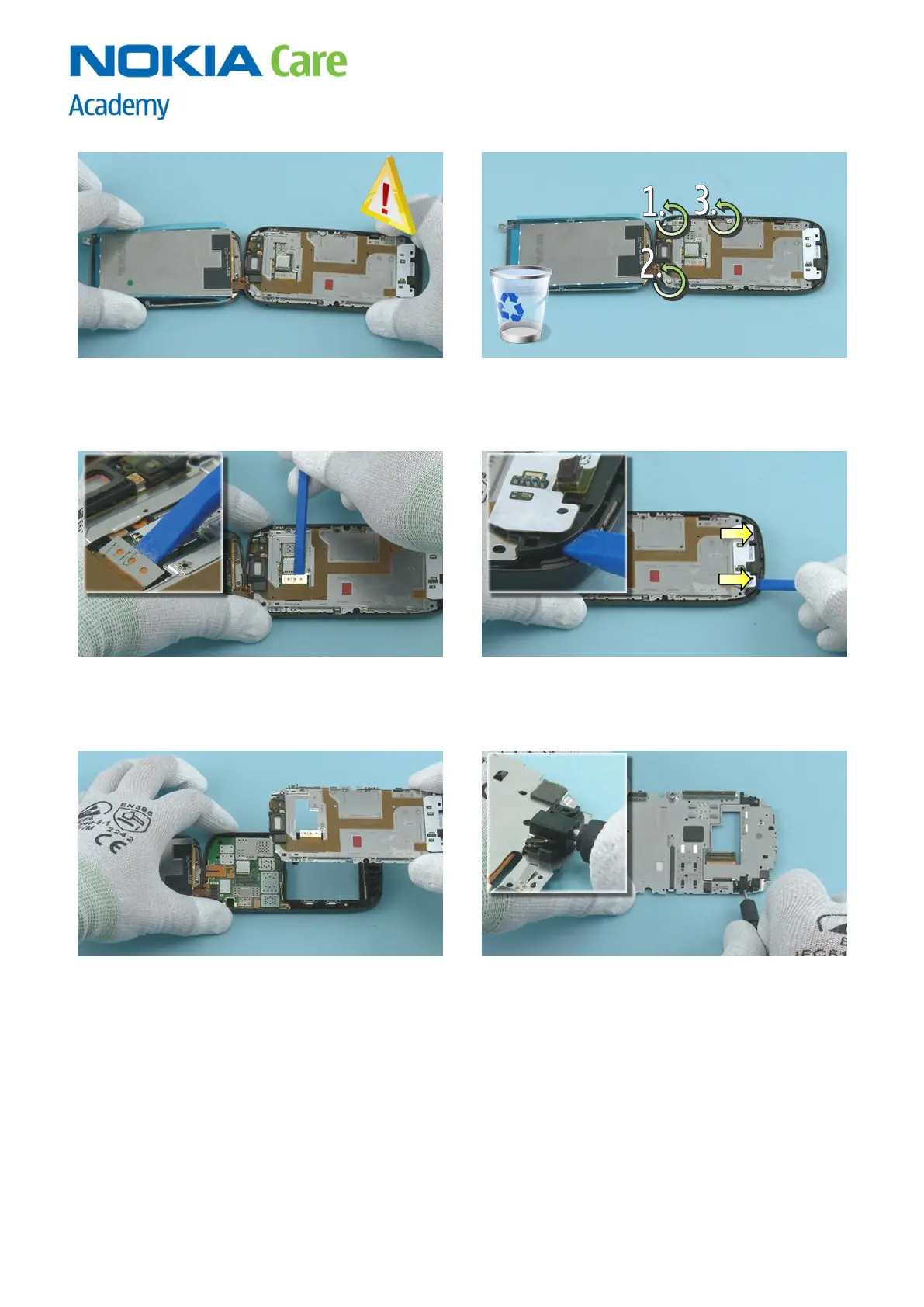

19) While turning the DISPLAY over, be careful not to
damage the DISPLAY flex.
20) Unscrew the three TORX+ size 6 screws in the
order shown. Do not use them again. Discard them.
21) Use the SS-93 to open the MAIN FLEX connector.
22) Use the SS-93 to release the CHASSIS.
23) Lift up the CHASSIS.
24) Use a DC plug to remove the DC JACK.
