Nokia C7-00 Service Manual

Nokia C7-00
RM-675
Service Manual Level 1&2
16
Confidential | Copyright © 2010 Nokia | All rights reserved
Version 2.0

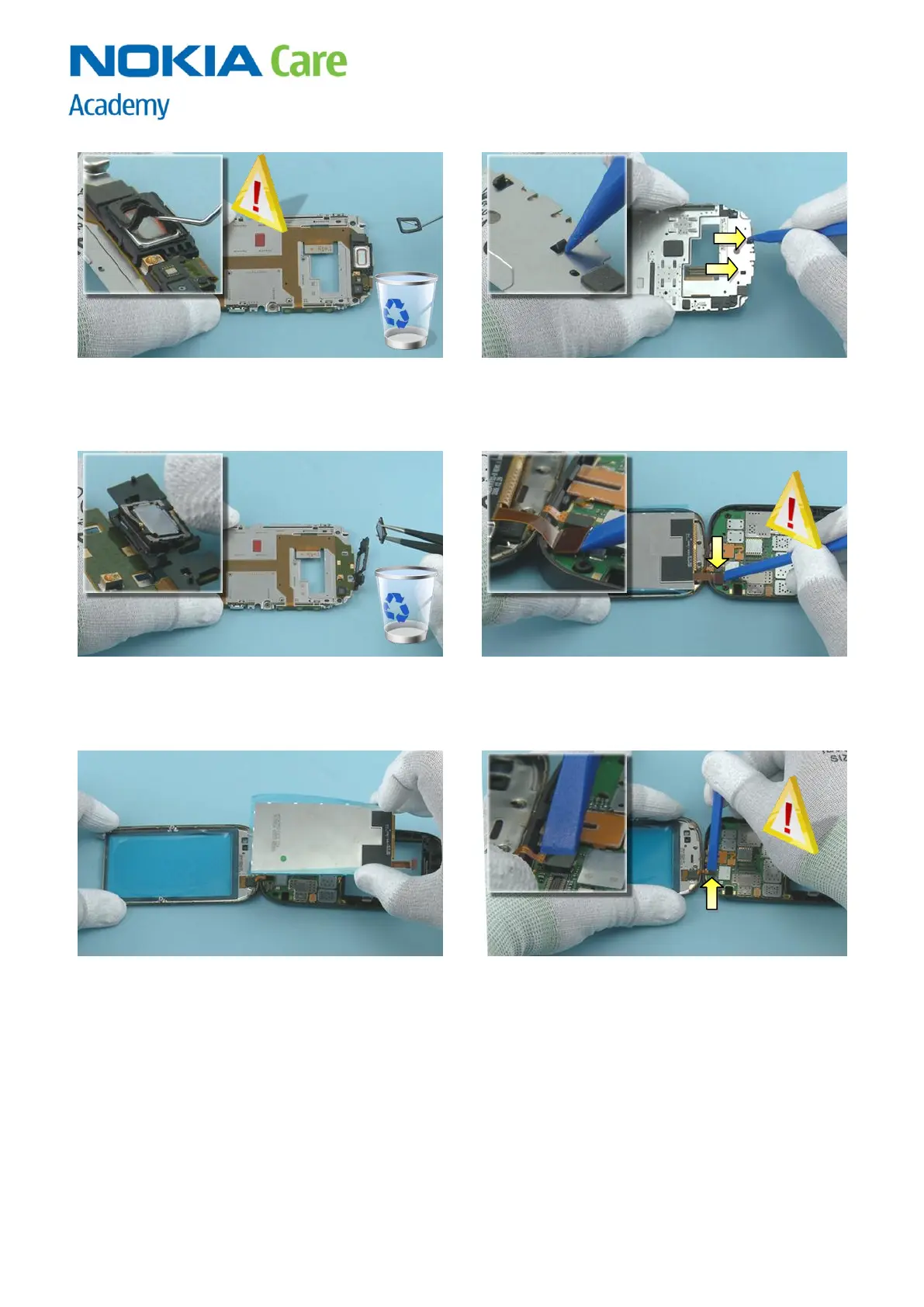

25) Remove the EARPIECE GASKET with the dental
tool. Do not use it again. Discard it. Be careful not to
injure yourself with the sharp end of the dental tool!
26) Use the sharp end of the SS-93 to release the
clips holding the EARPIECE.
27) Use the tweezers to remove the EARPIECE. Do not
use it again. Discard it.
28) Use the SS-93 to release the DISPLAY connector.
While opening the connector, be careful not to
damage the connector or any nearby components.
29) Remove the DISPLAY.
30) Use the SS-93 to release the TOUCH PANEL
connector. While opening the connector, be careful
not to damage the connector or any nearby
components.
