Nokia E7-
00
RM-626

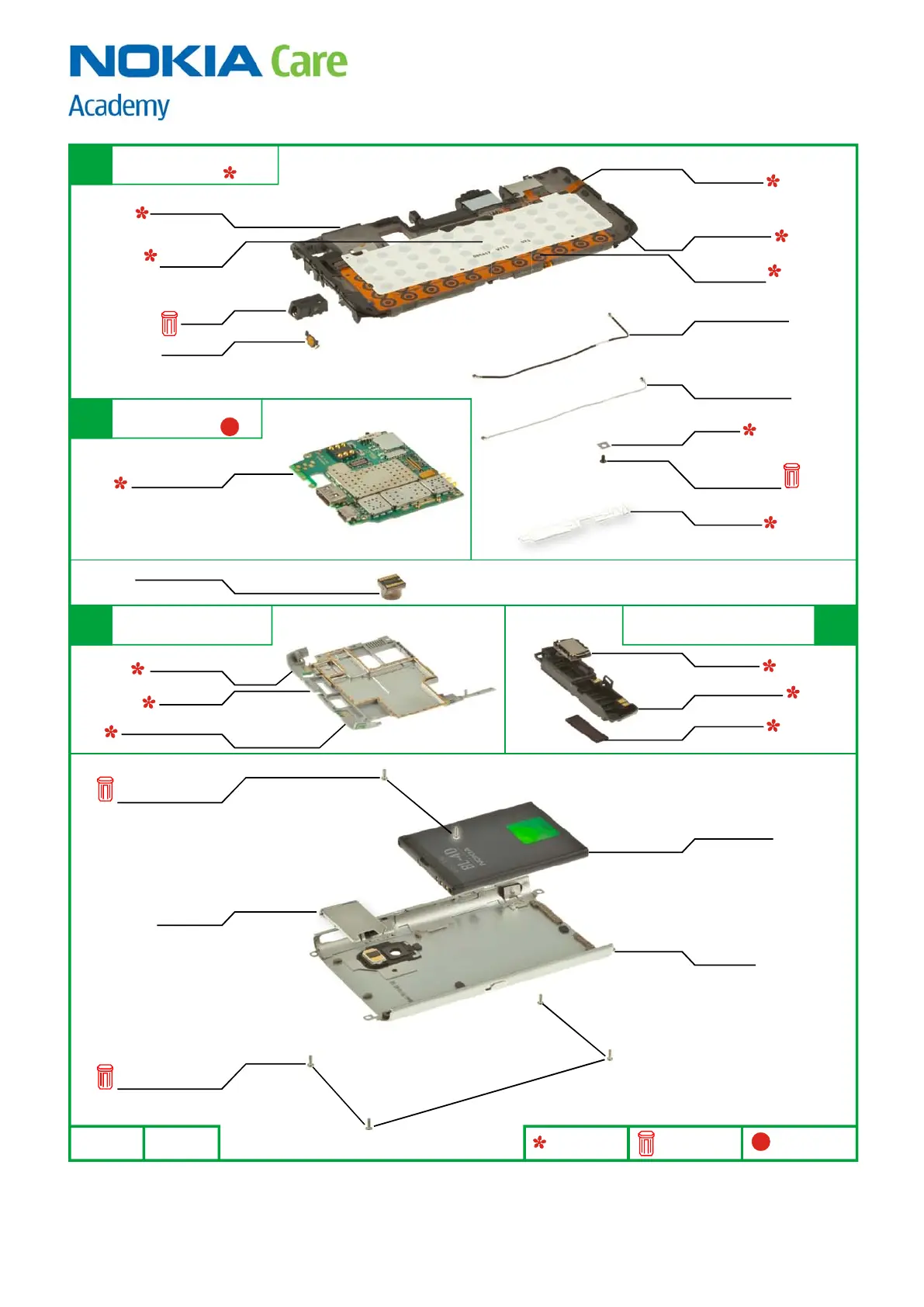

Service Manual Level 1&2
10 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
L3
Ver. 1.0 Page 2/2
L3
LIGHT SWAP PWB
I0222
PWB FRAME
I0227
AV JACK
I0207
POWER KEY
I0208
GPS ANTENNA
I0225
WLAN/BT ANTENNA
I0226
SCREW TORX+ SIZE 4
M1.4x3.9
I0228
SIM HOLDER
I0235
KEYMAT
DOMESHEET
I0205
CAMERA MODULE
I0224
BASE CHASSIS
I0216
SCREW TORX+ SIZE 4
M1.4x3.9
I0234
ANTENNA FRAME
I0231
ANTENNA PWB
I0215
WASHER
I0212
MICROPHONE
I0214
IHF ADHESIVE
I0230
BATTERY BL-4D
I0232
QWERTY
FLEX MODULE
I0206
BACK COVER
I0233
IHF SPEAKER
I0229
COAX CABLE BLACK
I0209
SCREW PHILLIPS
SIZE 00 M1.4x2.3
I0211
CABLE COVER
I0213
COAX CABLE WHITE
I0210
A4
LIGHT SWAP PACKAGE
(I0222 - I0223)
A5
PWB FRAME ASSEMBLY
(I0225 - I0227)
A3
BASE CHASSIS ASSEMBLY
(I0205 - I0216)
A6
ANTENNA FRAME ASSEMBLY
(I0229 - I0231)
