RM-626
Service Manual Level 1&2
9 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

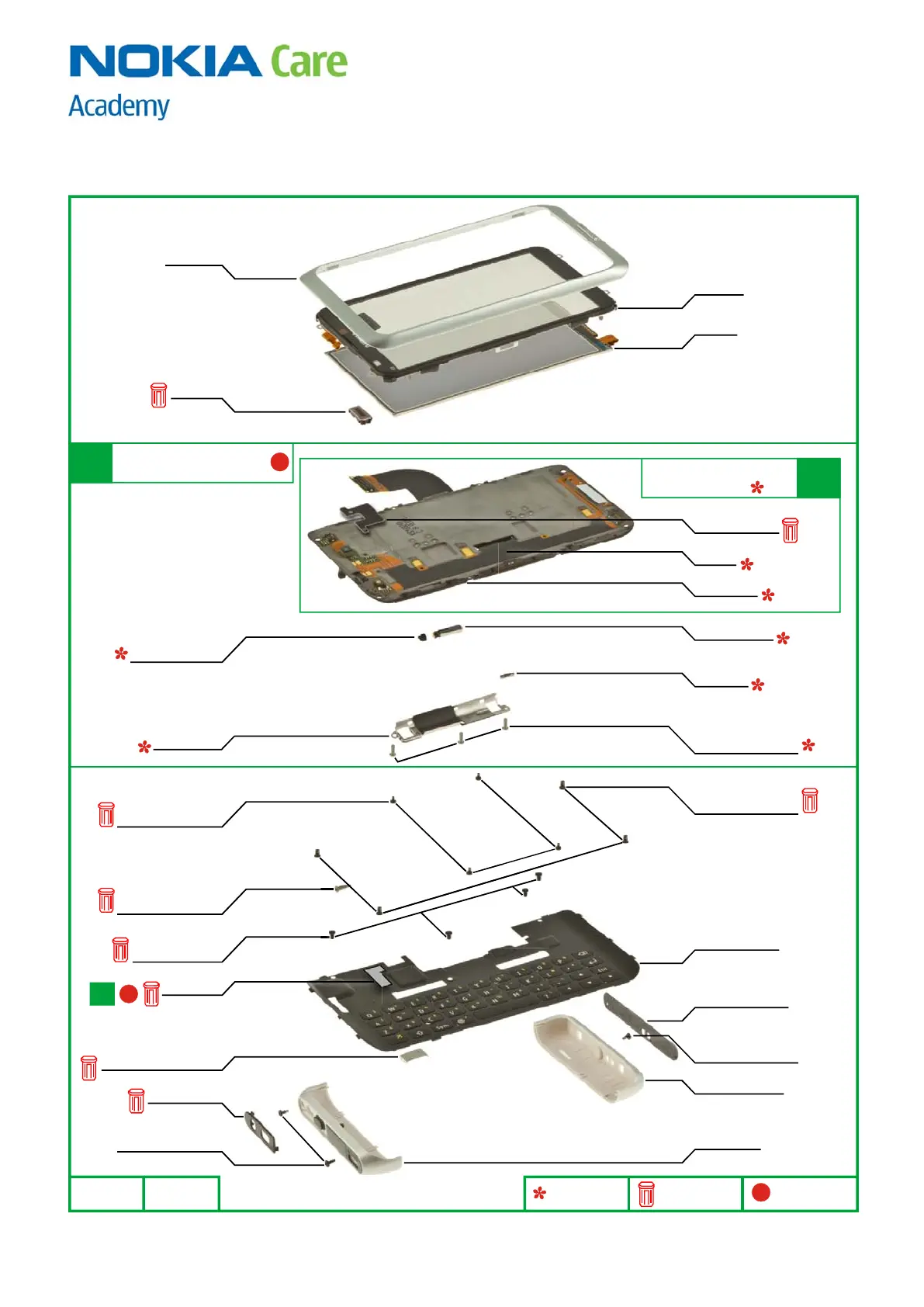

6. EXPLODED VIEW
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
L3
Ver. 1.0 Page 1/2
A4
L3
L3
EARPIECE
I0006
SCREW TORX+ SIZE 4
M1.4x5.6
I0201
SCREW TORX+ SIZE 4
M1.0x1.9
I0009
SCREW PHILLIPS
SIZE 00 M1.4x2.3
I0202
SCREW TORX+ SIZE 4
RF1.4x3.0
I0002
HINGE ELEMENT
AUXILIARY SHAFT
I0218
HINGE COVER
I0220
CONNECTOR LOCK PLATE
I0204
TYPE LABEL
I0223
TOP END DECO
I0001
LID FRAME
I0004
WINDOW
I0005
DISPLAY
I0007
HINGE ELEMENT
I0217
UI FLEX
I0102
HINGE PIN
I0219
QWERTY KEYMAT
I0203
BOTTOM END DECO
I0238
TOP END CAP
I0003
LID CHASSIS
I0103
BOTTOM END CAP
I0236
SCREW TORX+ SIZE
4
M1.4x3.0
I0237
SCREW
TORX+ SIZE 4
M1.4x3.8
I0221
SCREW TORX+ SIZE 4
M1.6x2.5
I0008
SPACER FLEX LID
I0101
A1
CHASSIS ASSEMBLY
(A2, A3, I0217 - I0221)
A2
LID CHASSIS ASSEMBLY
(I0101 - I0103)
