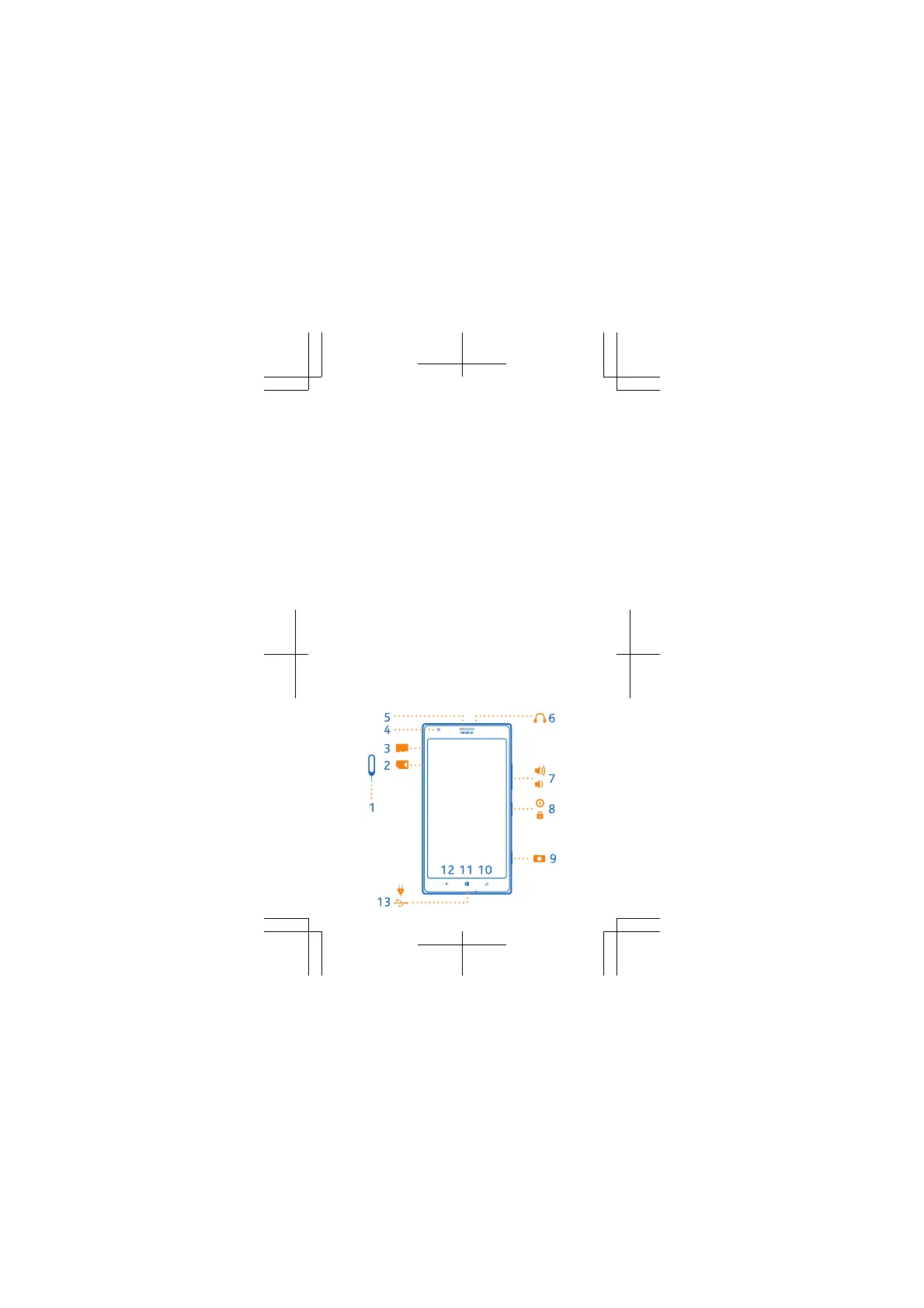

Keys and parts
1 SIM and memory card holder tool, available
in the sales box.
2Nano-SIM holder
3 Memory card holder
4 Front camera
5Earpiece
6 Connector for headphones and
loudspeakers (3.5 mm)
7Volume keys
8 Power/Lock key
9 Camera key
10 Search key
11 Start key
12 Back key
13 Micro-USB connector
Do not attempt to open the back cover or remove
the battery from the device. To replace the
battery, take the device to your nearest
authorised service facility.
2
