Nokia Lumia 1520 User Manual

Get started
Get to grips with the basics, and have your phone up and running in no time.

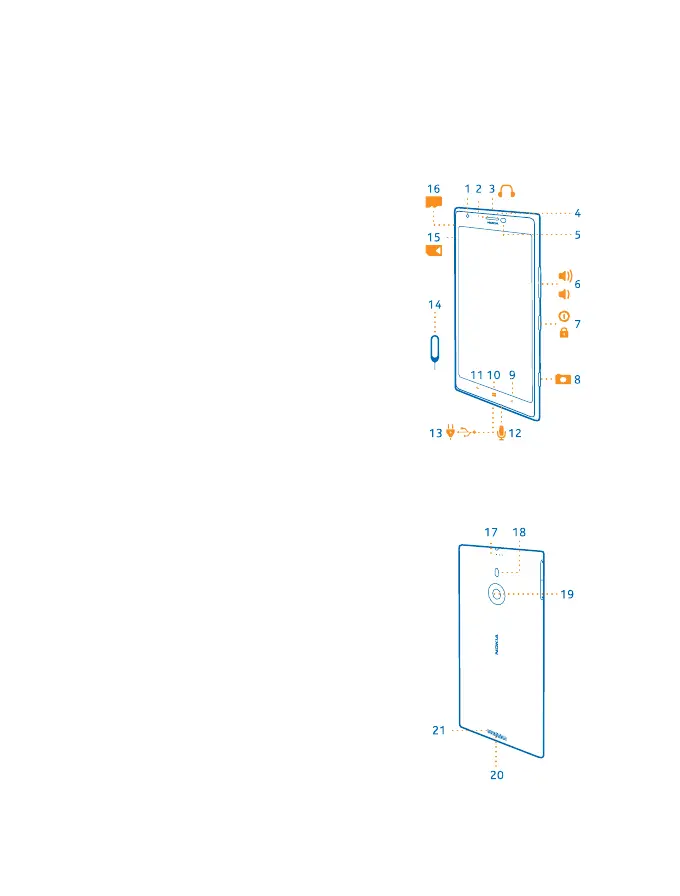

Keys and parts
Explore the keys and parts of your new phone.
1 Front camera
2Earpiece
3 Connector for headphones and
loudspeakers (3.5 mm)
4 2nd microphone
5 Proximity sensor/Light sensor
6Volume keys
7 Power/Lock key
8 Camera key
9Search key
10 Start key
11 Back key
12 Microphone
13 Micro-USB connector
14 SIM and memory card holder tool, available
in the sales box.
15 Nano-SIM holder
16 Memory card holder
17 3rd microphone
18 Camera flash
19 Back camera
20 Loudspeaker
21 4th microphone
Back, start, and search key
The back, start, and search keys help you navigate your phone.
© 2013 Nokia. All rights reserved.
6

Nokia Lumia 1520 Specifications

General

Display Size	6.0 inches
Resolution	1080 x 1920 pixels
Display Type	IPS LCD
Processor	Qualcomm Snapdragon 800
RAM	2 GB
Internal Storage	32 GB
Rear Camera	20 MP
Front Camera	1.2 MP
Battery Capacity	3400 mAh
Battery Type	Li-Ion
Operating System	Windows Phone 8, upgradable to 8.1
SIM Card	Nano-SIM
Dimensions	162.8 x 85.4 x 8.7 mm
Weight	209 g
Network	GSM / HSPA / LTE
Colors	Yellow, White, Black, Red
