Get started
Get to grips with the basics, and have your tablet up and running in no time.

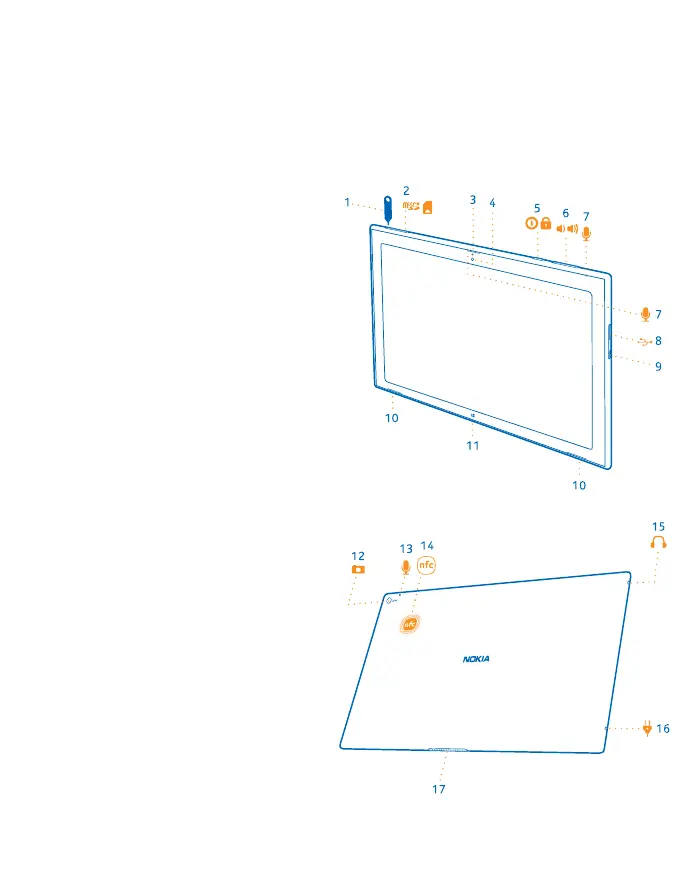

Keys and parts
Explore the keys and parts of your new tablet.
1 SIM door key
2 Memory card and micro-SIM holder
3 LED indicator light for front camera
4 Front camera
5 Power/Lock key
6Volume keys
7Microphones
8Micro-USB 3.0 connector
9 Micro-HDMI connector
10 Speakerphones
11 Windows button
12 Camera
13 Microphone
14 NFC area
15 Connector for headphones and
speakerphones (3.5 mm)
16 Charger connector
17 Keyboard dock
Some of the accessories mentioned in this user
guide may be sold separately.
© 2013 Nokia. All rights reserved.
5
