Service Manual Level 1 and 2
Nokia Lumia 800
RM-801, RM-819
Version 2.0

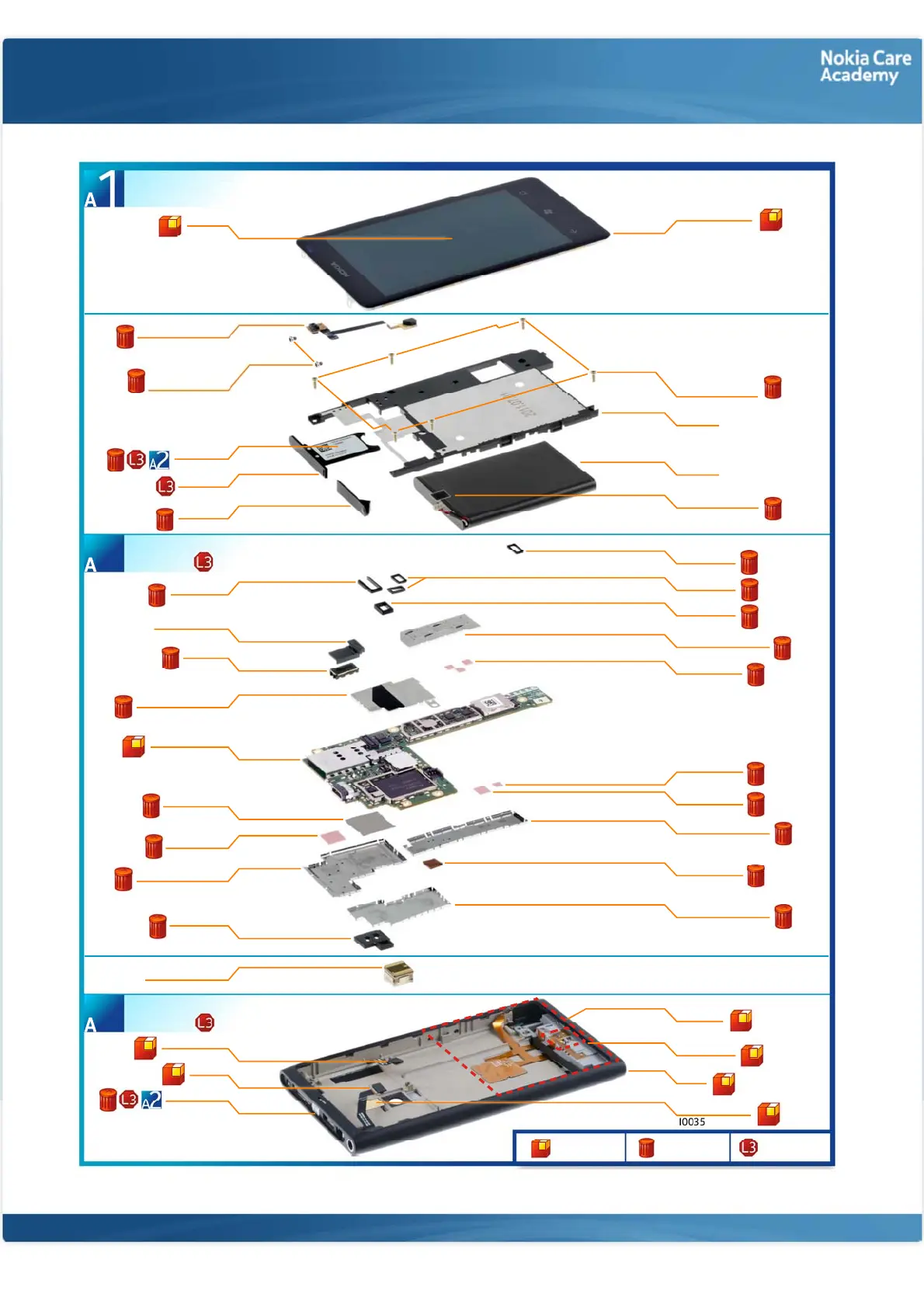

Exploded view
DISPLAY
I0004
EARPIECE BOOT
I0028
EARPIECE
I0029
LIGHT SWAP PWB
I0011
THERMAL PAD
I0023
FLASH BOOT
I0026
USB DOOR
I0001
SIM DOOR
I0002
TYPE LABEL
I0027
BTB RUBBER
I0012
ALS PROXIMITY FPC
I0006
SHIELDING COVER 1
I0019
SHIELDING COVER 2
I0020
THERMALPAD
I0022
CAMERA MODULE
I0030
SIDE KEY FLEX
I0031
AV FLEX
I0032
TYPE LABEL 2
I0027
SCREW TORX+
SIZE 5 M1.4 X 1.7
I0003
WINDOW FRAME
I0005
THERMAL PAD
I0018
SCREW TORX+
SIZE 5 M1.4 X 3.6
I0007
BATTERY
I0009
CHASSIS
I0008
BATTERY SPONGE
I0010
THERMAL PAD
I0025
THERMAL PAD
I0024
SHIELDING COVER 7
I0017
SHIELDING COVER 8
I0016
THERMAL PAD
I0018
BTB RUBBER
I0014
BTB RUBBER
I0013
BTB RUBBER
I0015
SHIELDING COVER 4
I0021
BODY
I0036
FLASH MODULE
IHF SPEAKER
I0033
ANTENNA
I0034
LIGHT SWAP PACKAGE
(I0011 - I0029)
2
BODY ASSEMBLY
(I0031 - I0036)
3
DISPLAY ASSEMBLY
(I0004, I0005)
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
©2011 Nokia | Confidential | All Rights Reserved.
