Nokia Lumia 930 RM-1045 - Page 10

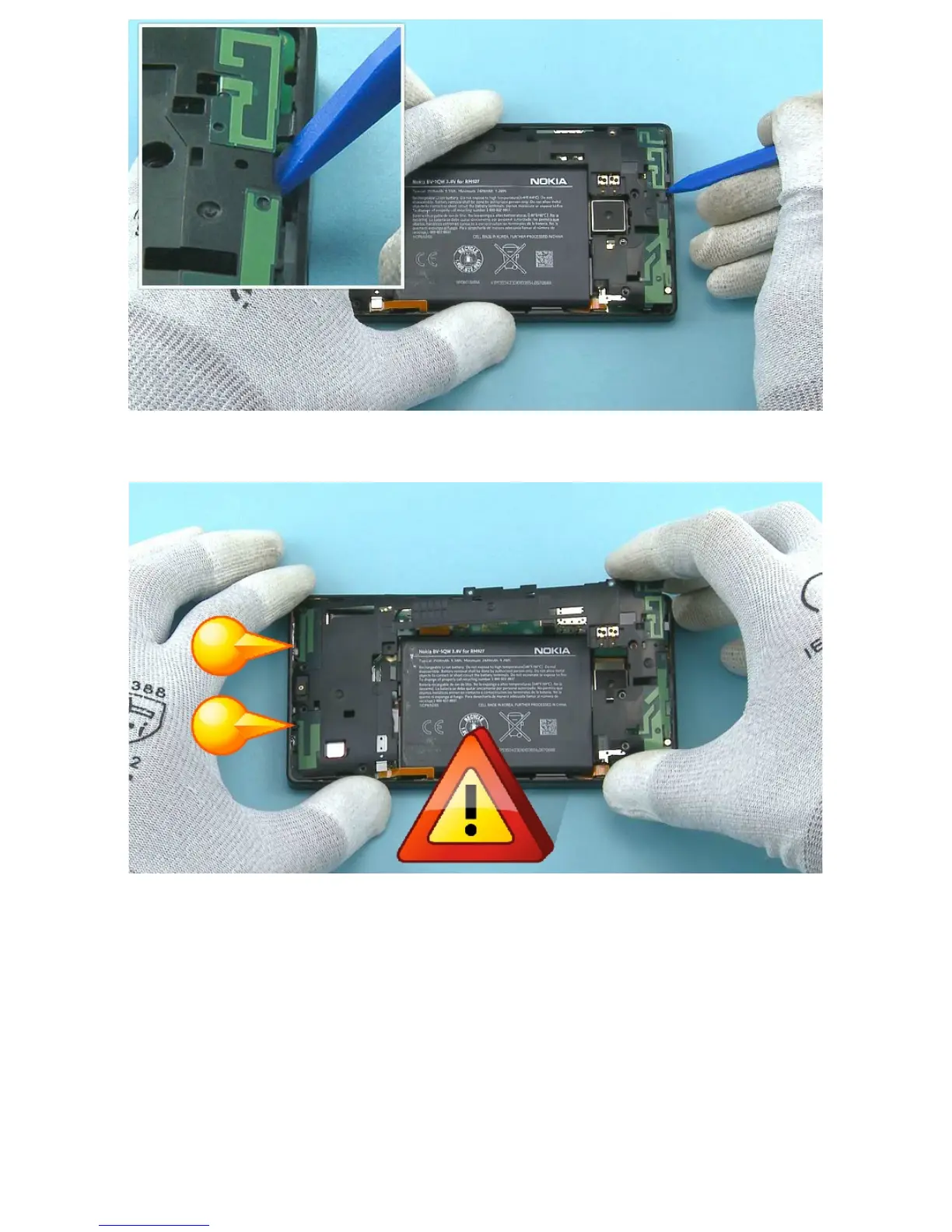

11) Release the ENGINE COVER ASSEMBLY from the shown place with the SS-93.
12) Lift up and remove the ENGINE COVER ASSEMBLY top end first. Be careful not to damage the antenna
spring contacts on the bottom of the ENGINE COVER ASSEMBLY.
