Assembly hints
Note that the device shown in most of these pictures is the Nokia Lumia Icon. On those steps the spare
parts and the assembly procedures are the same.

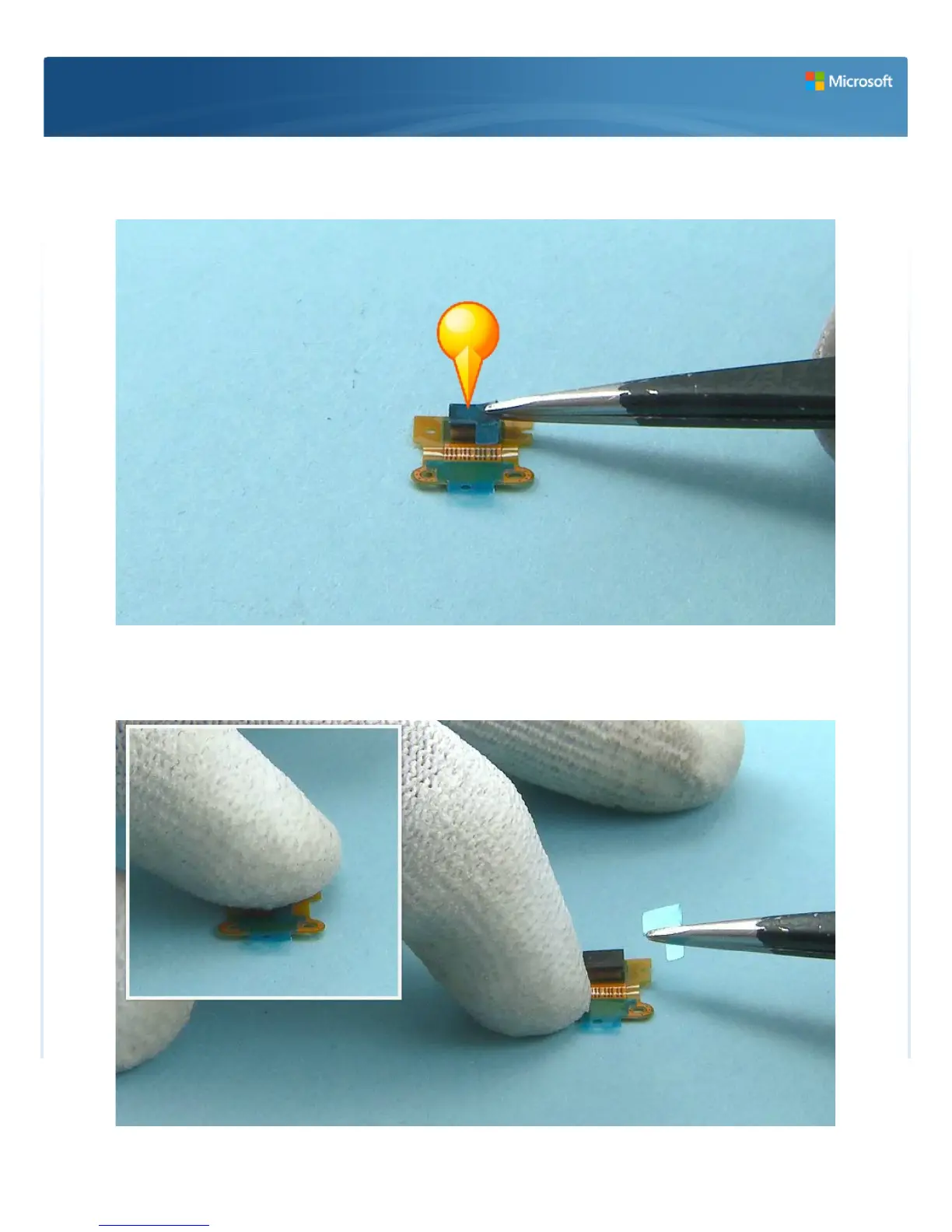

1) To assemble the PRIMARY MIC FLEX, first place the PRIMARY MIC GASKET on the microphone. Make sure
the shown hole aligns with the microphone hole.
2) Press gently to activate the adhesive and remove the protective film from the PRIMARY MIC GASKET.
