Nokia Lumia 930 RM-1045 User Manual

Service Manual Level 1 and 2
Nokia Lumia 930
RM-1045
Version 1.0

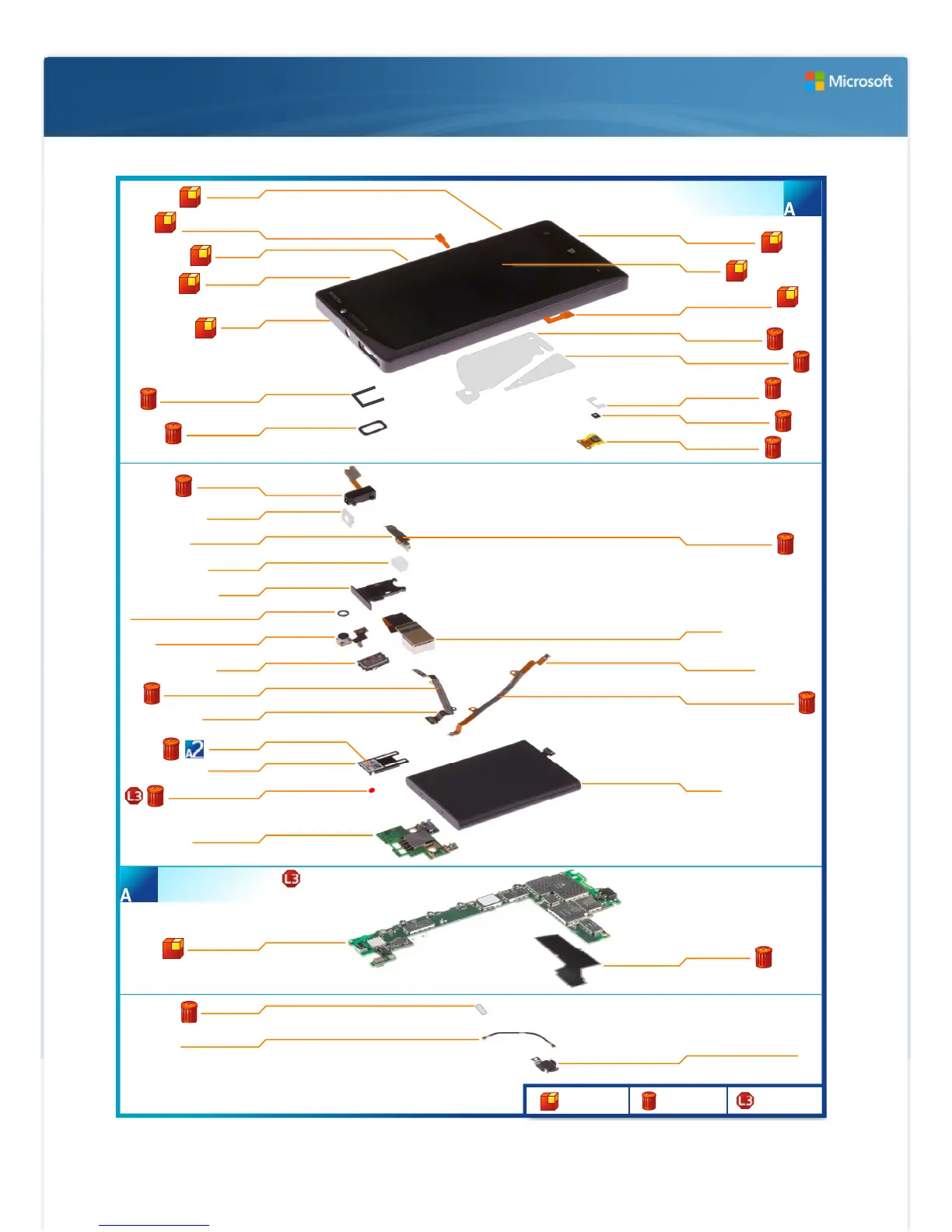

Exploded view
CHASSIS
I0004
HSJ ASSEMBLY
I0036
HSJ GASKET
I0037
JUMPER FLEX
I0026
MAIN ANTENNA LTE
COAX FLEX
I0005
VIBRA ASSEMBLY
I0019
DAUGHTER PWB GASKET
I0016
VIBRA BOOT
I0021
SIM TRAY
I0001
SKYPE CAMERA ASSEMBLY
I0017
EARPIECE
I0022
EARPIECE GASKET
I0015
JUMPER FLEX ADHESIVE
I0027
LABEL TRAY
I0024
WATER INGRESS LABEL
I0025
DAUGHTER PWB
I0035
LTE ADHESIVE
I0031
LIGHT SWAP PWB
I0038
LTE RF COAX CABLE
I0030
TYPE LABEL
I0040
SKYPE CAMERA WINDOW GASKET
I0018
CAMERA KEY
I0007
LOCK KEY
I0008
VOLUME KEY
I0009
SMALL BATTERY ADHESIVE
I0011
VIBRA FLEX ADHESIVE
I0020
PRIMARY MIC FLEX
I0012
PRIMARY MIC GASKET
I0013
MIMO COAX FLEX
I0028
BATTERY
I0032
HEAT SPREADER
I0039
BATTERY CONNECTOR STRAP
I0033
MIMO COAX FLEX ADHESIVE
I0029
CAMERA
I0023
BATTERY ADHESIVE
I0010
PRIMARY MIC FLEX
ADHESIVE
I0014
DISPLAY WINDOW
I0002
DISPLAY
I0003
MAIN ANTENNA VOICE
COAX FLEX
I0006
LIGHT SWAP PACKAGE
(I0038 - I0040)
2
CARE UI ASSEMBLY
(I0002 - I0016)
1
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
1/2
