Nokia Lumia 930 RM-1045 - Page 4

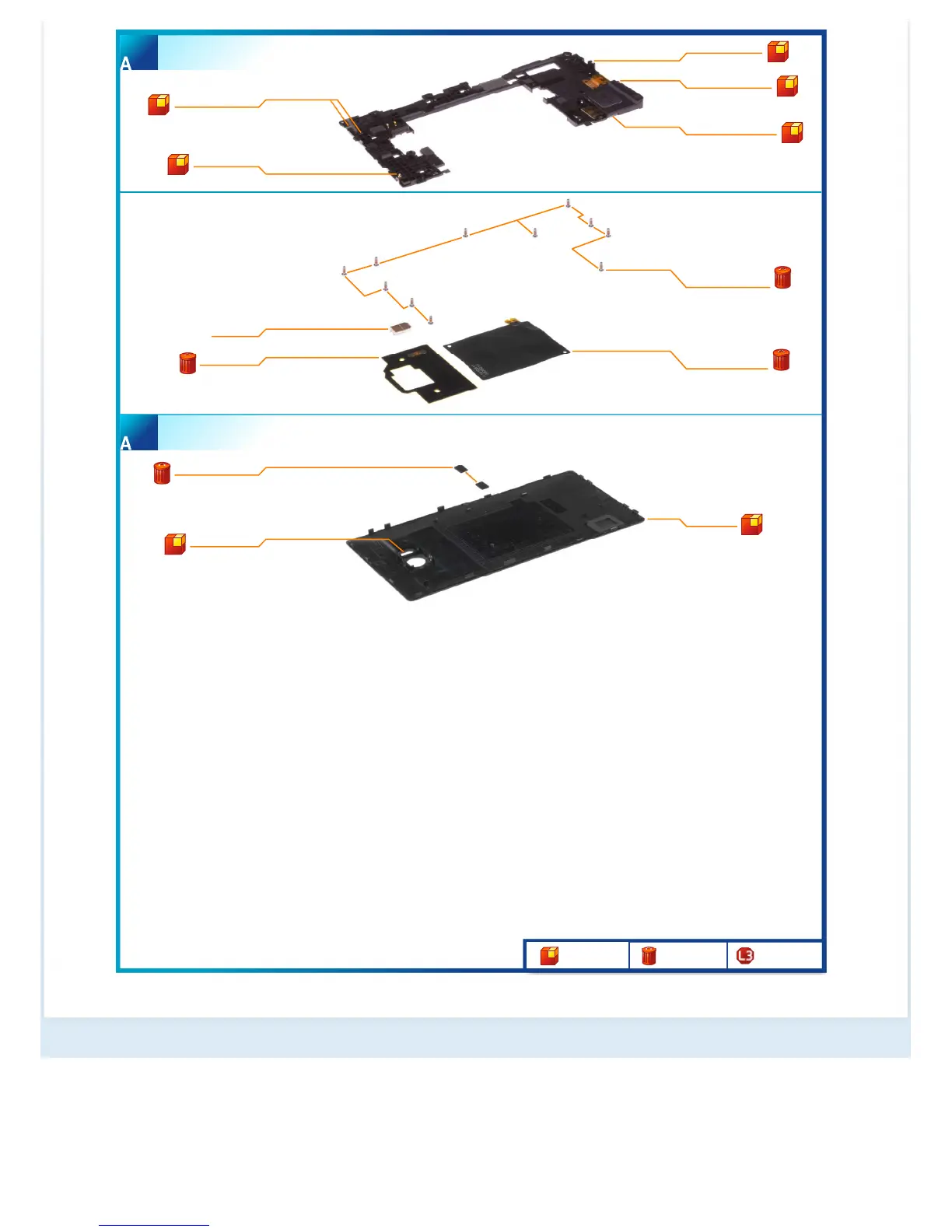

SCREW TORX+ SIZE 4
M1.4 X 3.8
I0034
GPS/WLAN ANTENNA
I0042
LED FLASH
I0049
NFC ANTENNA
I0051
BACK COVER GASKET
I0048
FLASH ADHESIVE
I0047
MIMO ANTENNA
I0043
IHF SPEAKER ASSEMBLY
I0041
MAIN ANTENNA LTE
I0044
MAIN ANTENNA VOICE
I0045
WIRELESS CHARGING
ASSEMBLY
I0050
BACK COVER
I0046
ENGINE COVER ASSEMBLY
(I0041 - I0045)
3
BACK COVER ASSEMBLY
(I0046 - I0048)
4
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
2/2
