Nokia Lumia 930 RM-1045 - Page 46

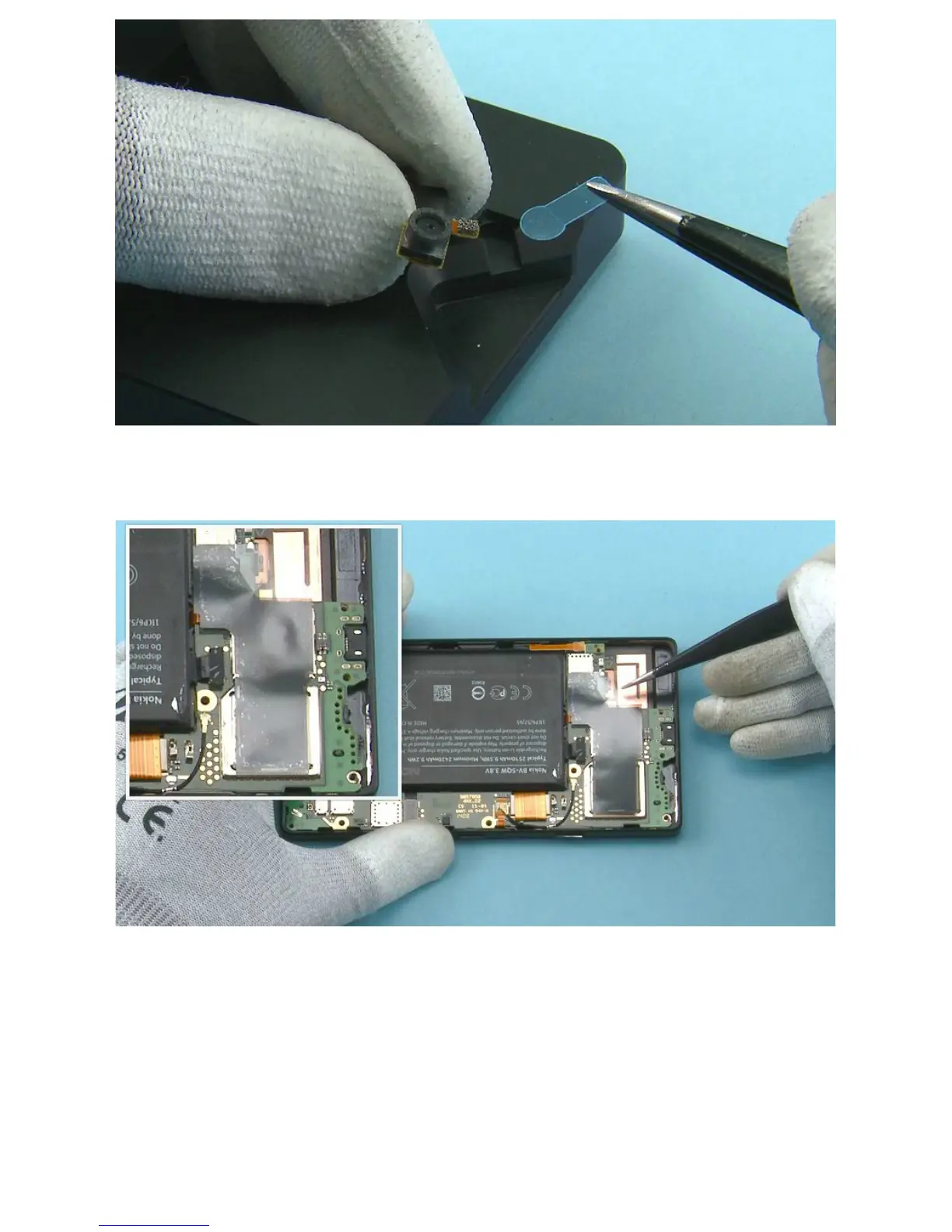

33) Remove the SKYPE CAMERA fom the jig and remove the protective film from the SKYPE CAMERA
GASKET.
34) Place the HEAT SPREADER on the ENGINE BOARD as shown. Use the edges of the shielding lids to get
the right alignment.
