GB 10

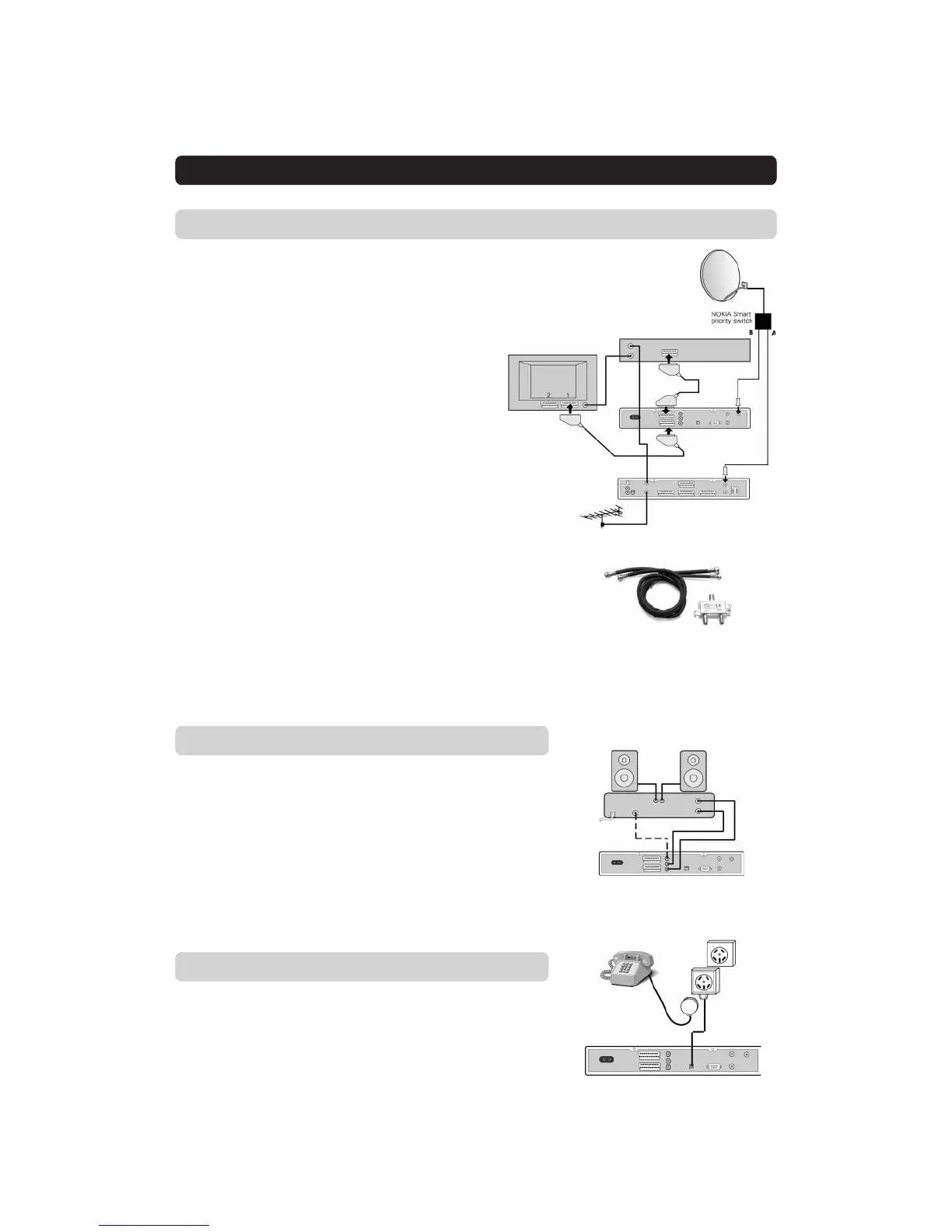

Connecting an Analogue Satellite Receiver and VCR
Nokia Smart switch
Connecting a HiFi System
• Connect an RCA/Cinch stereo cable from the AUDIO L R sock-
ets on the Mediamaster to the LINE, AUX, SPARE or EXTRA
input sockets on your HiFi system.
• If available you can connect an RCA/Cinch single cable from
the DIGITAL AUDIO socket on the Mediamaster to your HiFi
or Dolby Pro Logic system.
Note: To avoid interference you must use a screened audio
cable.
VCR
• Connect a SCART lead between the main SCART socket on
the TV and the TV SCART socket on the Mediamaster.
• Connect a SCART lead between the VCR and the AUX SCART
socket on the Mediamaster.
• Connect an RF lead from the RF output on the VCR to the TV
aerial input on the TV.
• Connect an RF lead from the RF output on the
Analogue receiver to the RF input socket on the
VCR.
• Connect the TV aerial to the RF input socket on the
analogue receiver.
In order to switch the signal from the dish between the ana-
logue and digital receivers, you need a Nokia Smart switch (at
A B in the diagram) or a Universal Twin LNB.
Nokia Smart switch
• Connect a coaxial cable between output A on the switch (ac-
cessory) to the LNB socket on the analogue receiver.
• Connect a coaxial cable between output B on the switch to
the socket marked ANTENNA on the Media-master.
The analogue receiver must be switched to OFF (standby)
when you want to watch digital satellite channels from
the Mediamaster.
With Nokia Smart
switch
Analogue receiver
Mediamaster
SCART
RF
Connecting to the built in phonemodem
The built in phone modem makes it possible for you to use inter-
active services.
• Connect the attached telephone cable between the socket
marked TELEPHONE on the rear of the Mediamaster and the
ordinary telephone socket in the wall.
CONNECTION OF THE MEDIAMASTER
