GB 8

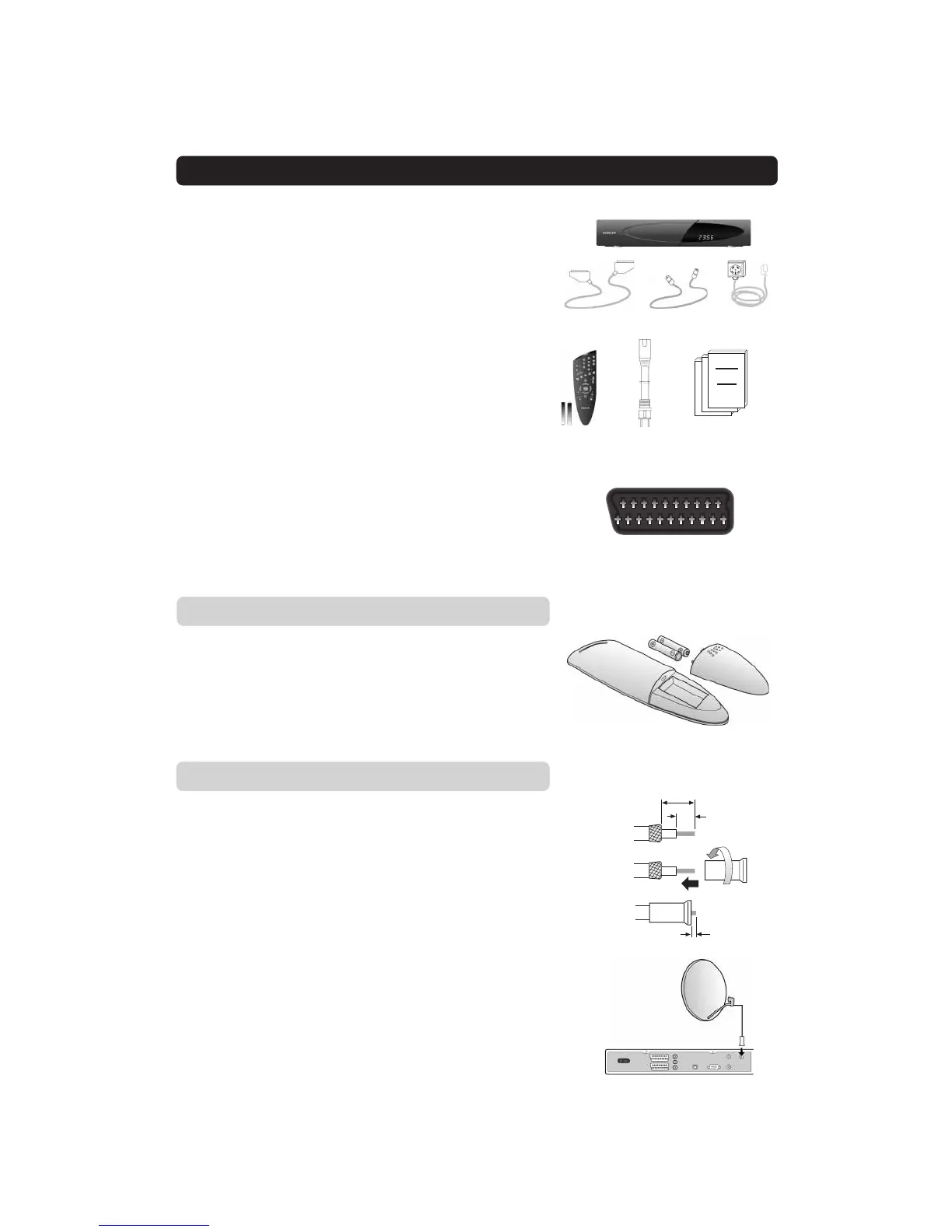

The box for your Mediamaster should contain the
following items:
• the Mediamaster
• a remote control with 2 AAA batteries
• a SCART lead (fully featured 1,0 metre)
• a mains lead
• an aerial/RF lead (double screened 1,5 metres)
• a cable to the telephone
• an Owner’s Manual (this document)
• a Software License agreement
• a quick guide
CONNECTION OF THE MEDIAMASTER
About the SCART sockets
The rear panel of the Mediamaster is equipped with 2 SCART
sockets (see diagram). When you connect other products to
any of these sockets, always use fully featured SCART leads
(as supplied). There are “less well specified” SCART leads on the
market and picture quality could be reduced if you use them.
SCART socket
SCART lead
Owner’s manual
License agreement
Quick guide
Phone
cable
RF lead
Preparing the Remote Control
• Remove the cover on the battery compartment at the bottom
of the remote control.
• Insert the 2 AAA (1,5 V) batteries, as shown in the diagram,
taking care to observe the + and - markings indicated inside.
• Replace the cover.
Installing the Satellite Dish
Connect the coaxial cable, with F-connectors fitted, from the LNB
on the satellite dish to the socket marked ”ANTENNA”on the rear
panel of the Mediamaster.
Connecting the Mediamaster to the Dish
If you need to fit the F-connectors onto the cable
• Prepare each end of the cable as shown in the diagram. You
will need to fold back the outer braid (as shown).
• Slide the F-connector onto the cable, then turn it clockwise
until it grips the braid.
• Ensure that 3 mm of the core is protruding from the end of the
connector.
8 mm
15 mm
3 mm
F-connector
Mains
lead
Remote
control
