Nokia MEDIAMASTER 9800 S - Mediamaster Installation Guide; Connecting the Mediamaster

GB 8

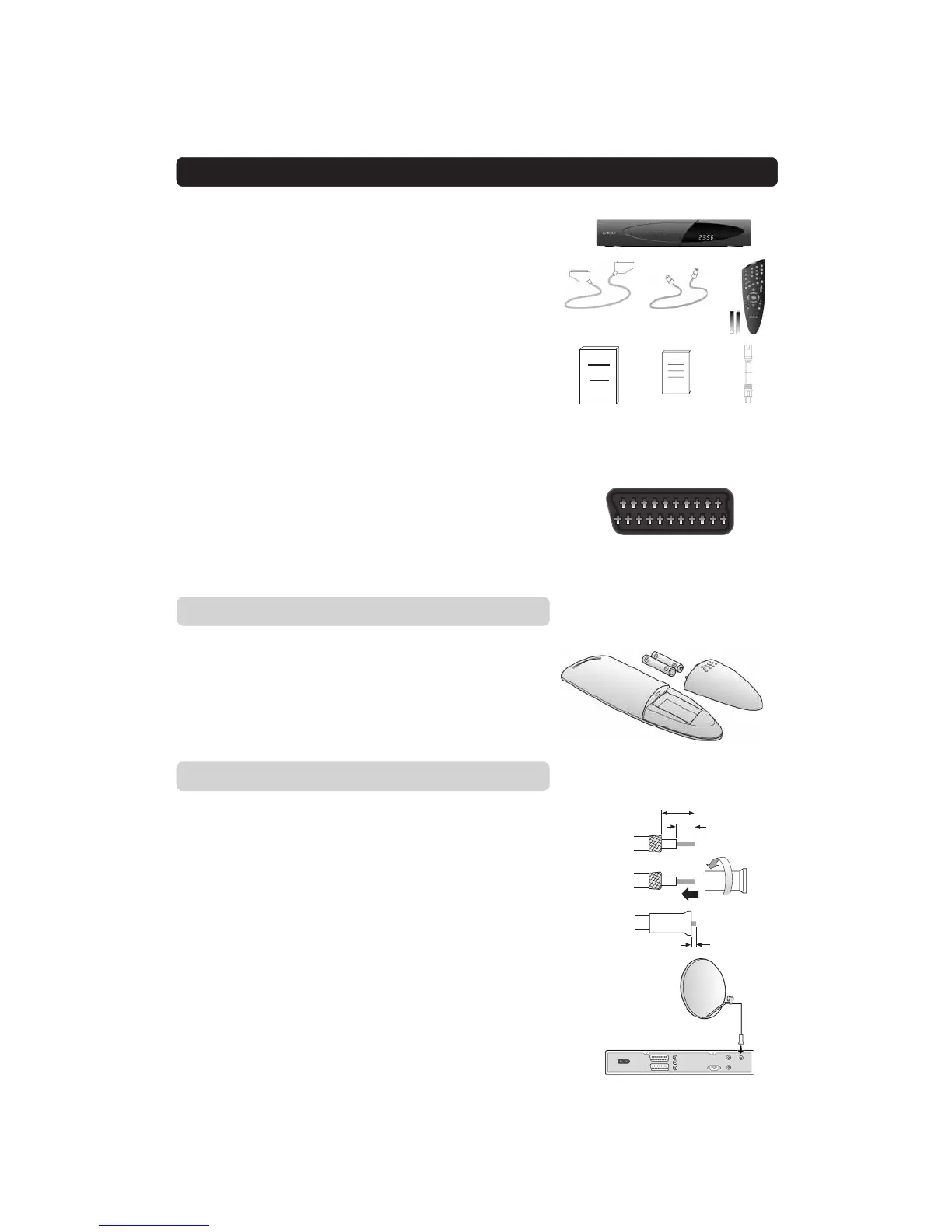

The box for your Mediamaster should contain the
following items:
• the Mediamaster
• a remote control with 2 AAA batteries
• a SCART lead (fully featured 1,0 metre)
• an aerial/RF lead (double screened 1,5 metres)
• an Owner’s Manual (this document)
• a Software License agreement
• mains cable
INSTALLATION OF THE MEDIAMASTER
About the SCART sockets
The rear panel of the Mediamaster is equipped with 2 SCART
sockets (see diagram). When you connect other products to
any of these sockets, always use fully featured SCART leads
(as supplied). There are “less well specified” SCART leads on the
market and picture quality could be reduced if you use them.
SCART socket
SCART lead
Owner’s manual License
agrement
RF lead
Preparing the Remote Control
• Remove the cover on the battery compartment at the bottom
of the remote control.
• Insert the 2 AAA (1,5 V) batteries, as shown in the diagram,
taking care to observe the + and - markings indicated inside.
• Replace the cover.
Installing the Satellite Dish
• See the ”Fitting instructions for satellite dish” on how to in-
stall the dish.
• Connect the coaxial cable, with F-connectors fitted, from the
LNB on the satellite dish to the socket marked ”ANTENNA”on
the rear panel of the Mediamaster (or e.g. a DiSEqC switch).
Connecting the Mediamaster to the Dish
If you need to fit the F-connectors onto the cable
• Prepare each end of the cable as shown in the diagram. You
will need to fold back the outer braid (as shown).
• Slide the F-connector onto the cable, then turn it clockwise
until it grips the braid.
• Ensure that 3 mm of the core is protruding from the end of the
connector.
8 mm
15 mm
3 mm
F-connector
Mains cable
