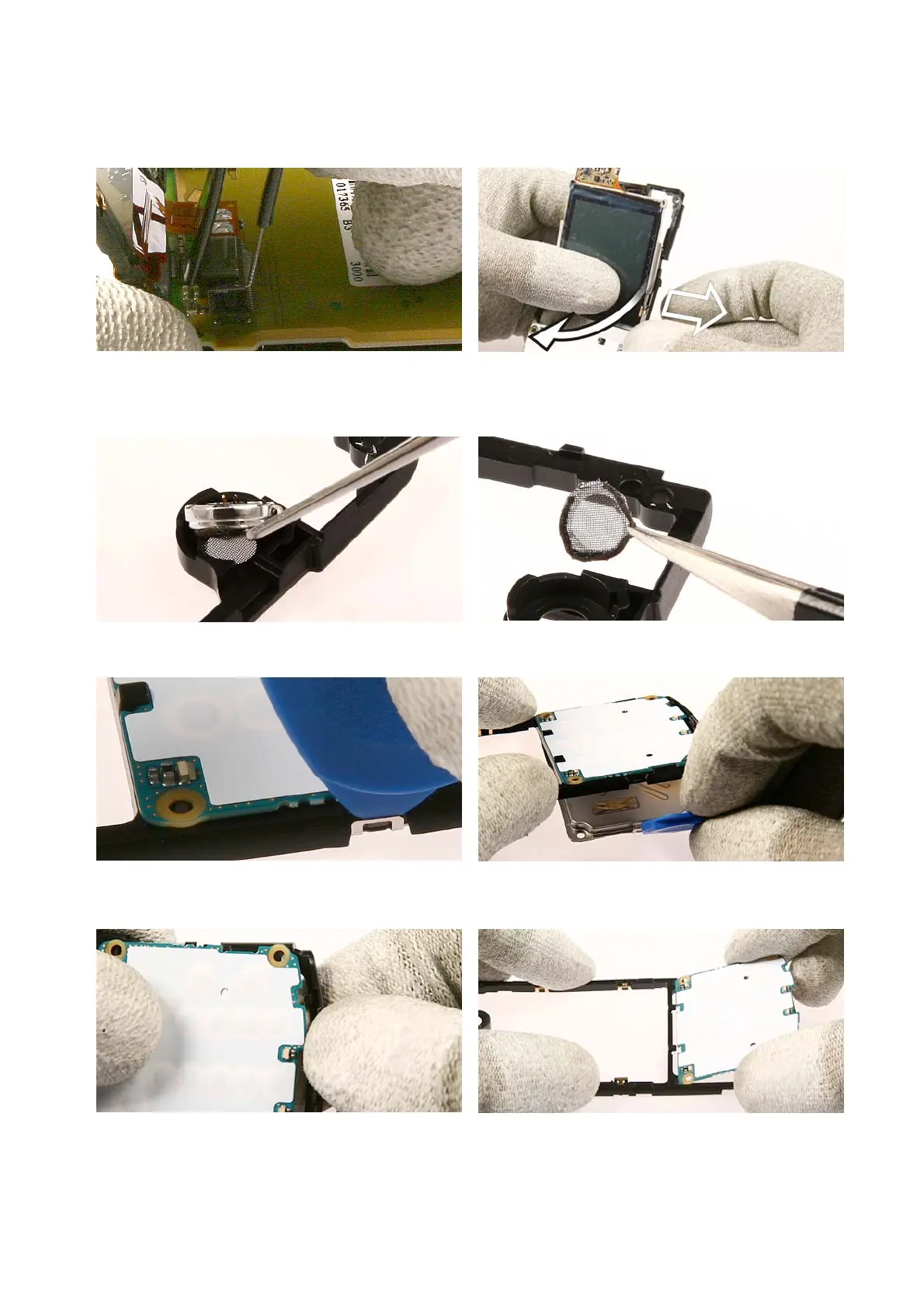

17.) Open the flex connector with the SS-34 flex
connector-opening tool. Mind the surrounding
components while placing the tool. Now the UI-Frame
Assy can be removed.
18.) Unlatch each clip of the LCD from the UI Frame
Assy carefully by pulling the UI Frame Assy sideward
while pushing the LCD forward.
19.) Remove the Earpiece with the dental tool
20.) Also remove the Earpiece Gasket from its
compartment. Always use a new gasket when
reassembling.
21.) Unlatch the BB shield Assembly first.
22.) Then push down and remove the BB Shield
Assembly. The shield can’t be reused again, always use
a new one.
23.) Pull the UI Frame Assy slightly to unlock the UI
PWB.
24.) Now the UI PWB can be removed easily.
