Nokia N73 Service Schematics

Customer Care / Service Operations / Content Creation Team
Condential Copyright © 2006 NOKIA Only for training purposes Version: 1.0 | 27.06.2006 | N73 | Board version: 1SU_11 | | Page (10)

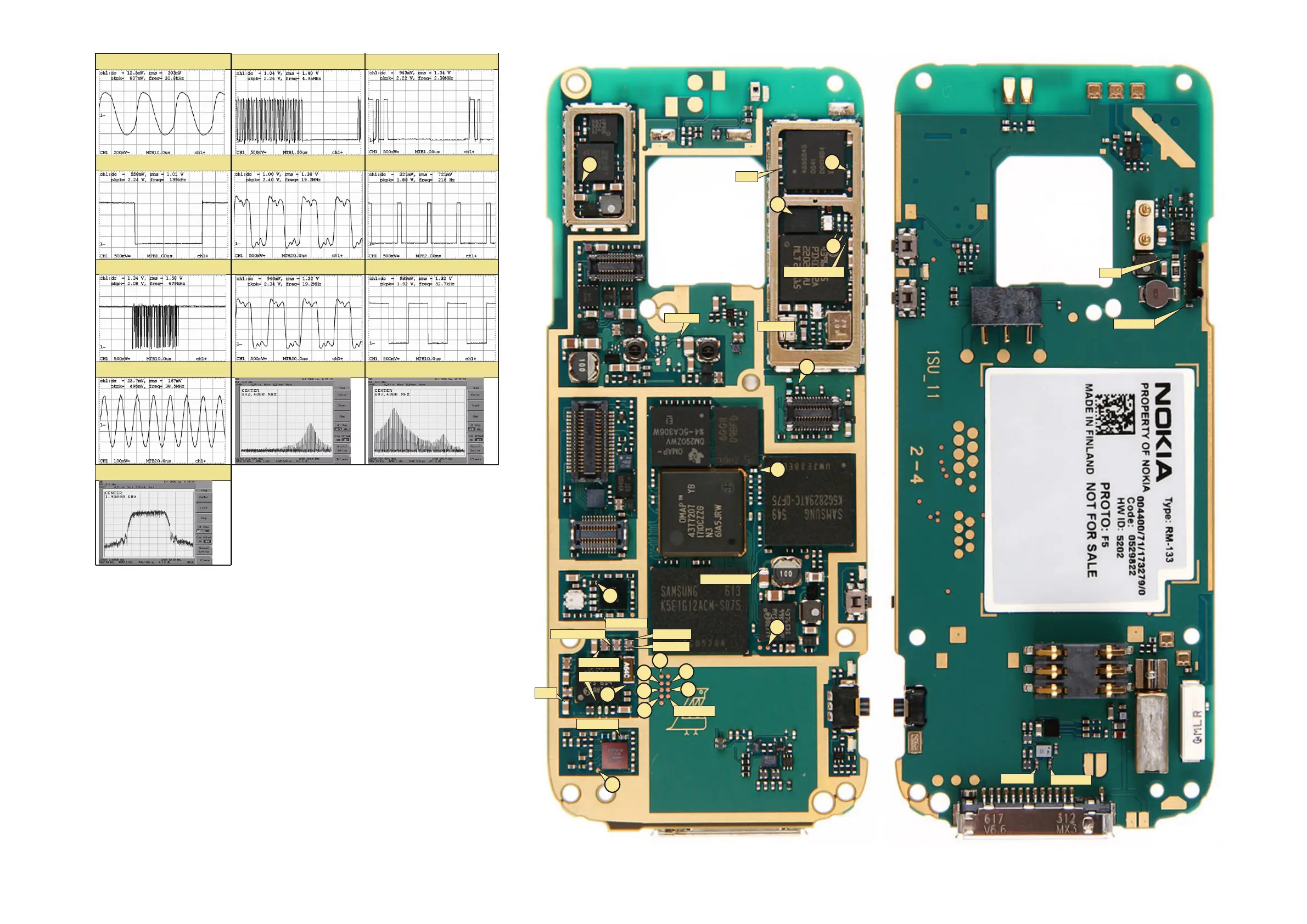

Signal overview
12)TX signal at Z7500 & L7606
11)RX signal at C7504 & C7507
10) RFCLKEXT at C9088
9) SleepClk at J7607
8) SYSClk at L9057
7) TxCDa at J2212 (TXC)
6) TxCCtrl at J2211 (TXC)
5) TxCClk at J2210 (TXC)
4) SerSelX at J2209 (CBUS)
3) SerData at J2207 (CBUS)
2) SerClk at J2206 (CBUS)
1) 32.768kHz at B2200
13) WCDMA TX signal at C7512
1
2
3
4
5
6
7
PURX=1.8V
8
9
9
9
PURX=1.8V
10
11
12
12
13
VOUT=2.5V
VBUS=5V
VBAT
VANA=2.8V
VAUX=2.8V
VANA=2.5V
VBAT
VAUX=2.8V
VIOVILMA=1.8V
VR1=2.8V
VRFC=1.8V
VCORE=1.35V
VIO=1.8V
VBAT
VREFRF01=1.35V
VR1=2.8V

Nokia N73 Specifications

General

Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	262144 colors
Internal memory	42 MB
Compatible memory cards	miniSD
Sensor type	CMOS
Digital zoom	20 x
Front camera type	Single camera
Rear camera resolution	2048 x 1536 pixels
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Talk time (2G)	4.1 h
Standby time (2G)	370 h
Continuous audio playback time	12.6 h
Continuous video playback time	6.1 h
Ringer type	Polyphonic
Form factor	Bar
Product color	-
2G standards	EDGE, GPRS
Data network	wcdma
Bluetooth version	2.0+EDR
Personal info management (PIM)	Calendar, Notes, To-do list

Weight and Dimensions

Depth	19 mm
Width	49 mm
Height	110 mm
Weight	116 g
