Nokia N79

N79 RM-348 / RM-349 / RM-350
Service Manual Level 1&2
ISSUE 1
Confidential
19

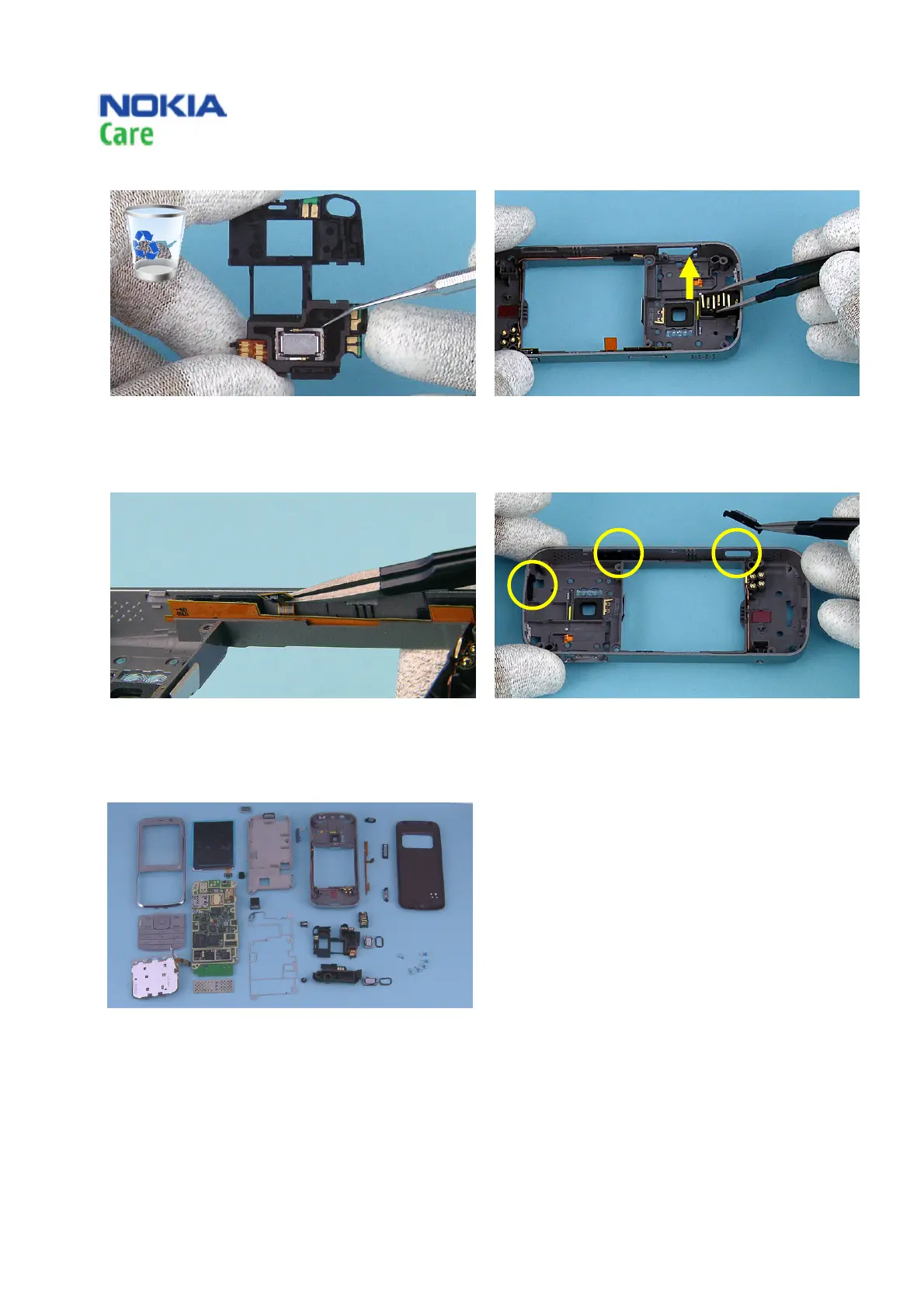

43) Lift up the ANTENNA TOP ASSEMBLY and remove it.
Use the dental tool to remove the IHF SPEAKER and the
IHF GASKET.
44) Remove the AV JACK.
45) Lift up the SIDE KEY FLEX with the tweezers and
remove it.
46) Use the tweezers to remove the SHUTTER KEY, the
VOLUME KEY and the POWER KEY.
47) The Nokia N79 disassembly is now complete.
