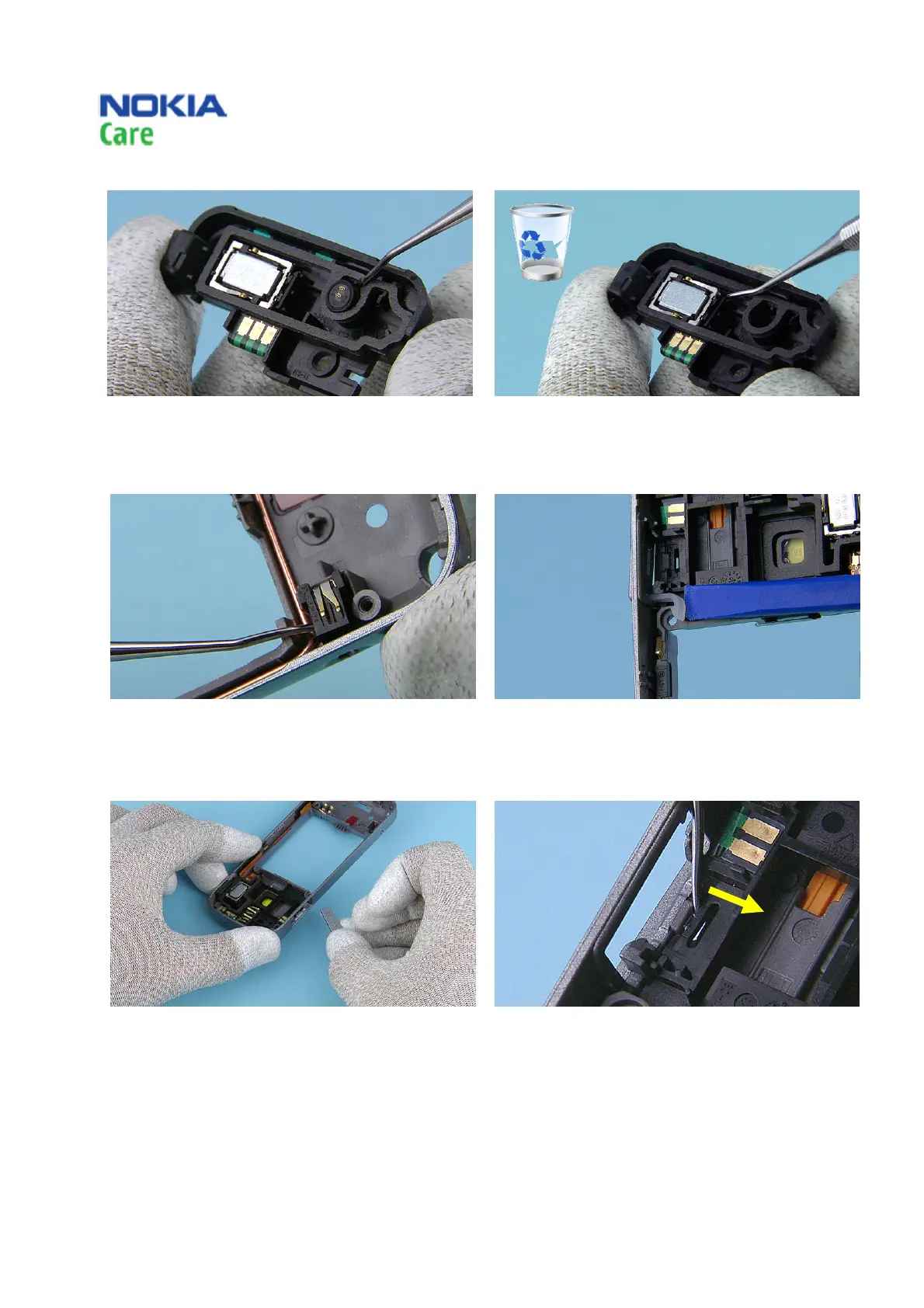

37) Use the dental tool to remove the MIC. Be careful to
not to injure yourself with the sharp dental tool.
38) Remove the IHF SPEAKER and the IHF GASKET with
the dental tool.
39) Use the dental tool to remove the DC JACK. 40) Use the SS-93 to lift up the clip of the SD CARD
DOOR.
41) Remove the SD CARD DOOR. 42) Use the dental tool as shown to release a small clip
near the SD CARD DOOR in order to release the
ANTENNA TOP ASSEMBLY.
