Nokia N79

N79 RM-348 / RM-349 / RM-350
Service Manual Level 1&2
ISSUE 1
Confidential
17

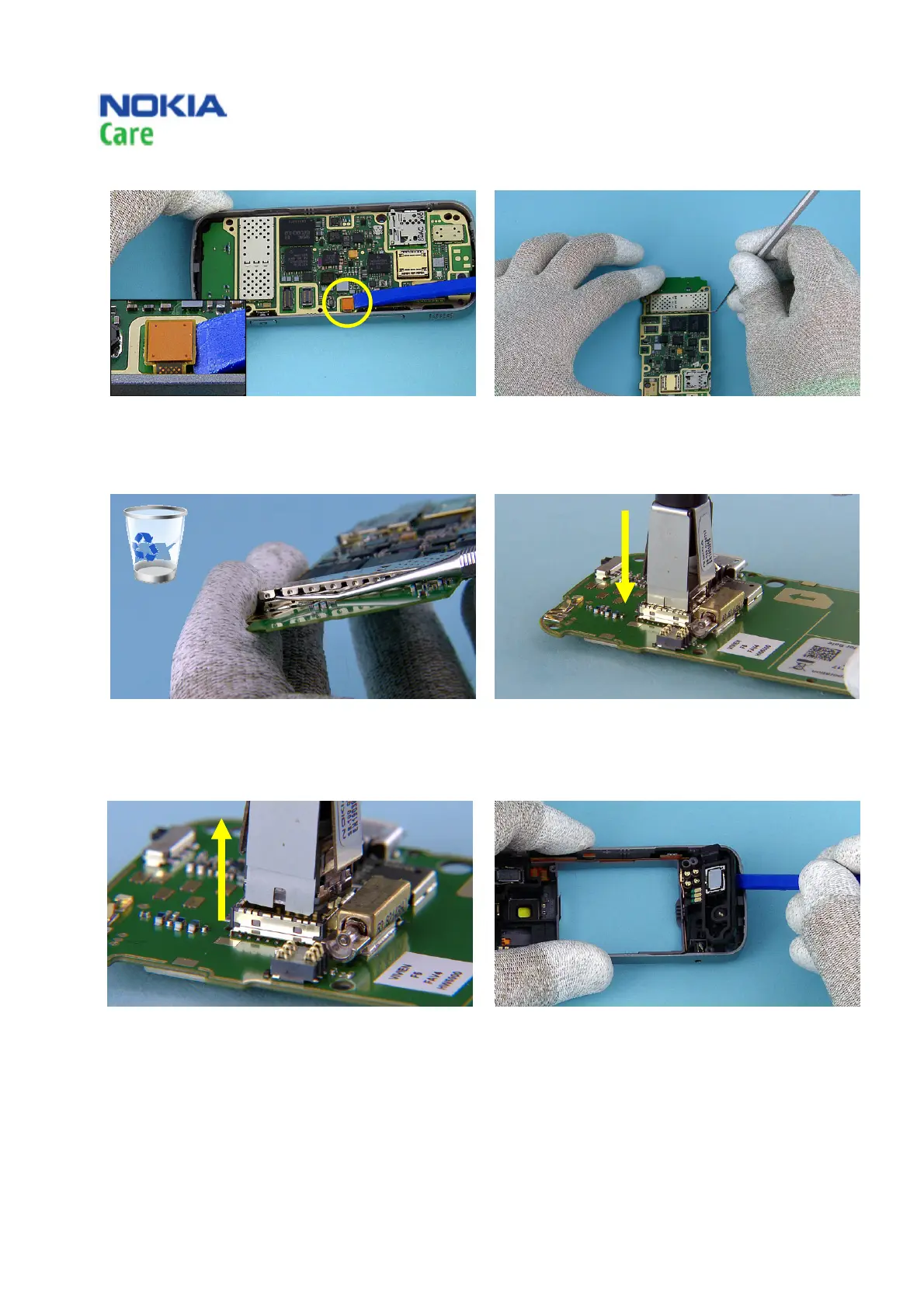

31) Open the SIDE KEY FLEX ASSY connector using the SS-
93 and remove the PWB.
32) Use the dental tool as shown...
33) … to remove the RF LID. Be careful to not to injure
yourself with the sharp dental tool.
34) Push the camera removal tool SS-100 down until
the camera retaining clips are released.
35) Lift up the SS-100 and remove the CAMERA. 36) Use the SS-93 to lift up the ANTENNA MAIN
ASSEMBLY and remove it.
