N79 RM-348 / RM-349 / RM-350
Service Manual Level 1&2
ISSUE 1
Confidential
16

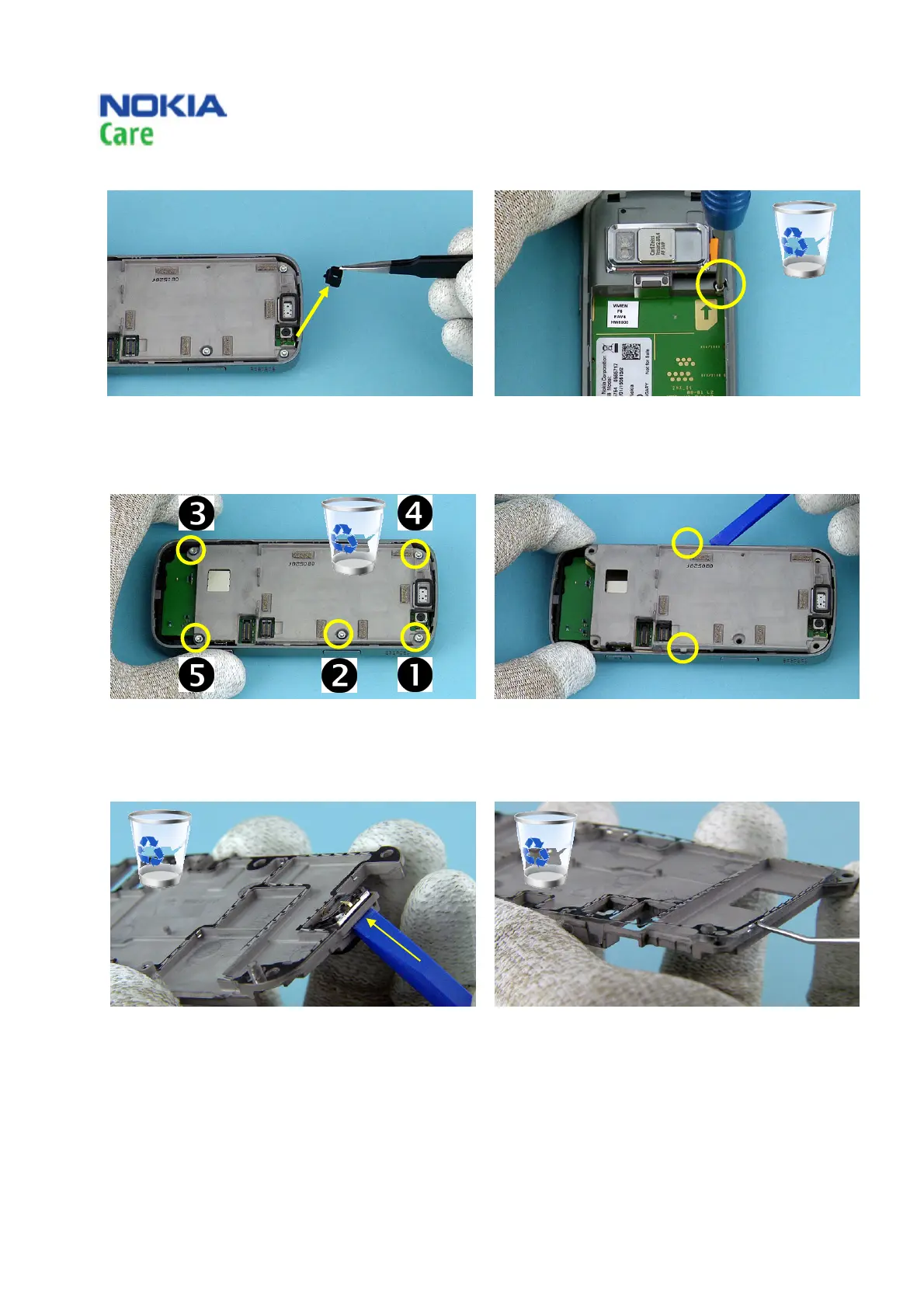

25) Remove the CAMERA BOOT. 26) Unscrew the single Torx® Plus size 6 screw.
27) Unscrew the five Torx® Plus size 6 screws in the
order shown.
28) Use the SS-93 to release the CHASSIS ASSEMBLY and
remove it.
29) Carefully loosen up the adhesive on the EARPIECE as
shown and remove the EARPIECE.
30) Carefully open all the small clips on the GND GASKET
using the dental tool. Remove the GND GASKET. Be
careful to not to injure yourself with the sharp dental
tool.
