N85, RM-333, RM-334, RM-335
Service Manual Level 1&2
ISSUE 1
Confidential
12

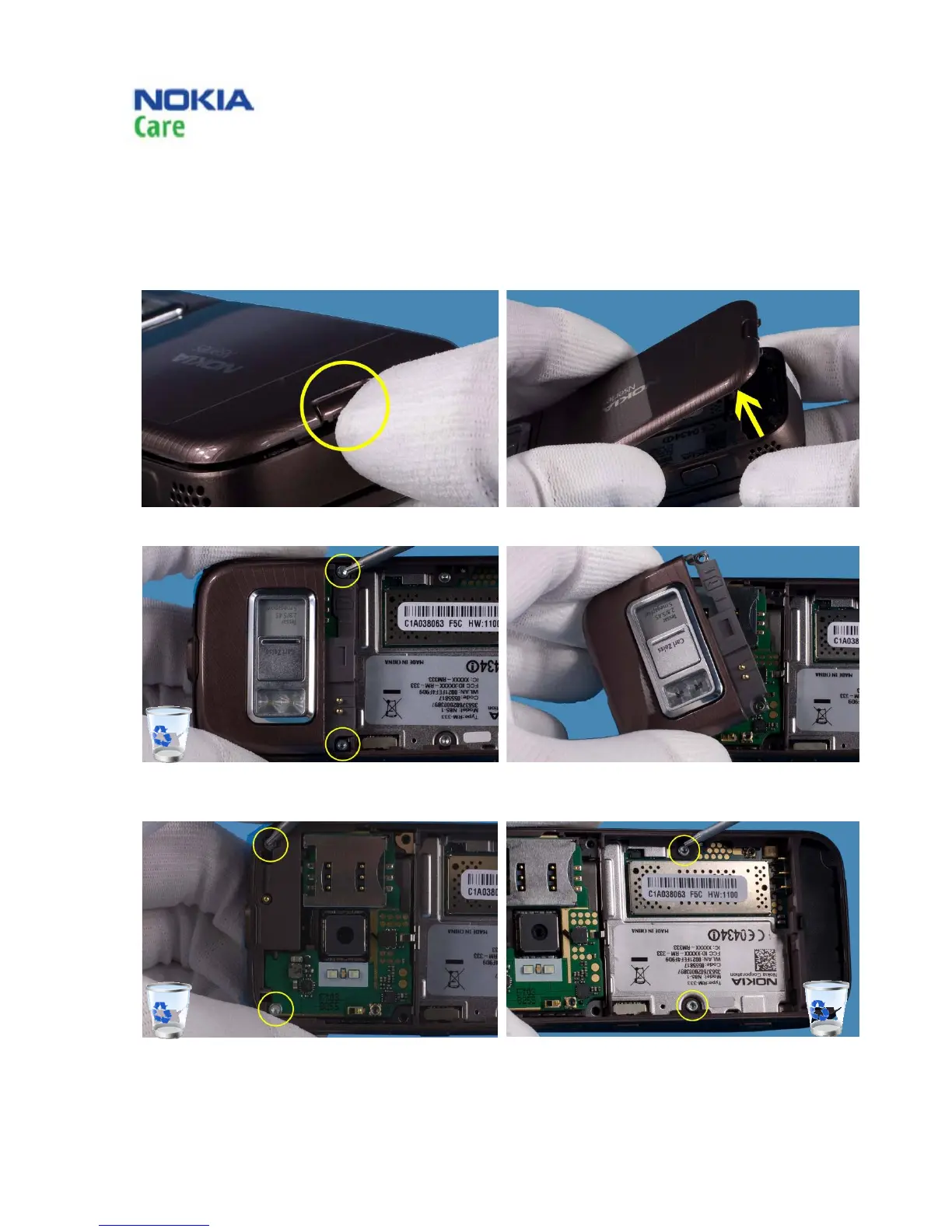

10. DISASSEMBLY INSTRUCTION
1) Push button and unlock the BATTERY COVER. 2) Lift up and remove the BATTERY COVER.
3) Unscrew the two screws using a TORX 6+
screwdriver.
4) After releasing the screws remove the BACK
COVER.
5) Use TORX 6+ screwdriver to unscrew the two
screws.
6) Unscrew the two screws with a TORX 4+
screwdriver.
Copyright @ 2008 NOKIA. All rights reserved
