N85, RM-333, RM-334, RM-335
Service Manual Level 1&2
ISSUE 1
Confidential
14

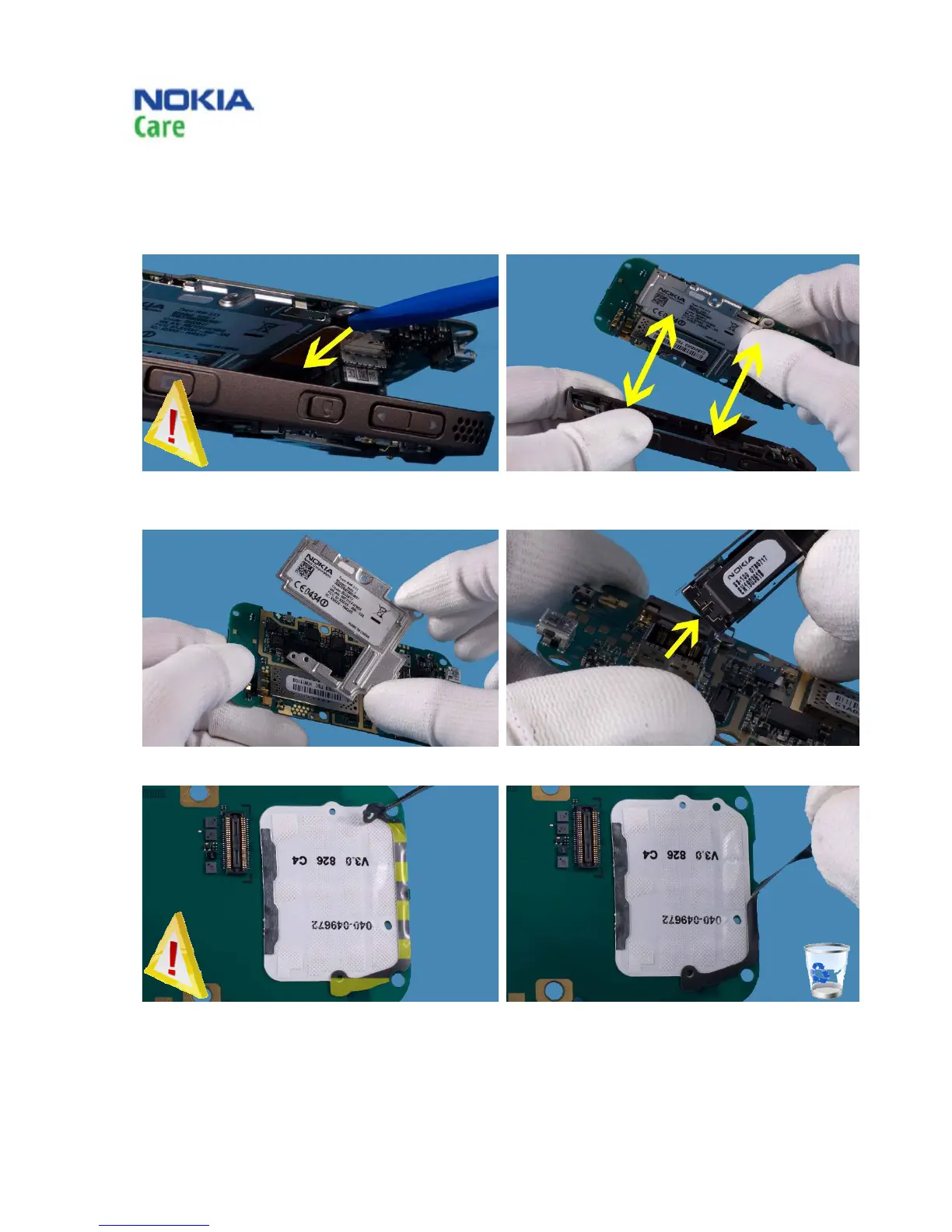

13) Carefully lift up the PWB and open the
connector using SS-93 tool.
14) Remove the PWB.
15) Separate the BB SHIELD from PWB. 16) Remove the CAMERA with SS-100 tool.
17) Use a dental pick to release the LIGHT BLOCK
TAPE.
18) Peel off LIGHT BLOCK TAPE. Do not use it again.
Copyright @ 2008 NOKIA. All rights reserved
