6212 classic R
M-396
Service Manual Level 1&2
ISSUE 1
Confidential
14

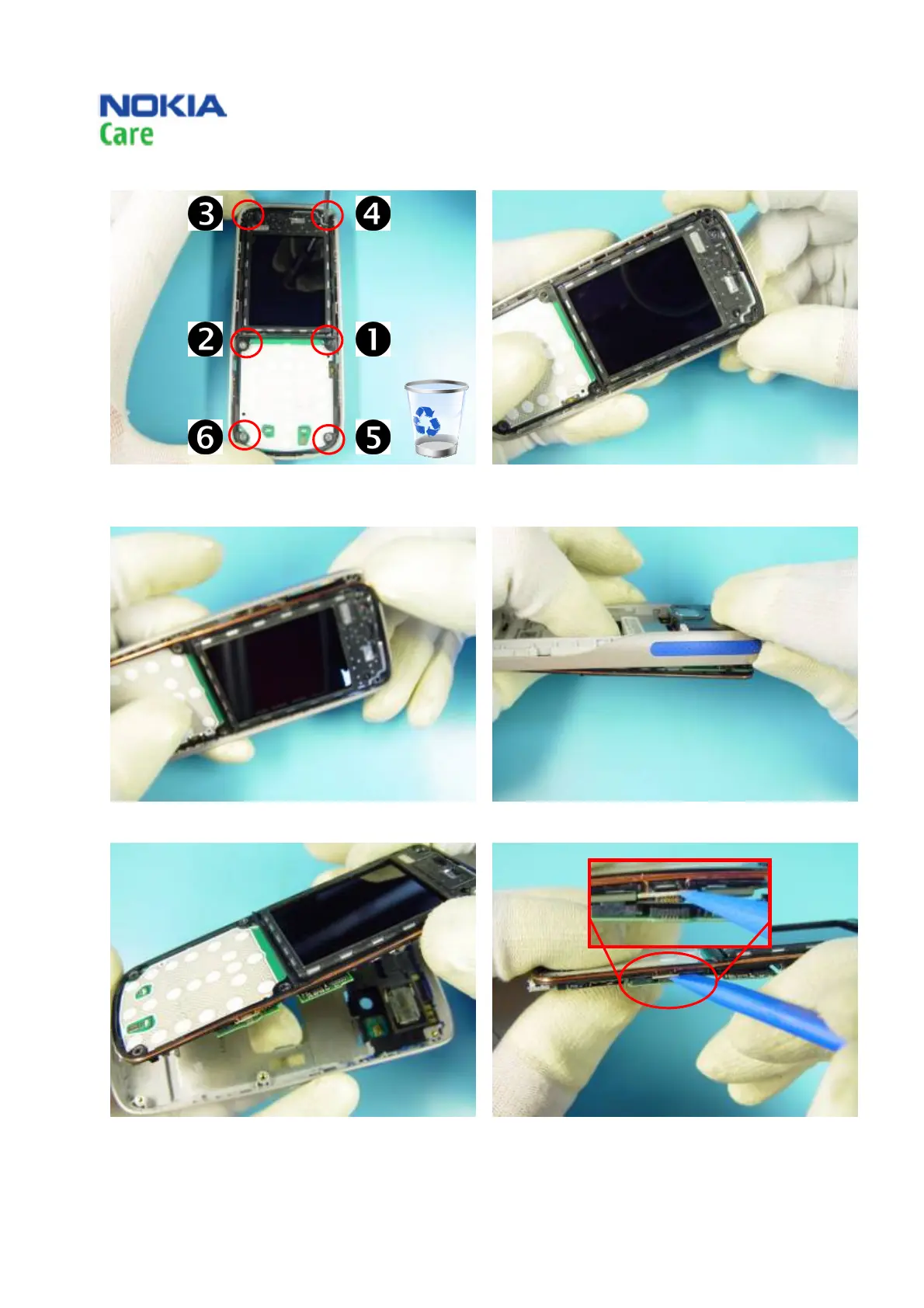

13) Unscrew the six T6+ s
crews in the order
shown and discard them.
14) Release the PWB.
15) Release the NFC ANTENNA MODU
LE and LCD
SHIELD.
16) Release the LCD.
17) Remove the PWB assembly.
18) Open
the connector of the 2PD NFC MODULE.
Copyright @ 2008 NO
KIA. All rights reser
ved
13
15
Table of Contents
Table of Contents
2
Change History
3
Copyright
4
Warnings and Cautions
5
Warnings
5
Cautions
5
ESD Protection
6
Care and Maintenance
7
Battery Information
8
Exploded View
9
Service Devices
10
SW-Update
11
Disassembly Instruction
12
Assembly Hints
18
Solder Components
19
