Nokia RM-469 - 10 Disassembly Instructions

E52 RM-469, RM-481
Service Manual Level 1&2
13 CONFIDENTIAL

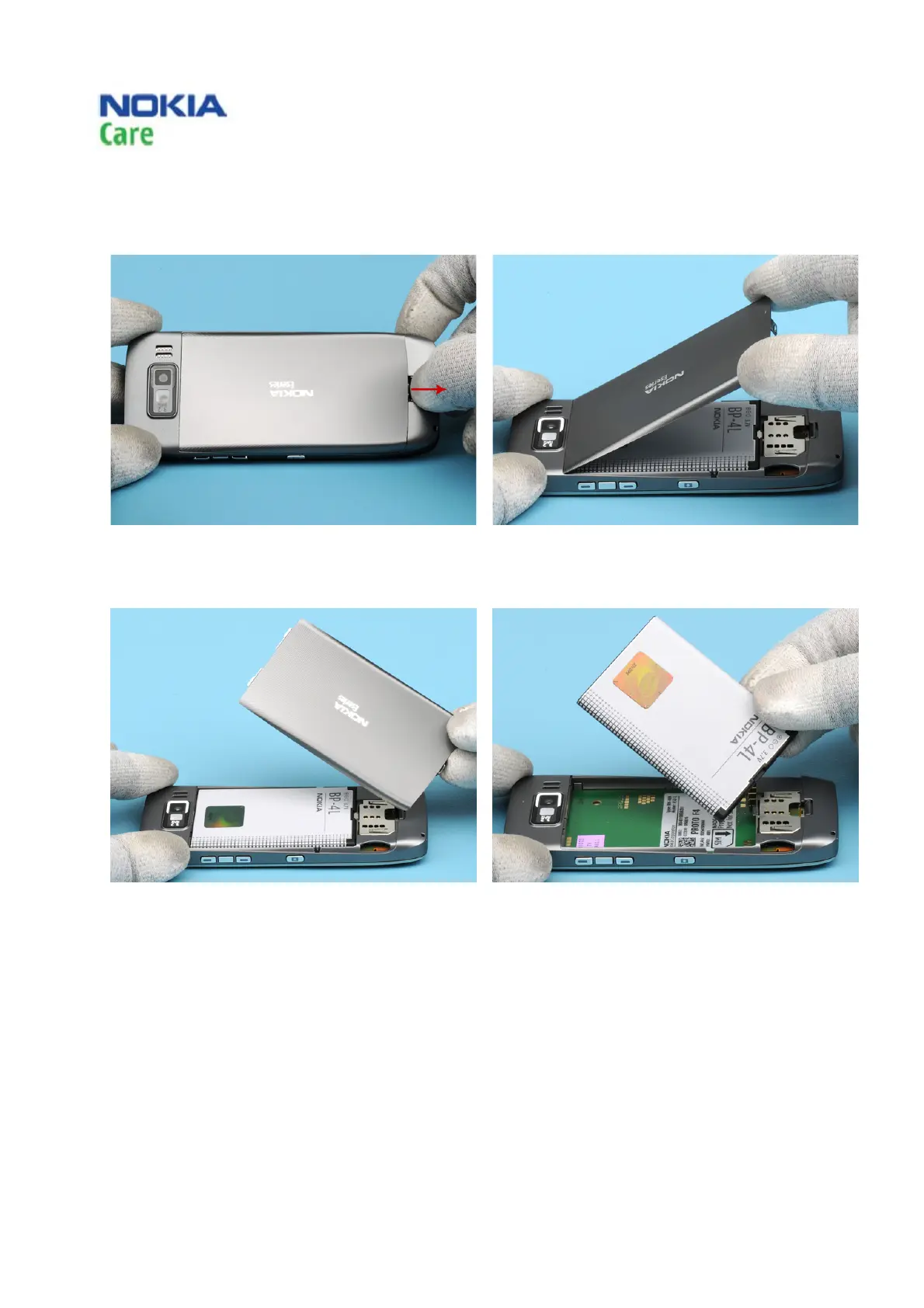

10. DISASSEMBLY INSTRUCTIONS
1
2
Slide the BATTERY COVER release button to the
direction shown in the picture.
Lift up the BATTERY COVER and…
3
4
…remove it. Remove the battery.
Issue 1 Copyright © 2008 NOKIA. All rights reserved.
