E52 RM-469, RM-481
Service Manual Level 1&2
24 CONFIDENTIAL

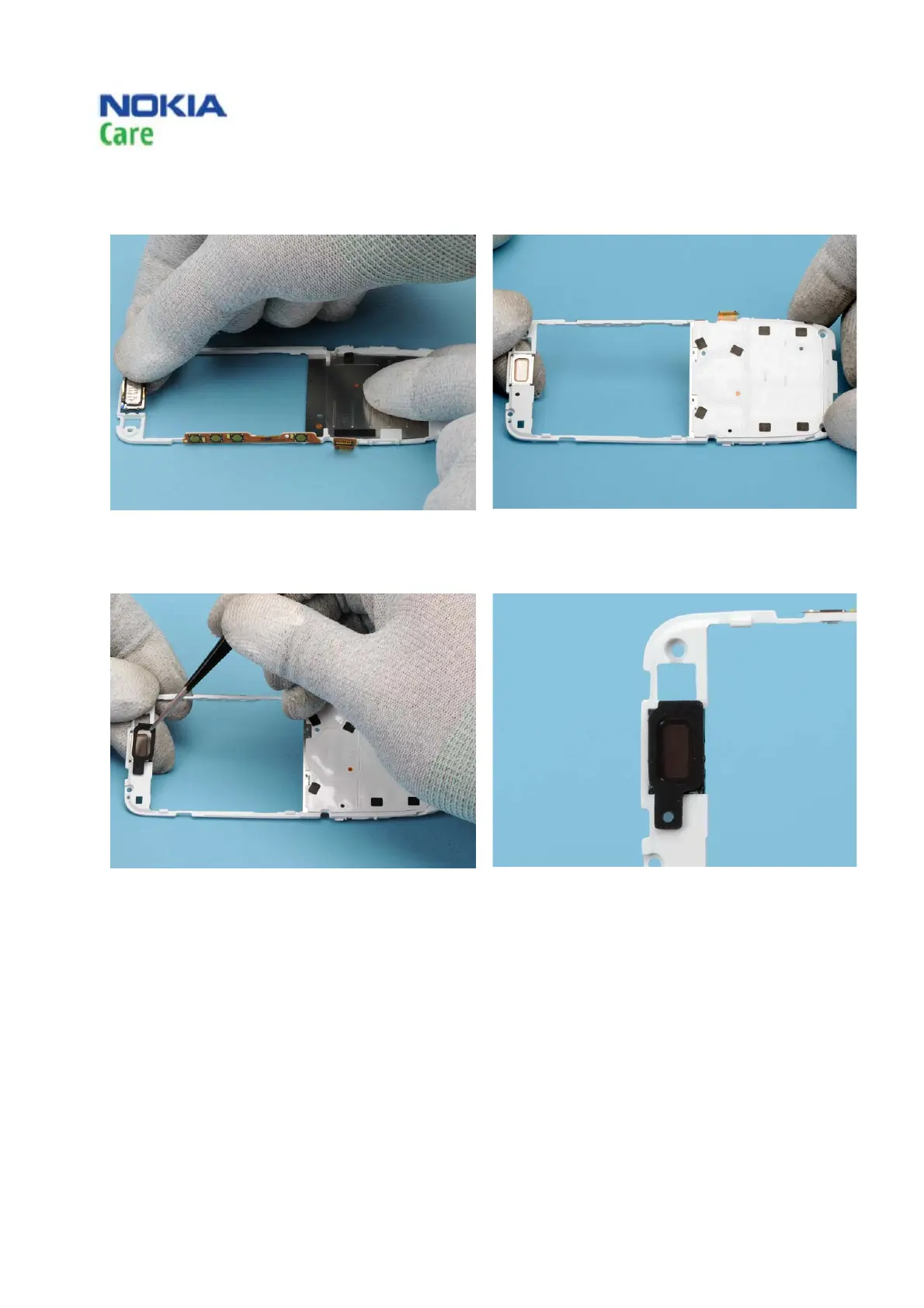

11.2 Assembling the earpiece and earpiece gasket
1
2
Assemble the EARPIECE in place. Turn the UI FRAME ASSYover and support the
EARPIECE with your fingers to keep it in place.
3
4
Assebmle the EARPIECE GASKET in place with the
help of the positioning hole in the GASKET.
This is the position of the EARPIECE GASKET in
place.
Issue 1 Copyright © 2008 NOKIA. All rights reserved.
