Nokia RM-608 Service Manual

Nokia C1-
02
RM-643 / RM-644
Service Manual Level 1&2
14 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

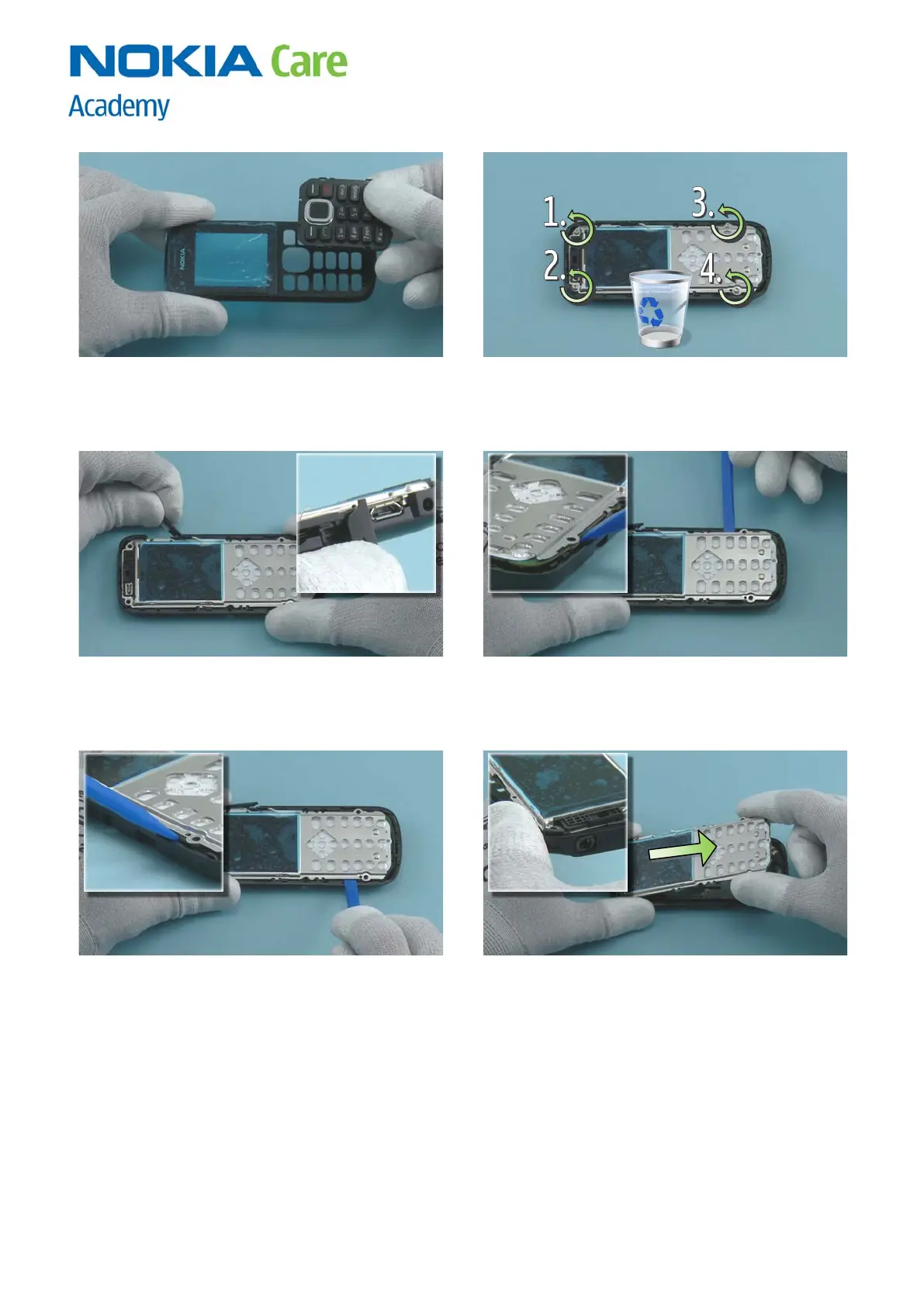

13) Remove the KEYMAT.
14) Unscrew the four Torx+ size 6 screws. Do not use
them again. Discard them.
15) Open the USB DOOR. 16) Use the SS-93 to release the shown side of the
ENGINE BOARD.
17) Release also the other side with the SS-93. 18) Lift up the bottom end of the ENGINE BOARD and
then pull it to direction shown. By using this
procedure, the AV JACK in the top part of the device is
released properly.
