Nokia X2-01 - Page 13

Nokia X2-
01
RM-709/RM-717
Service Manual Level 1&2
13 Confidential | Copyright © 2010 Nokia | All rights reserved Version 2.0

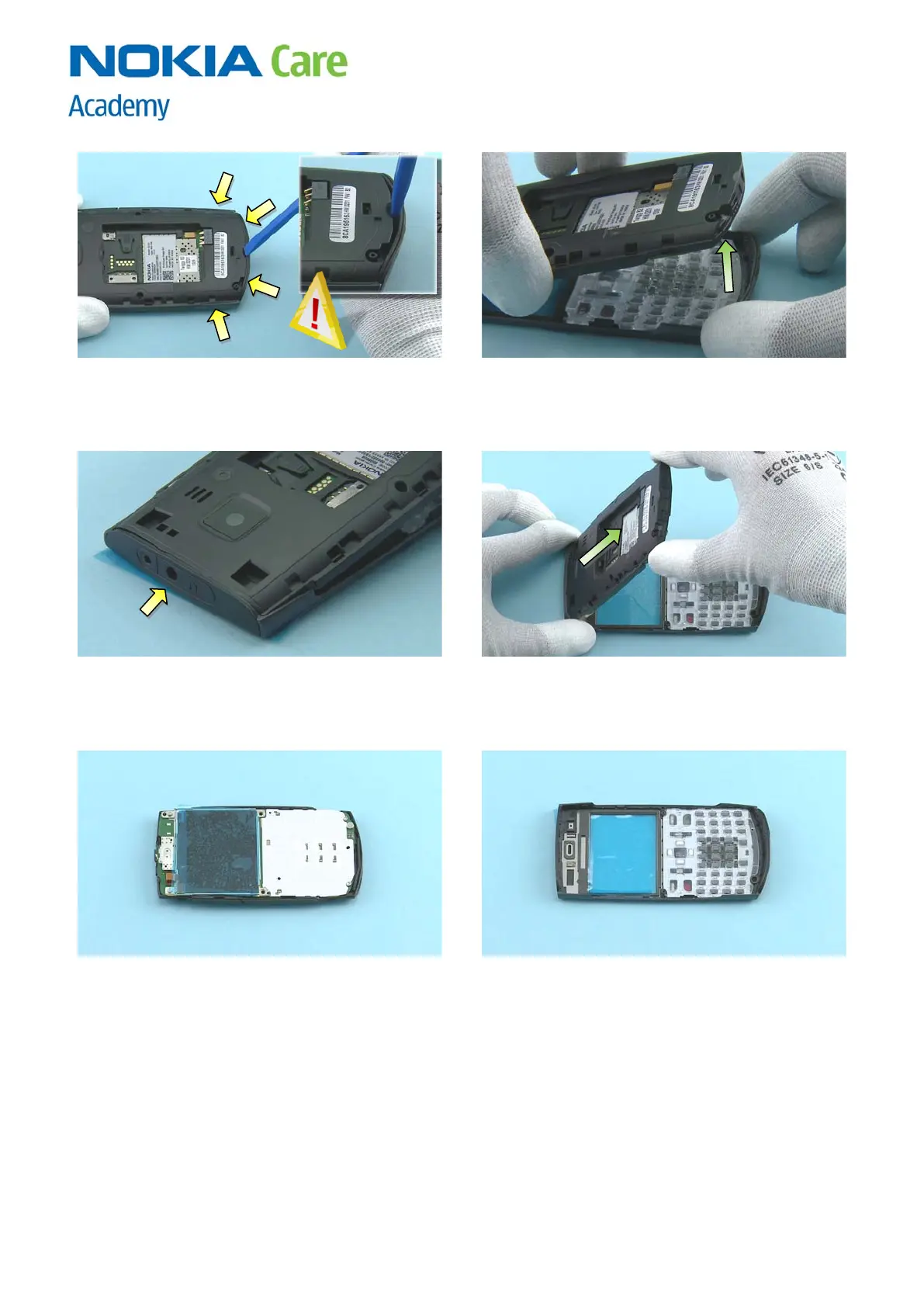

7) Insert the SS-93 between the A-COVER and the D-
COVER. Use the SS-93 to detach all clips holding the
covers together. Be careful not to damage the A-
COVER.
8) Lift up the D-COVER from the bottom side.
9) This is to prevent damage to the connectors on
the top side.
10) Remove the D-COVER as shown.
11) Protect the DISPLAY with protective film. 12) Protect the inside of the A-COVER with protective
film.
