Nokia X2-01 Service Manual

Nokia X2-
01
RM-709/RM-717
Service Manual Level 1&2
12 Confidential | Copyright © 2010 Nokia | All rights reserved Version 2.0

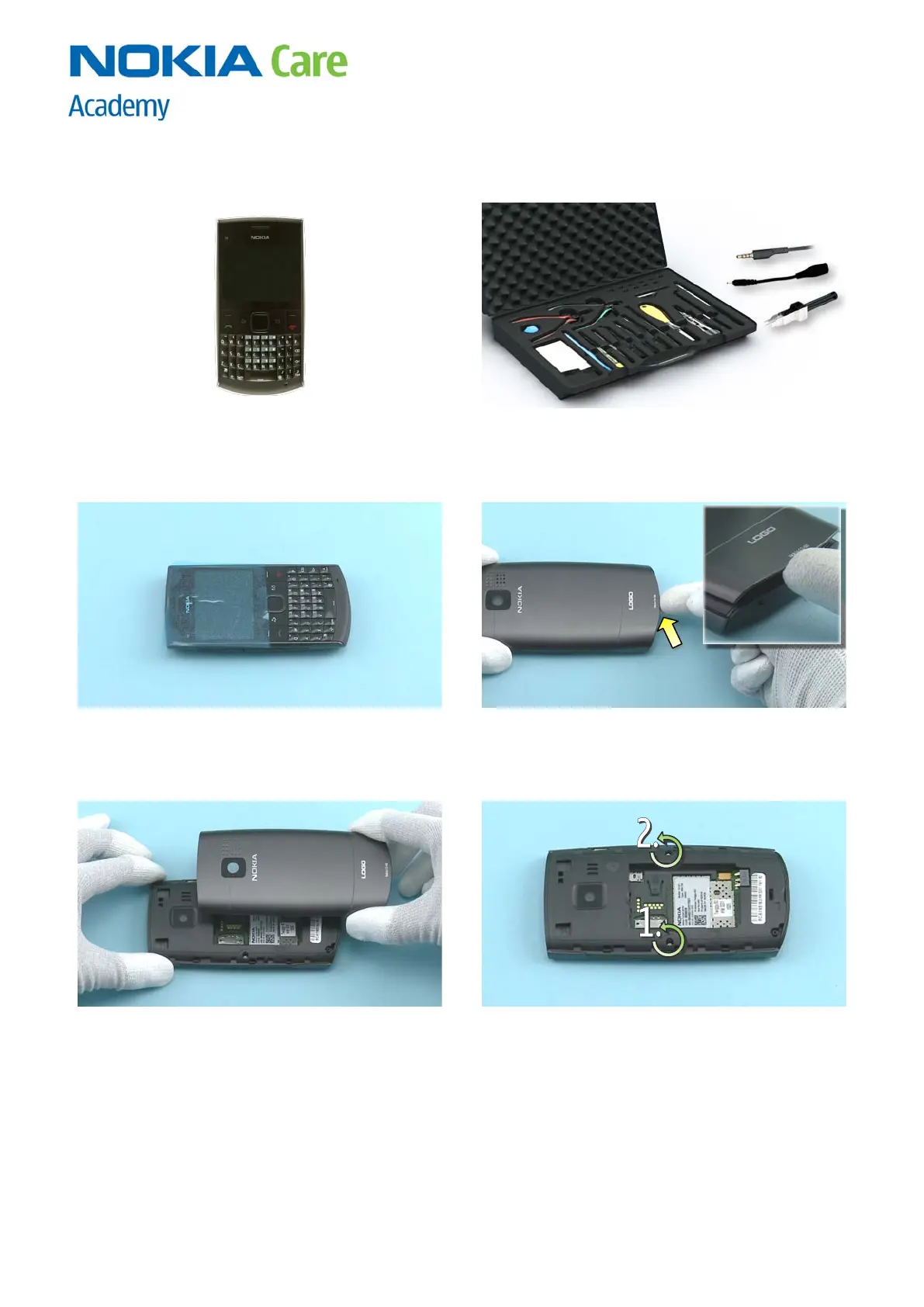

9. DISASSEMBLY INSTRUCTIONS
1) Nokia X2-01 disassembly. 2) For disassembling you need the Nokia Standard
Toolkit version 2, camera removal tool SS-88, a DC
plug and an AV plug.
3) Protect the A-COVER with protective film. 4) Detach the bottom end of the B-COVER with the tip
of your finger as shown.
5) Remove the B-COVER. If there is a battery inserted,
remove it also.
6) Unscrew the two TORX+ size 4 screws in the order
shown.

Nokia X2-01 Specifications

General

Display Type	TFT, 256K colors
Display Size	2.4 inches
Resolution	320 x 240 pixels
RAM	64 MB
Expandable Storage	microSD, up to 16 GB
Main Camera	VGA
Battery Capacity	1020 mAh
Stand-by	Up to 480 h
Talk time	Up to 4 h 30 min
Operating System	Series 40
Dimensions	119.4 x 59.8 x 14.3 mm
Network Technology	GSM
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 32
EDGE	Class 32
Announced	2010, November
Status	Discontinued
SIM	Mini-SIM
Keyboard	QWERTY
Alert types	Vibration, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	Yes
Phonebook	Yes, Photocall
Call records	Yes
Video	Yes
Radio	Stereo FM radio, RDS
USB	microUSB 2.0
Messaging	SMS, MMS, Email, IM
Browser	WAP 2.0/xHTML, HTML
Java	Yes, MIDP 2.1
Battery Type	Li-Ion
Weight	107.5 g
Games	Yes
Features	Predictive text input, Organizer
Colors	Red
