Service Manual Level 1 and 2
Nokia XL Dual SIM
RM-1030, RM-1042
Version 1.0

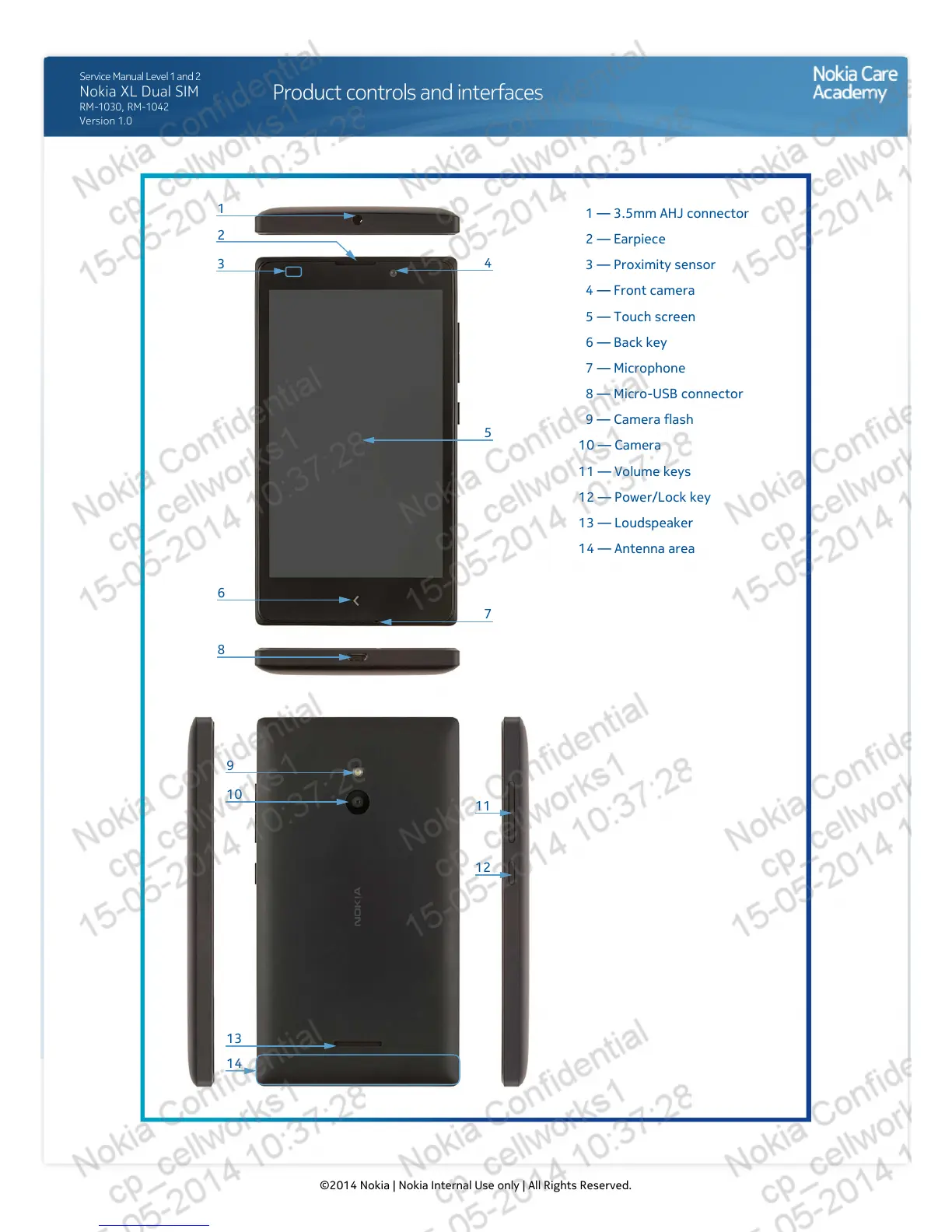

Product controls and interfaces
4
5
1
2
3
6
8
7
13
14
10
9
12
11
9 — Camera flash
8 — Micro-USB connector
7 — Microphone
6 — Back key
5 — Touch screen
4 — Front camera
3 — Proximity sensor
2 — Earpiece
1 — 3.5mm AHJ connector
10 — Camera
11 — Volume keys
12 — Power/Lock key
13 — Loudspeaker
14 — Antenna area
©2014 Nokia | Nokia Internal Use only | All Rights Reserved.
