Nokia XL - Nokia XL Dual SIM Assembly Hints; Screw Fastening and Torque Specifications

Service Manual Level 1 an
d
2
Nokia XL Dual SI
M
RM-1030, RM-1042
V
ersion 1.
0
Assembly hints

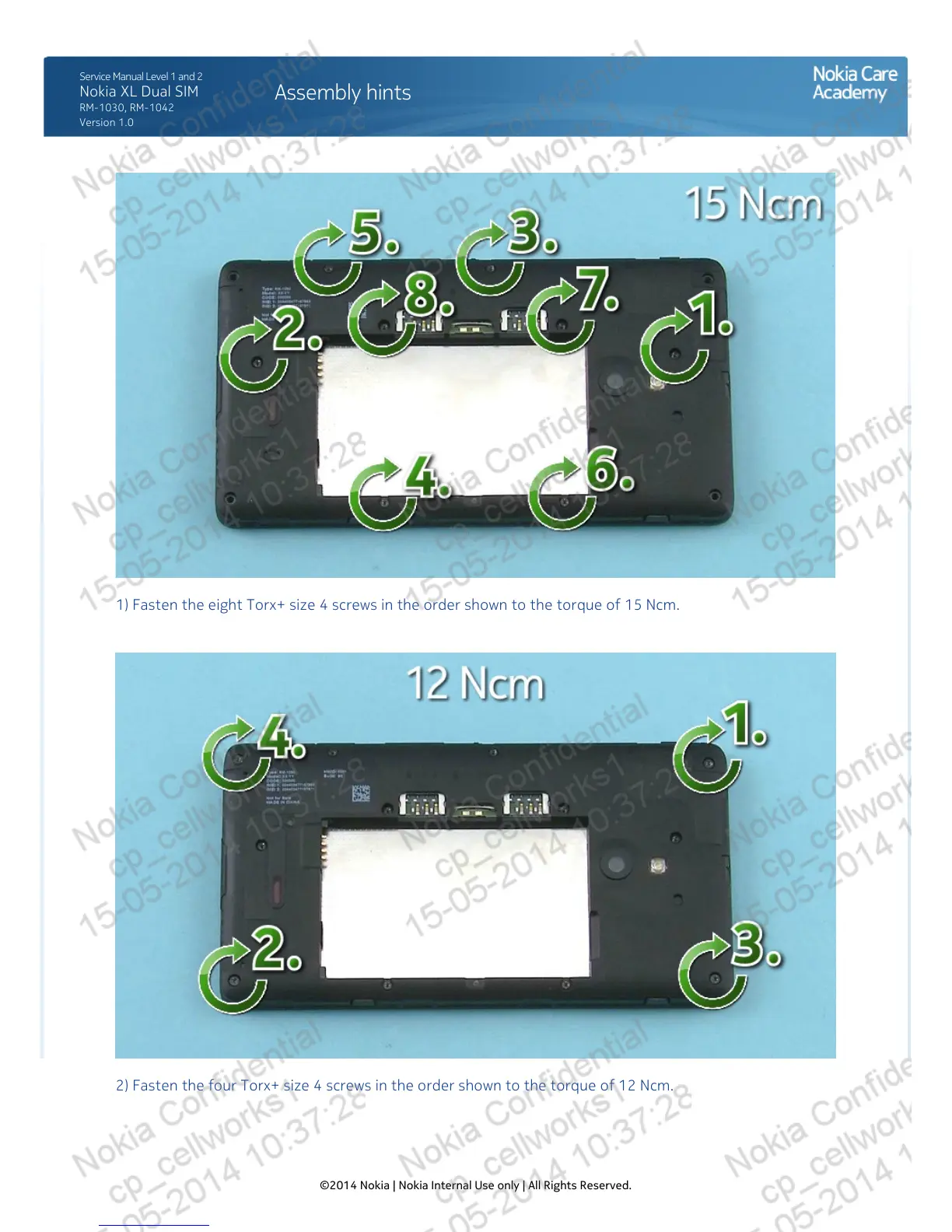

1) Fasten the eight Torx+ size 4 screws in the order shown to the torque of 15 Ncm.
2) Fasten the four Torx+ size 4 screws in the order shown to the torque of 12 Ncm.
©2014 Nokia | Nokia Internal Use only | All Rights Reserved.
