Service Manual Level 1 and 2
Nokia XL Dual SIM
RM-1030, RM-1042
Version 1.0

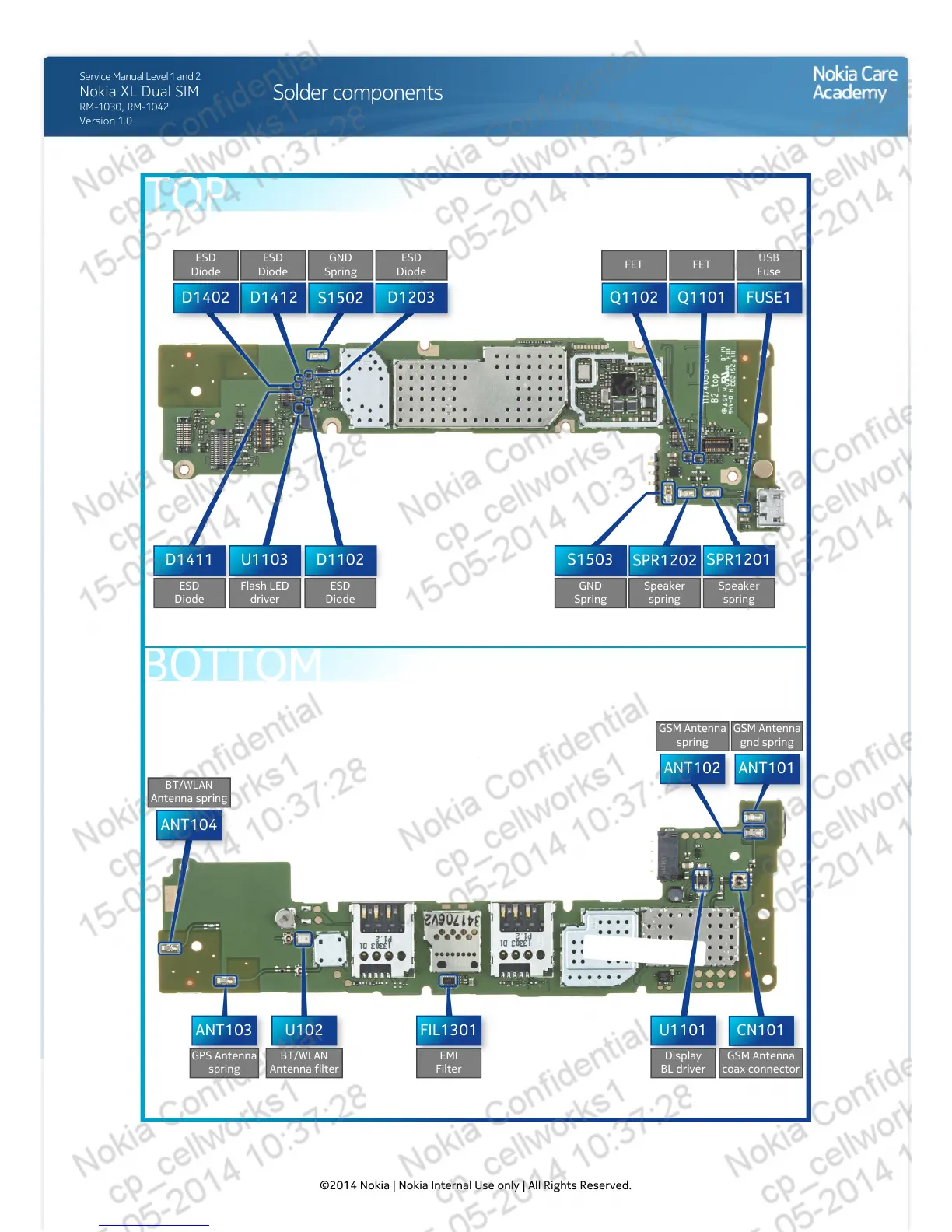

Solder components
D1412
ANT101
ANT102
ANT103 U102
FUSE1Q1102
D1402 Q1101
ANT104
SPR1201S1503
D1203
D1411 D1102
U1103
FIL1301 CN101U1101
GND
Spring
ESD
Diode
GSM Antenna
gnd spring
GSM Antenna
spring
GPS Antenna
spring
BT/WLAN
Antenna filter
USB
Fuse
FET
ESD
Diode
FET
EMI
Filter
GSM Antenna
coax connector
Display
BL driver
BT/WLAN
Antenna spring
Speaker
spring
Speaker
spring
GND
Spring
ESD
Diode
ESD
Diode
ESD
Diode
Flash LED
driver
TOP
BOTTOM
©2014 Nokia | Nokia Internal Use only | All Rights Reserved.
