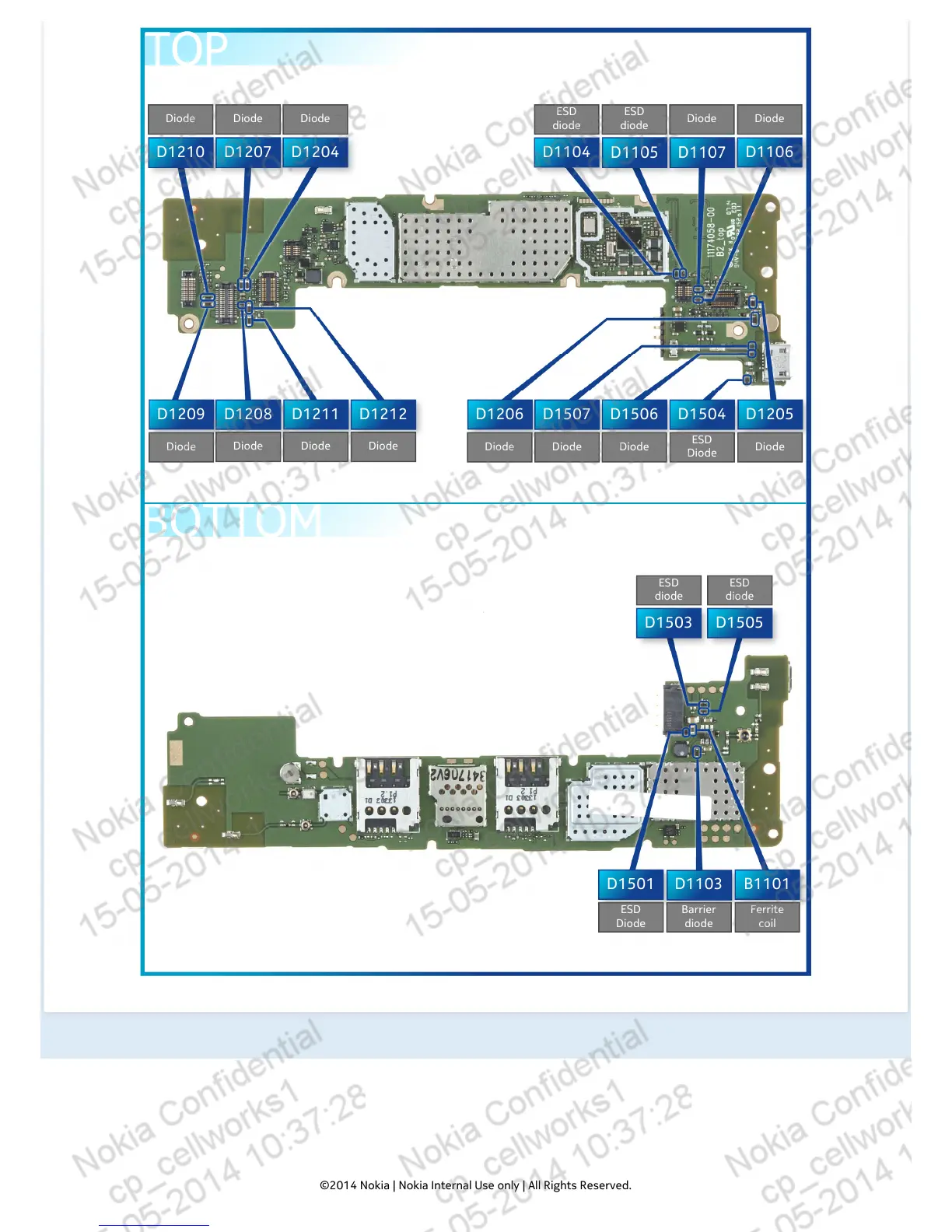

D1210
D1205D1206D1209
D1103
D1506
D1106D1104
B1101D1501
D1503 D1505
D1207
D1204
D1504D1507D1211D1208 D1212
Diode
DiodeDiodeDiode
Barrier
diode
Diode
Diode Diode
ESD
diode
ESD
diode
Ferrite
coil
ESD
Diode
ESD
diode
ESD
diode
Diode Diode
ESD
Diode
Diode
DiodeDiode Diode
TOP
BOTTOM
©2014 Nokia | Nokia Internal Use only | All Rights Reserved.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Nokia XL and is the answer not in the manual?

Nokia XL Specifications

General IconGeneral
RAM768 MB
Internal Storage4 GB
Expandable StoragemicroSD, up to 32 GB
Front Camera2 MP
BatteryLi-Ion 2000 mAh, removable
Dimensions141.4 x 77.7 x 10.9 mm (5.57 x 3.06 x 0.43 in)
Weight190 g (6.70 oz)
SIMDual SIM (Micro-SIM, dual stand-by)
NetworkGSM / HSPA
ChipsetQualcomm MSM8225 Snapdragon S4 Play
GPUAdreno 203
Display TypeIPS LCD
ColorsBright Green, Orange, Cyan, Yellow, Black, White
WLANWi-Fi 802.11 b/g/n, hotspot
Bluetooth3.0, A2DP
GPSYes, with A-GPS
RadioFM radio
USBmicroUSB 2.0
Display5.0 inches
ProcessorDual-core 1.0 GHz Cortex-A5
Main Camera5 MP
Operating SystemAndroid 4.1.2 (Jelly Bean)
