230 Vac control board power supply
4 11
230 Vac motors power supply and 230Vac lamp
12 18
Accessories power supply and services and securities inputs
19 20
Output for 12 Vac 50 Hz 1 A electrical lock, is powered for 3 seconds only by opening
21 25
Commands, safeties, antenna
26 27
Freecontactforlightindicatingopengateorlampwithoutashingcard.
28 31
Fototest and accessories tension and inputs for services and safeties.
TIMES
button for working time learning and setting up of “ VELOCE ”( fast) of the pause –time. For
PEDESTRIAN ( partial opening ) learning time keep pressed till the opening of the MOTOR 1
CODES button to memorize the codes in the receiver( cancellation of the memory and codes learning)
FORCE
MOTOR FORCE ADJUST
20% TO 100%
PHASE-DIS.
Setting up of the TIME PHASE DISPLACEMENT DOORS by opening and closing: Departing minimum
speed of 1 sec and , if adjusted at the maximum power, the door opens when the second door has
nishedtheworkingtime.Innextopeningwillthenewvaluevalid(0Max).
SPEED
SLOW
DOWN
Setting up of the speed of the slow down and remove of the slow down. (MINIMUM _OFF). For the most
part of the motors set up the speed at about 1/3 of the normal speed of the motor. TO remove the slow
down, turn the trimmer in OFF.
LED
OPENING
Signal lamp to indicate the status of the automation (see diagram)LED
CLOSING
LED CODES

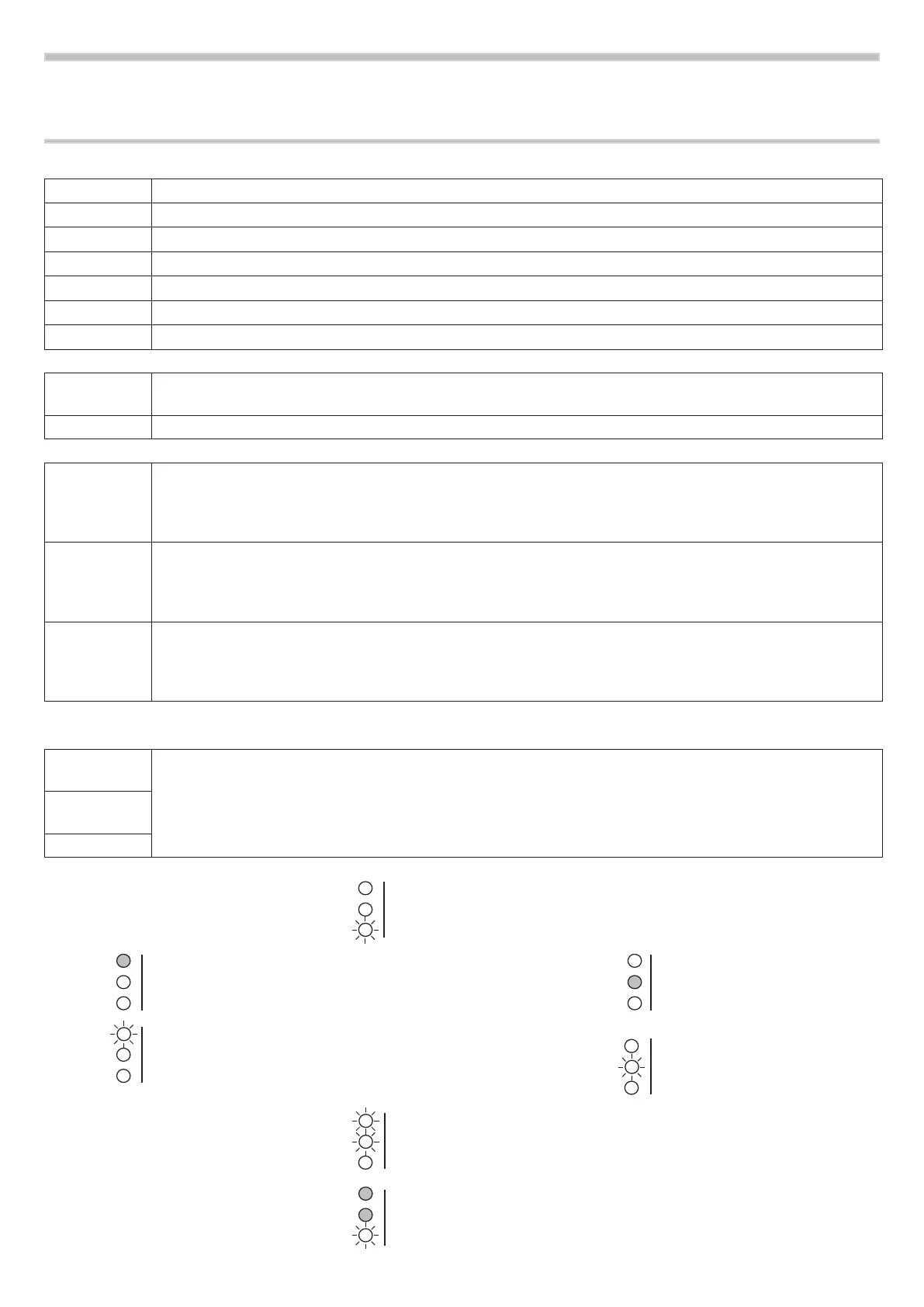

2.6 Connections and setting up
5
OPEN
CLOSE
CODES
Theledforcodesashes:
The gate is closed
led indicating the opening
is switching on:
The gate is opening
ledinopeningashes:
The gate is in opening
slow down
led by closing is switched
on: The gate is closing
ledinclosingashes:
The gate is slowing down by
closing
ledopeningandclosingashes:
The gate is open and stop
led opening and closing and l.e.d. codes
ashes:
Fast setting up of the pause time
OPEN
CLOSE
CODES
OPEN
CLOSE
CODES
OPEN
CLOSE
CODES
OPEN
CLOSE
CODES
OPEN
CLOSE
CODES
OPEN
CLOSE
CODES
