MAINTENANCE

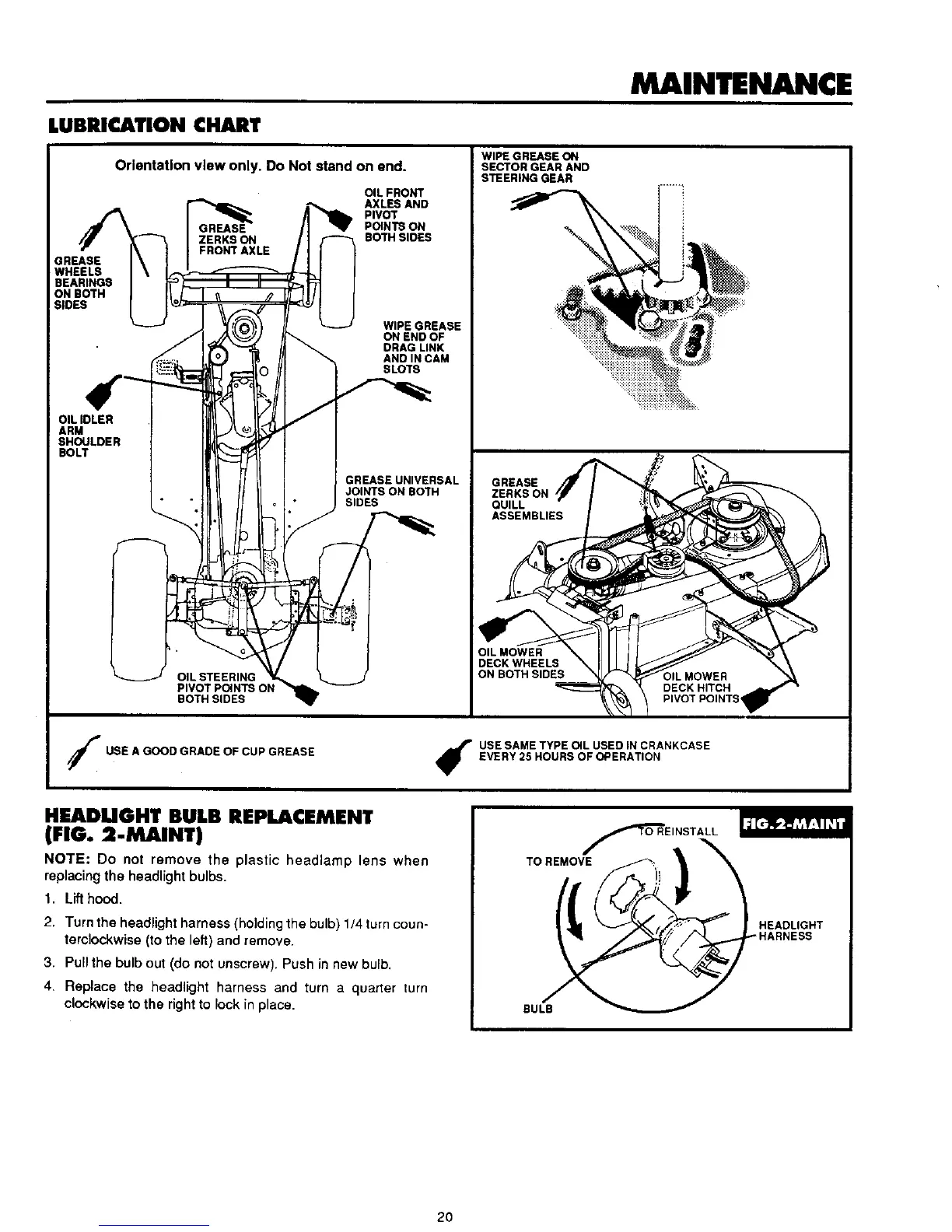

LUBRICATION CHART
GREASE
WHEELS
BEARINGS
ON BOTH
SIDES
OIL IDLER
ARM
SHOULDER
BOLT
Orientation view only. Do Not stand on end.
OIL FRONT
AXLES AND
PIVOT
POINTSON
BOTHSLOES
WIPE GREASE
ON END OF
DRAG LINK
AND IN CAM
SLOTS
GREASE UNIVERSAL
I JOINTS ON BOTH
I
SIDES
/
OIL STEERING
PIVOT POINTS ON
BOTH SIDES
WIPE GREASE ON
SECTOR GEAR AND
STEERING GEAR
GREASE
ZERKS ON
QUILL
ASSEMBLIES
OIL MOWER
DECK WHEELS
ON BOTH SIDES
MOWER
DECK HITCH
PIVOT POINTSq
USE A GOOD GRADE OF CUP GREASE
USE SAME TYPE OIL USED IN CRANKCASE
EVERY 25 HOURS OF OPERATION
HEADUGHT BULB REPLACEMENT
(FIG. 2-MAINT)
NOTE: Do not remove the plastic headlamp lens when
replacing the headlight bulbs.
1. Lift hood.
2. Turn the headlight harness (holding the bulb) t/4 turn coun-
temlockwise (to the left) and remove.
3. Pull the bulb out (do not unscrew). Push in new bulb.
4. Replace the headlight harness and turn a quarter turn
clockwise to the right to lock in place.
TO REMOVE
BULB
HEADLIGHT
2O
