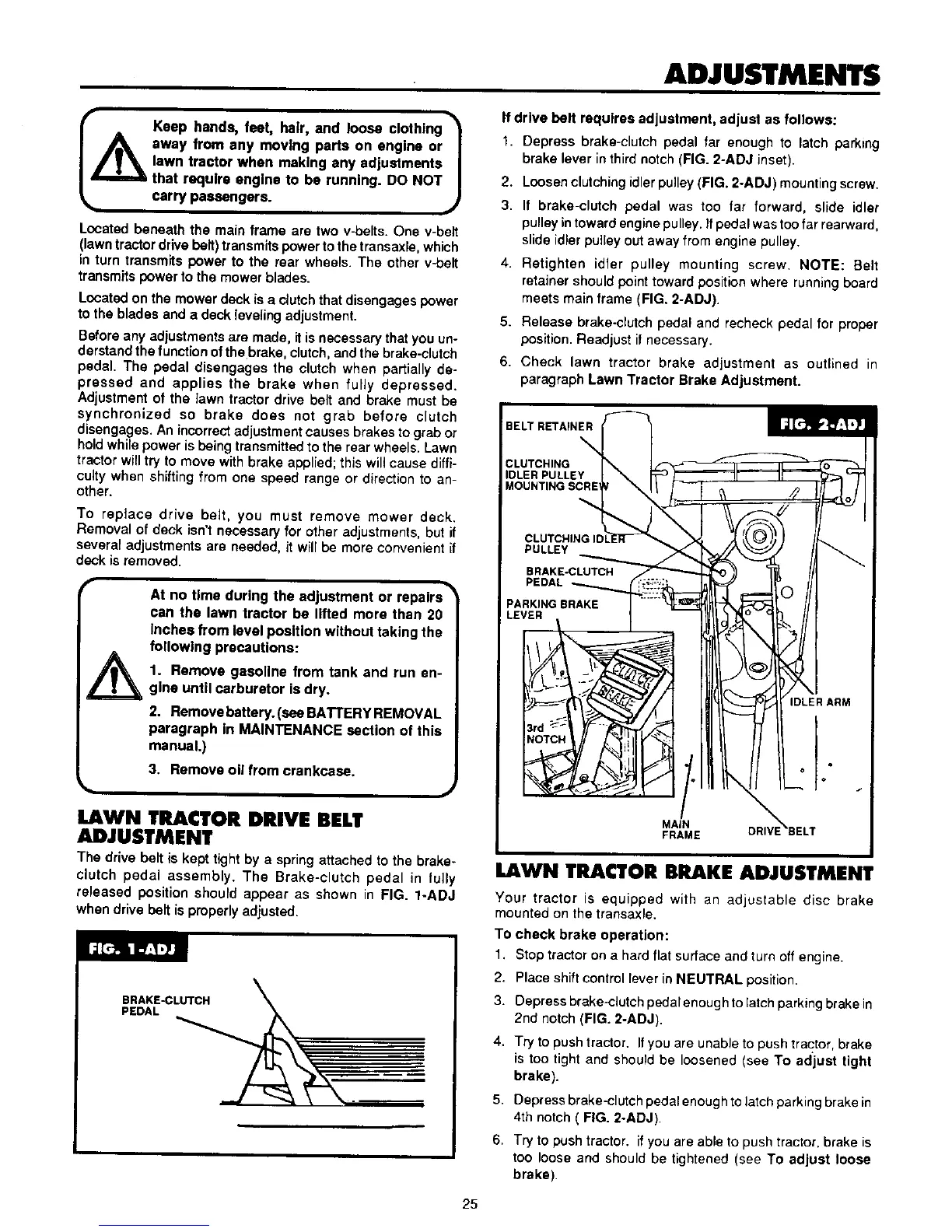

ADJUSTMENTS
I_iiK eep hands, feet, hair, and loose clothing 1
away from any moving parts on engine or
lawn tractor when making any adjustments
that require engine to be running. DO NOT
carry passengers.
Located beneath the main frame are two v-belts. One v-belt
(lawn tractor drive belt) transmits power to the transaxla, which
in turn transmits power to the rear wheels. The other v-belt
transmits power to the mower blades.
Located on the mower deck is a clutch that disengages power
to the blades and a deck leveling adjustment.
Before any adjustments are made, it is necessary that you un-
derstand the function ofthe brake, clutch, and the brake-clutch
pedal. The pedal disengages the clutch when partially de-
pressed and applies the brake when fully depressed.
Adjustment of the lawn tractor drive belt and brake must be
synchronized so brake does not grab before clutch
disengages. An incorrect adjustment causes brakes to grab or
holdwhile power is being transmitted to the rear wheels. Lawn
tractor will try to move with brake applied; this will cause diffi-
culty when shifting from one speed range or direction to an-
other.
To replace drive belt, you must remove mower deck.
Removal of deck isn't necessary for other adjustments, but if
several adjustments are needed, it will be more convenient ff
deck isremoved.
At no time during the adjustment or repairs _
can the lawn tractor be lifted more than 20
Inches from level position without taking the
following precautions:
1. Remove gasoline from tank and run en-
gine until carburetor is dry.
2. Remove battery. (see BA'rrERY REMOVAL
paragraph in MAINTENANCE section of this
manual.)
3. Remove oil from crankcase.
J
LAWN TRACTOR DRIVE BELT
ADJUSTMENT
The drive belt is kept tight by a spring attached to the brake-
clutch pedal assembly. The Brake-clutch pedal in fully
released position should appear as shown in FIG. t-ADJ
when drive belt is properly adjusted.
If drive belt requires adjustment, adjust as follows:
1. Depress brake-clutch pedal far enough to latch parking
brake lever in third notch (FIG. 2-ADJ inset).
2. Loosanclutchingidlerpu]ley(FIG. 2-ADJ)mountingscrew.
3. If brake-clutch pedal was too far forward, slide idler
pulley in toward engine pulley, if pedal was too far rearward,
slide idlerpulley out away from engine pulley.
4. Ratighten idler pulley mounting screw. NOTE: Belt
retainer should point toward position where runningboard
meets main frame (FIG. 2-ADJ).
5. Release brake-clutch pedal and recheck pedal for proper
position. Readjust if necessary.
6. Check lawn tractor brake adjustment as outlined in
paragraph Lawn Tractor Brake Adjustment.
LAWN TRACTOR BRAKE ADJUSTMENT
Your tractor is equipped with an adjustable disc brake
mounted on the transaxle.
To check brake operation:
1. Stop tractor on a hard flat surface and turn off engine.
2. Place shift control lever in NEUTRAL position.
3. Depress brake-cJutchpedalenough to latch parking brake in
2nd notch(FIG. 2-ADJ).
4. Try to push tractor. If you are unable to push tractor, brake
is too tight and should be loosened (see To adjust tight
brake).
5. Depress brake-clutch pedal enough to Jatchparkingbrake in
4th notch ( FIG. 2-ADJ).
6, Try to push tractor, if you are able to push tractor, brake is
too loose and should be tightened (see To adjust loose
brake).
25
