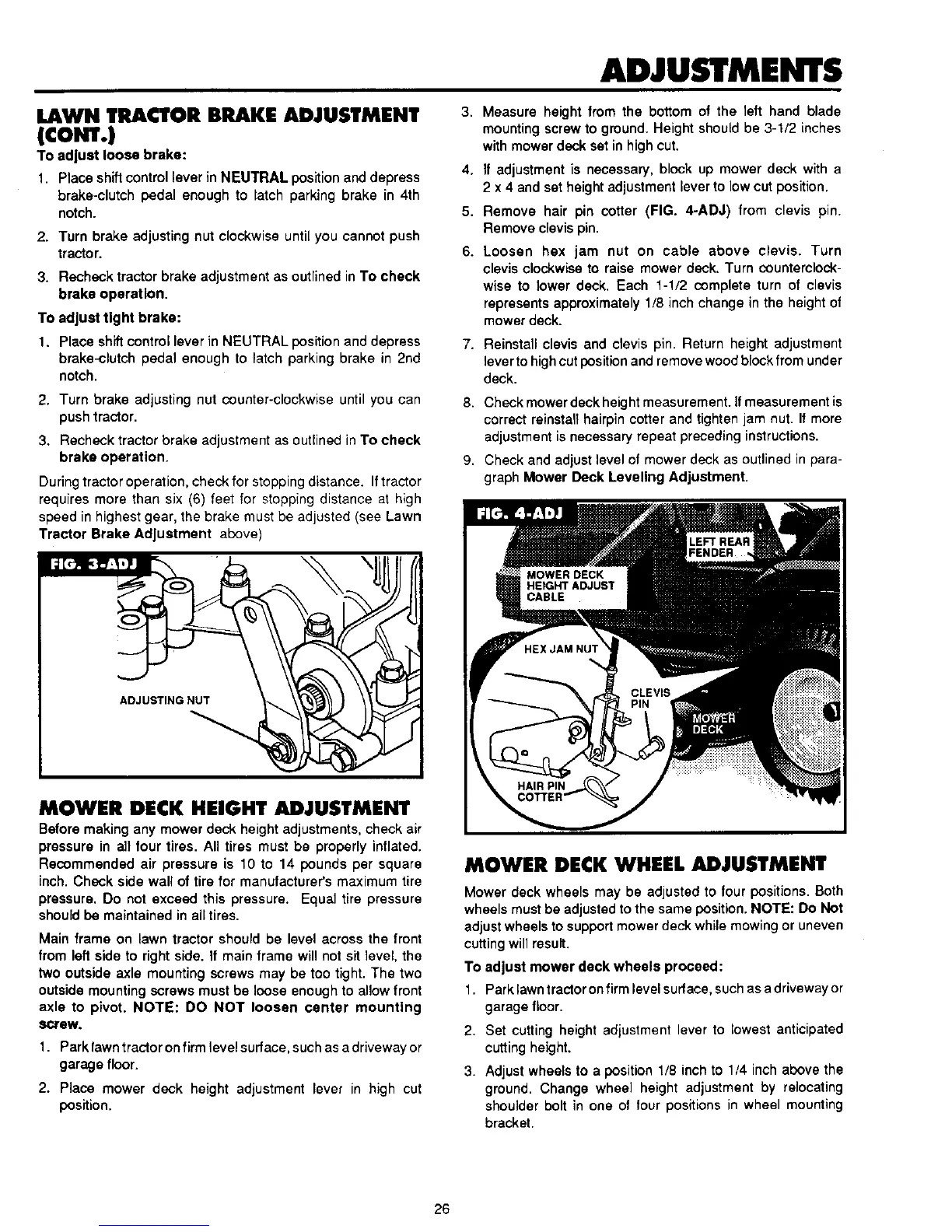

ADJUSTMENTS
LAWN TRACTOR BRAKE ADJUSTMENT
(com.)
To adjust loose brake:
1. Place shiftcontrol lever in NEUTRAL pesition and depress
brake-clutch pedal enough to latch parking brake in 4th
notch.
2. Turn brake adjusting nut clockwise until you cannot push
tractor.
3. Recheck tractor brake adjustment asoutlined in To check
brake operstlon.
To adjust tight brake:
1. Place shift control lever in NEUTRAL position and depress
brake-clutch pedal enough to latch parking brake in 2nd
notch.
2. Turn brake adjusting nut counter-clockwise until you can
push tractor.
3. Recheck tractor brake adjustment as outlined in To check
brake operation.
During tractor operation, check for stopping distance. If tractor
requires more than six (6) feet for stopping distance at high
speed in highest gear, the brake must be adjusted (see Lawn
Tractor Brake Adjustment above)
3.
4.
5.
6.
7.
8.
9.
Measure height from the bottom of the left hand blade
mounting screw to ground. Height should be 3-1/2 inches
with mower deck set in high cut.
If adjustment is necessary, block up mower deck with a
2 x 4 and set height adjustment lever to low cut position.
Remove hair pin cotter (FIG. 4-ADJ) from clevis pin.
Remove clevis pin.
Loosen hex jam nut on cable above clevis. Turn
clevis clockwise to raise mower deck. Turn counterclock-
wise to lower deck. Each 1-1/2 complete turn of clevis
represents approximately 1/8 inch change in the height of
mower deck.
Reinstall clevis and clevis pin. Return height adjustment
lever to high cut position and remove wood block from under
deck.
Check mower deck height measurement, if measurement is
correct reinstall hairpin cotter and tighten jam nut. If more
adjustment is necessary repeat preceding instructions.
Check and adjust level of mower deck as outlined in para-
graph Mower Deck Leveling Adjustment.
MOWER DECK HEIGHT ADJUSTMENT
Before making any mower deck height adjustments, check air
pressure in all four tires. All tires must be properly inflated.
Recommended air pressure is 10 to 14 pounds per square
inch. Check side wall of tire for manufacturer's maximum tire
pressure. Do not exceed this pressure. Equal tire pressure
should be maintained in all tires.
Main frame on lawn tractor should be level across the front
from left side to right side. If main frame will not sit level, the
two outside axle mounting screws may be too tight. The two
outside mounting screws must be loose enough to allow front
axle to pivot. NOTE: DO NOT loosen center mounting
s_row.
1. Park lawn tractor on firm level surface, such as a driveway or
garage floor.
2. Place mower deck height adjustment lever in high cut
position.
MOWER DECK WHEEL ADJUSTMENT
Mower deck wheels may be adjusted to four positions. Both
wheels must be adjusted to the same position. NOTE: Do Not
adjust wheels to support mower deck while mowing or uneven
cutting will result.
To adjust mower deck wheels proceed:
1. Park lawn tractor onfirm level surface, such as a driveway or
garage floor.
2. Set cutting height adiustment lever to lowest anticipated
cutting height.
3. Adjust wheels to a position 1/8 inch to 1/4 inch above the
ground. Change wheel height adjustment by relocating
shoulder bolt in one of four positions in wheel mounting
bracket.
26
