Reverse the Door Swing - N260.3 Models (optional)
This refrigerator has door hinges that allow you to change the direction that the door opens by moving the hinges on a diagonal to the
opposite side. (See Art01031)
1. Remove the door:
- Remove the storage bins from the door.
- Turn out and save the upper hinge pin [210].
- Open the door a small amount and pull the top of the door away from
the upper hinge of the refrigerator.
- Lift the door off [39] of the lower hinge pin [64].
- Turn out and save the lower hinge pin.
2. Change the position of the hinges:
- Remove the screws from the front of the breaker [232].
- Remove the breaker.
- Remove the screws [41] from the upper hinge [210].
- Put this hinge on the other side as the lower hinge.
- Attach the hinge with the screws.
- Turn the lower hinge pin down into this hinge.
- Remove the screws [41] from the lower hinge [64].
- Put this hinge on the other side as the upper hinge.
- Attach the hinge with the screws.
- Turn the breaker over and assemble it to the front of the refrigerator.
3. Install the door:
- Turn the door over.
- Put the door down onto the lower hinge pin.
- Align the holes in the upper hinge and the hinge bushing and hold in ths position.
- Screw the upper hinge pin down into the upper hinge and into the door.
- Put the storage bins in the door.
39
64
41
41

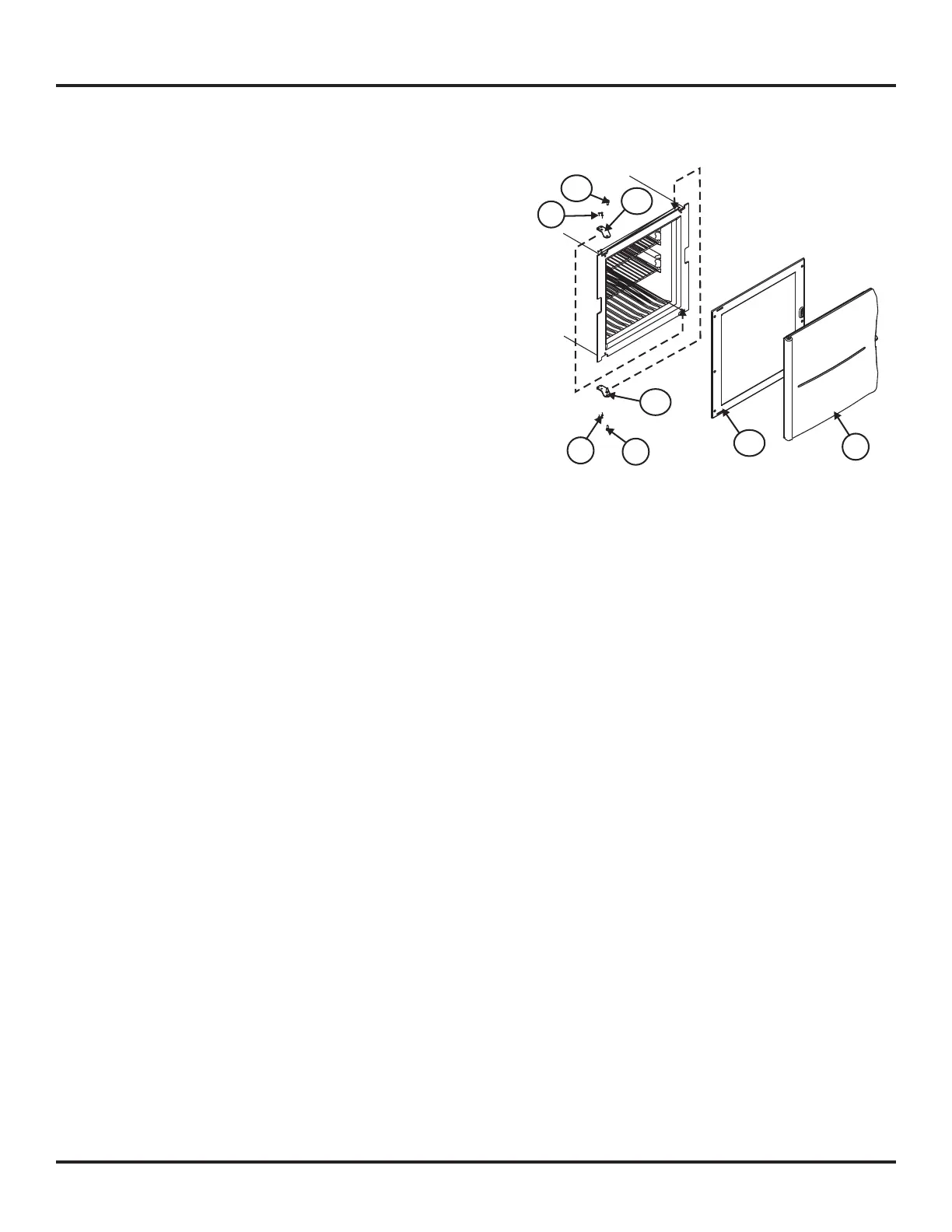

Art01031
