High Humidity - Storage
Switch Models 462, 463,
482, 483 Only
Turning this switch to HIGH HU-
MIDITY will keep the surface be-
tween the door openings dry during
high humidity conditions. This posi-
tion will also allow the interior light to
activate when the lower door is
opened. The switch should be left
in the NORMAL OPERATION posi-
tion unless condensation is ob-
served in this area. Both NORMAL
and HIGH HUMIDITY positions al-
low the cabinet light to activate
when the lower door is opened.
Note: (Figure 3.5)
When your RV is being stored
for the winter, this switch should
be placed in the STORAGE (light
off) position and ELEC-OFF-GAS
control to OFF. This shuts off all
DC power to the light and humid-
ity heater and allows the refrig-
erator door to be left open for air-
ing without chance of battery
drain during storage.
Current Draw
Interior Lamp: 600 Milliamps
Humidity Heat Strip: 240 Mil-
liamps
The interior light, humidity heat
strip circuit and relighter is pro-
tected by the 3 Amp fuse.
Note: (Figure 3.6)
A short circuit in the interior lamp
socket will cause constant fuse
blowing.

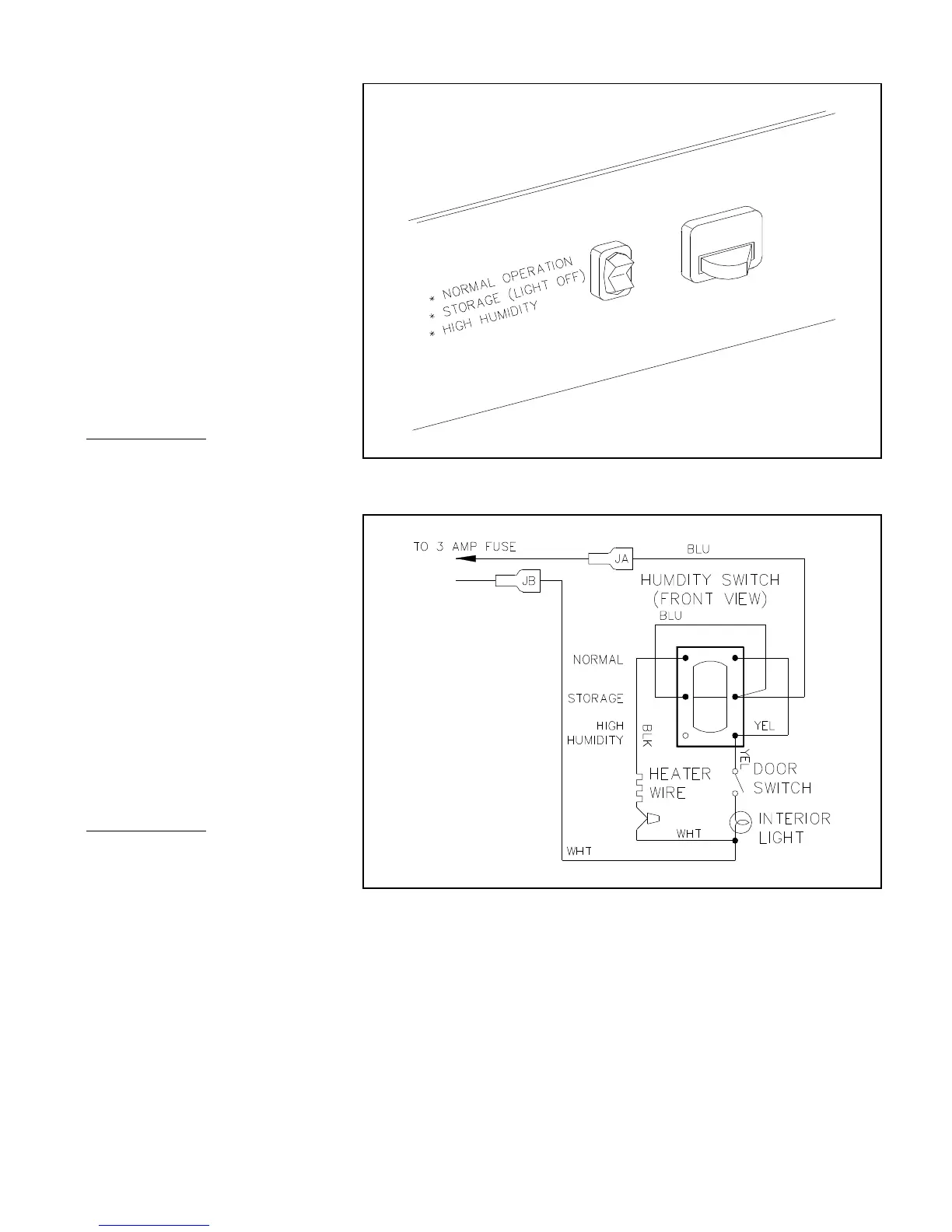

Figure 3.6 Wiring Assembly - Humidity and Light Switch
