Norcold DE / EV 0041 - Wiring Pictorial

Owner’s Manual 11
Wiring Pictorial- DE/EV Models only

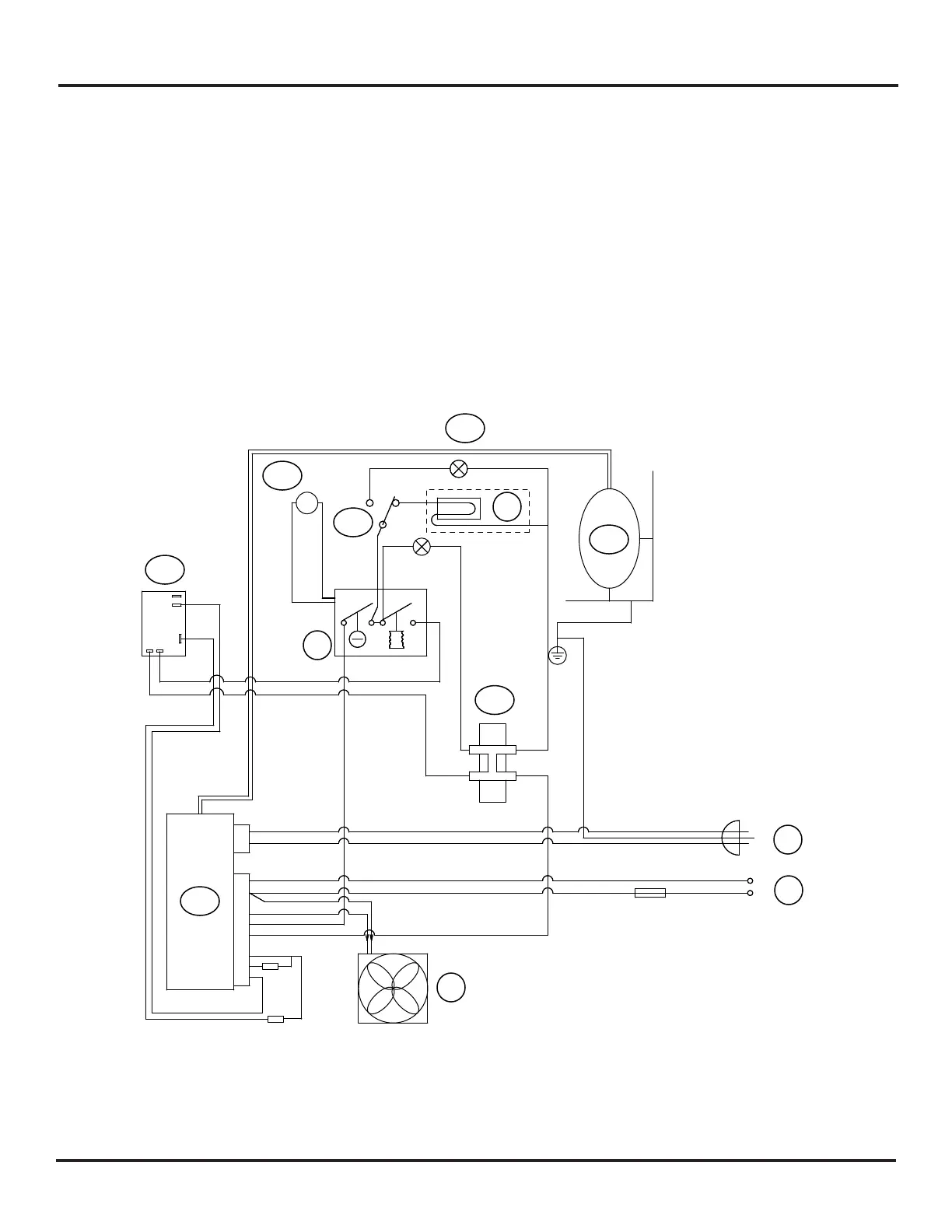

The parts of the wiring pictorial are (See Art02279):
257 ..........................................................................................Power module
99 ...............................................................................................DC input
87 ............................................................................................... AC input
96 .................................................................................Thermostat / power switch
258 ...................................................................................... Evaporator sensor
259 ........................................................................................... Compressor
97 .............................................................................................12 VDC fan
101 ............................................................................................Interior light
103 ..........................................................................................Door switch(s)
85 .....................................................................Divider heater (DE / EV0061 models only)
260 .................................................................................................Relay
219 ..........................................................................................Terminal block
