Norcool cave 55 - Side Adjustment

59
7. Installation
5.
3. 4.

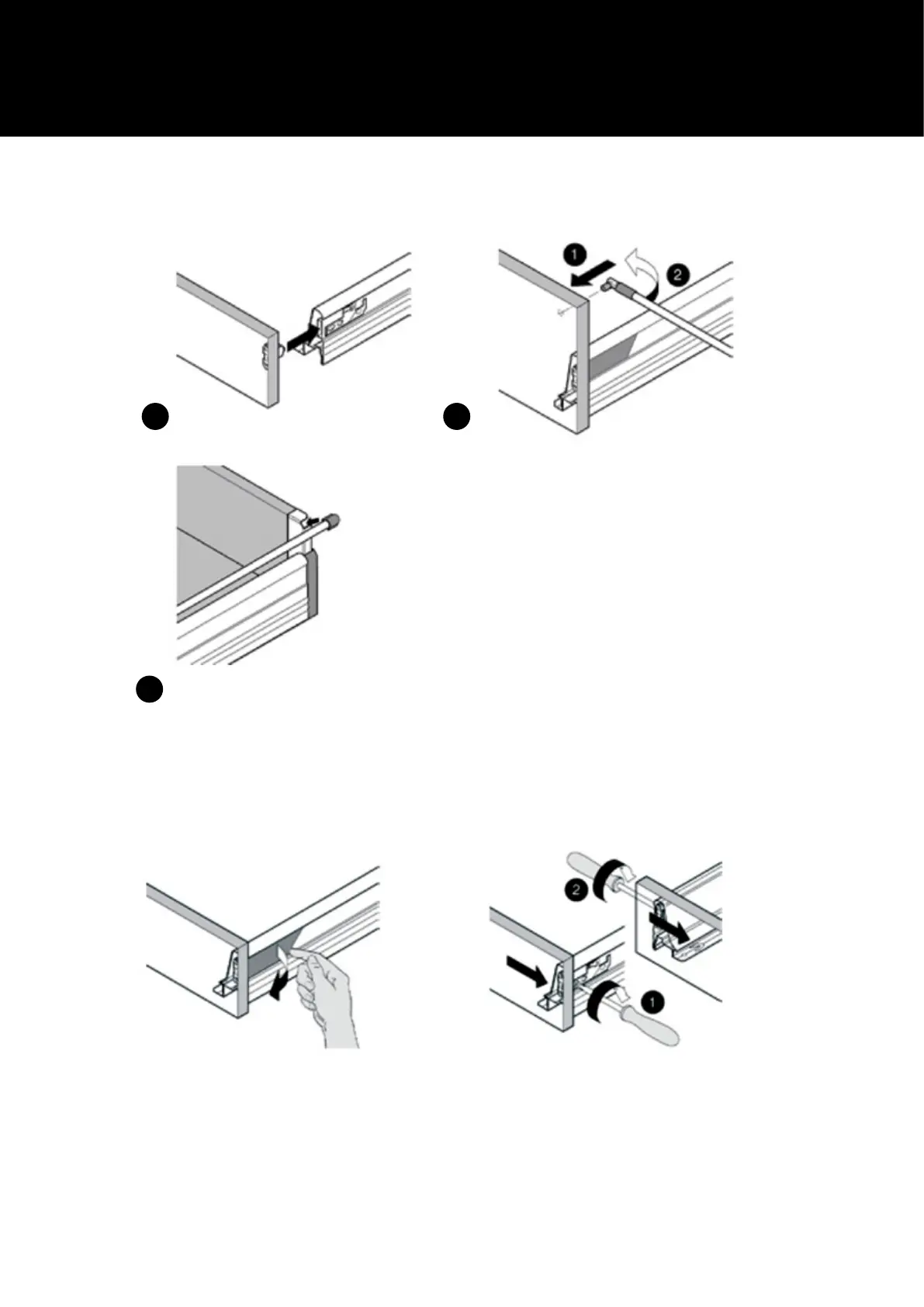

When inserting drawers: Place back edge of drawer on rails mounted in cabinet. Hold drawer horizontal and push
inwards until it locks into place. Carefully pull drawer out to check it is locked. Repeat if necessary.
7.3. Side adjustment
Remove the covering on
the side of the drawer.
The front of the drawer is adjusted laterally
right/left. A turn to the left will move the drawer
1 mm to the left. Adjust both sides of drawer if
necessary.
