9
10.

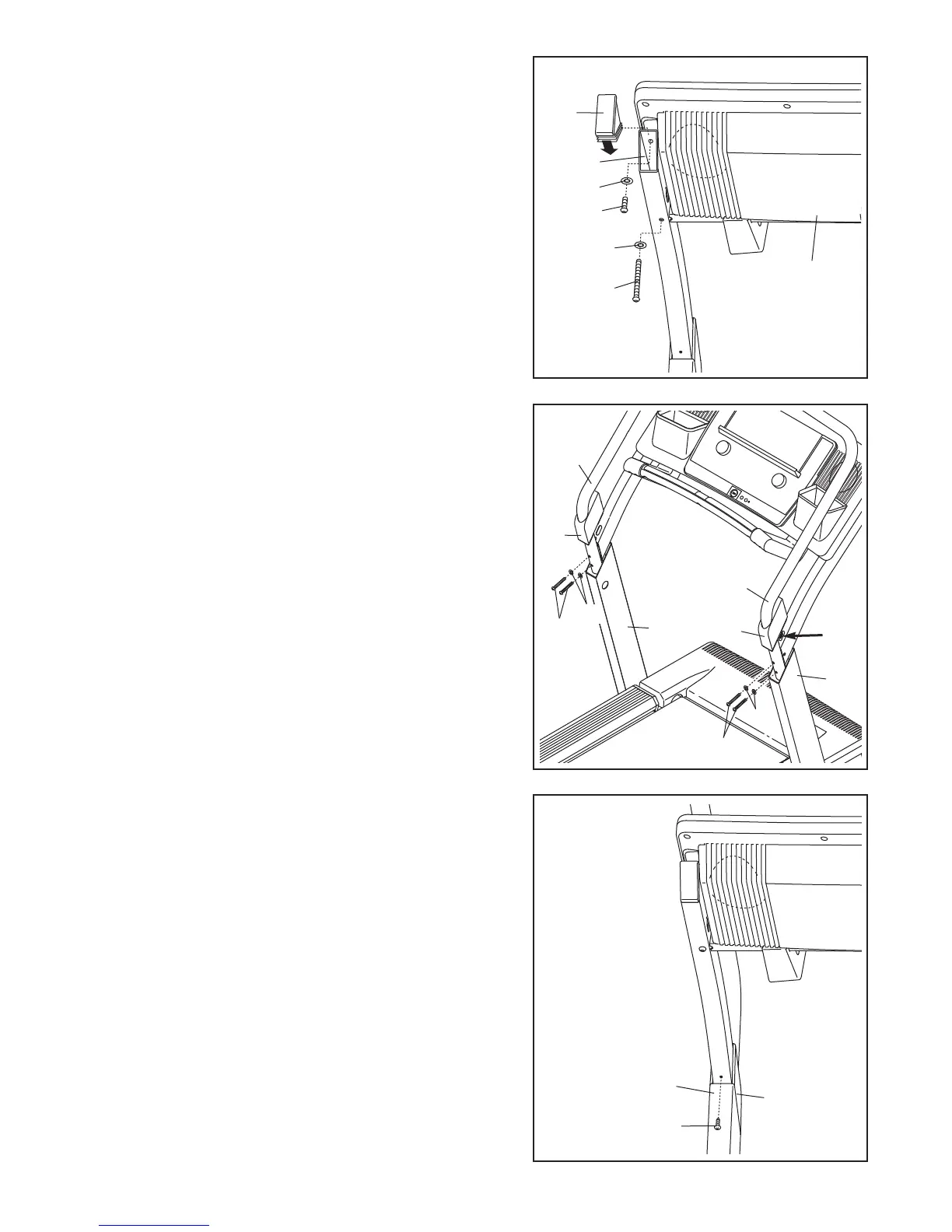

Press the right Upright Cover (75) onto the right Upright
(85). Attach the Upright Cover with a 3/4” Screw (7).
Repeat this step on the other side (not shown).
85
75
7
9.
Slide the two Upright Covers (75) onto the ends of the
Handrails (68, 70). Align the holes in the lower ends of the
Handrails with the holes in the Uprights (85). Do not drop
the Handrails into the Uprights. Do not cut the indicated
black tie.
Loosely thread four Handrail Bolts (66) with four Star
Washers (67) into the Handrails (68, 70) and the Uprights
(85). Firmly tighten the four Handrail Bolts.
85
85
75
68
70
66
67
66
75
67
8. Set the console assembly on the Uprights (85). Make sure
that no wires are pinched. Finger tighten a Console Bolt
(72) with a Star Washer (67) into the lower hole in each
Upright (only one side is shown).
Next,
finger tighten a Short Console Bolt (112) with a
Star Washer (67) into the upper hole in each Upright (85)
(only one side is shown). Be careful not to drop the
Short Console Bolts into the Uprights. Firmly tighten
the two Console Bolts (72) and the two Short Console
Bolts.
Insert an Upright Endcap (71) into the top of each Upright
(85) (only one side is shown). Note: Insert the end of the
Upright Endcap indicated by the arrow first; use a rubber
mallet if necessary.
112
85
71
67
67
72
Console
Assembly
Do
Not
Cut
8
9
10
To Next Page
