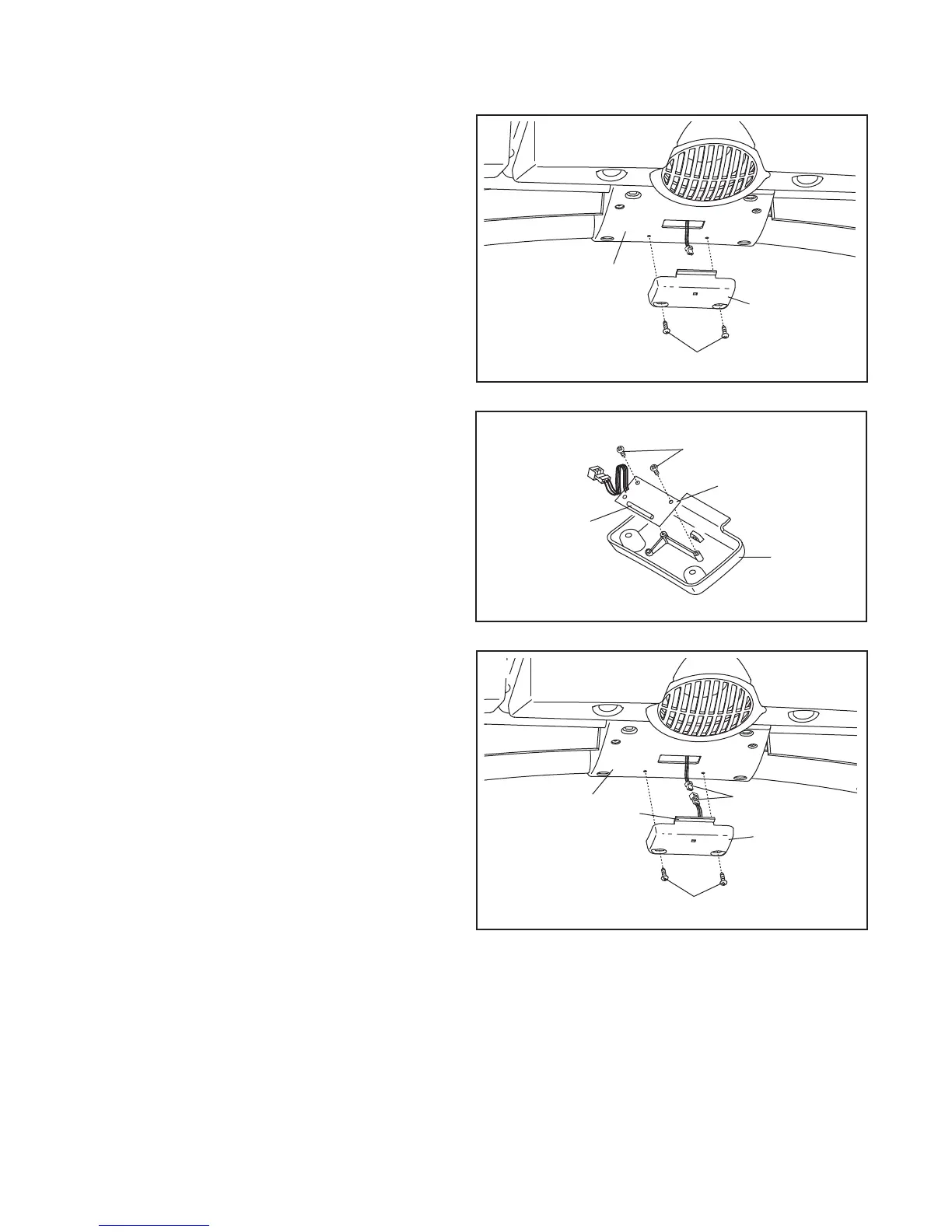

1. Make sure that the power cord is unplugged.
Remove the indicated #8 x 3/4" Screws (4) from
the Pulse Receiver Cover (70) on the back of the
console assembly.
2. Next, hold the receiver so the antenna is ori-
ented as shown. Attach the receiver to the
Pulse Receiver Cover (70) with the two included
small screws.
3. Connect the wire on the receiver to the wire ex-
tending from the console assembly. Make sure
that no wires are pinched. Reattach the Pulse
Receiver Cover (70) to the Console Assembly
with the two #8 x 3/4" Screws (4). Discard the
other wires included with the receiver.
If you purchase the optional chest pulse sensor (see page 19), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
Console
Assembly
1
70
4
3
70
Wires
Tab
4
70
Antenna
2
Small Screws
Receiver
Console
Assembly
