12
6
87
87
65
65
C

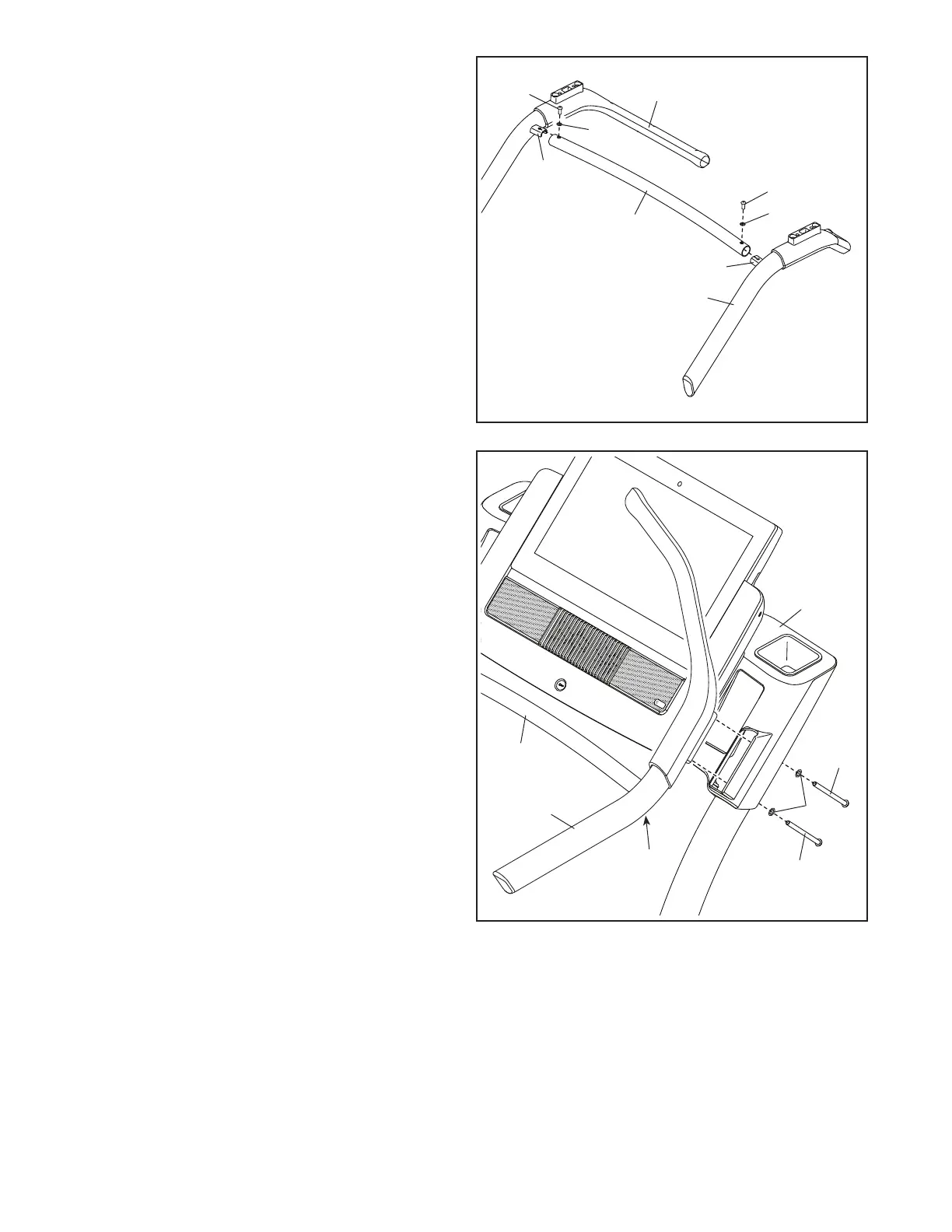

6. Remove the 5/16" x 1" Screws (87) and the
5/16" Star Washers (65) from the brackets (C) on
the right and left handrail assemblies (D, E).
With the help of a second person, position the
right and left handrail assemblies (D, E) upside
down as shown. Attach the Crossbar (85) to
the handrail assemblies with the 5/16" x 1"
Screws (87) and the 5/16" Star Washers (65).
Do not tighten the Screws yet.
C
D
85
E
7
F
7. With the help of a second person, set the hand-
rail assembly (D) on the console assembly (F).
Attach the handrail assembly (D) with four 3/8" x
5 1/2" Screws (1) and four 3/8" Star Washers (3)
(only one side is shown); start all four Screws,
and then tighten them.
Then, firmly tighten the 5/16" x 1" Screw (87)
located under each side of the Crossbar (85).
D
87
85
1
1
3
To Next Page
