30
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the elliptical is used.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power cord is fully plugged in.
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the
displayed heart rate appears to be too high or too low,
see step 5 on page 19.
If the console does not display your heart rate
when you use the chest heart rate monitor, see
TROUBLESHOOTING on page 11.
If it is difficult for you to touch the correct buttons on
the screen, the screen may not be properly calibrated.
To calibrate the screen, see step 5 on page 26.

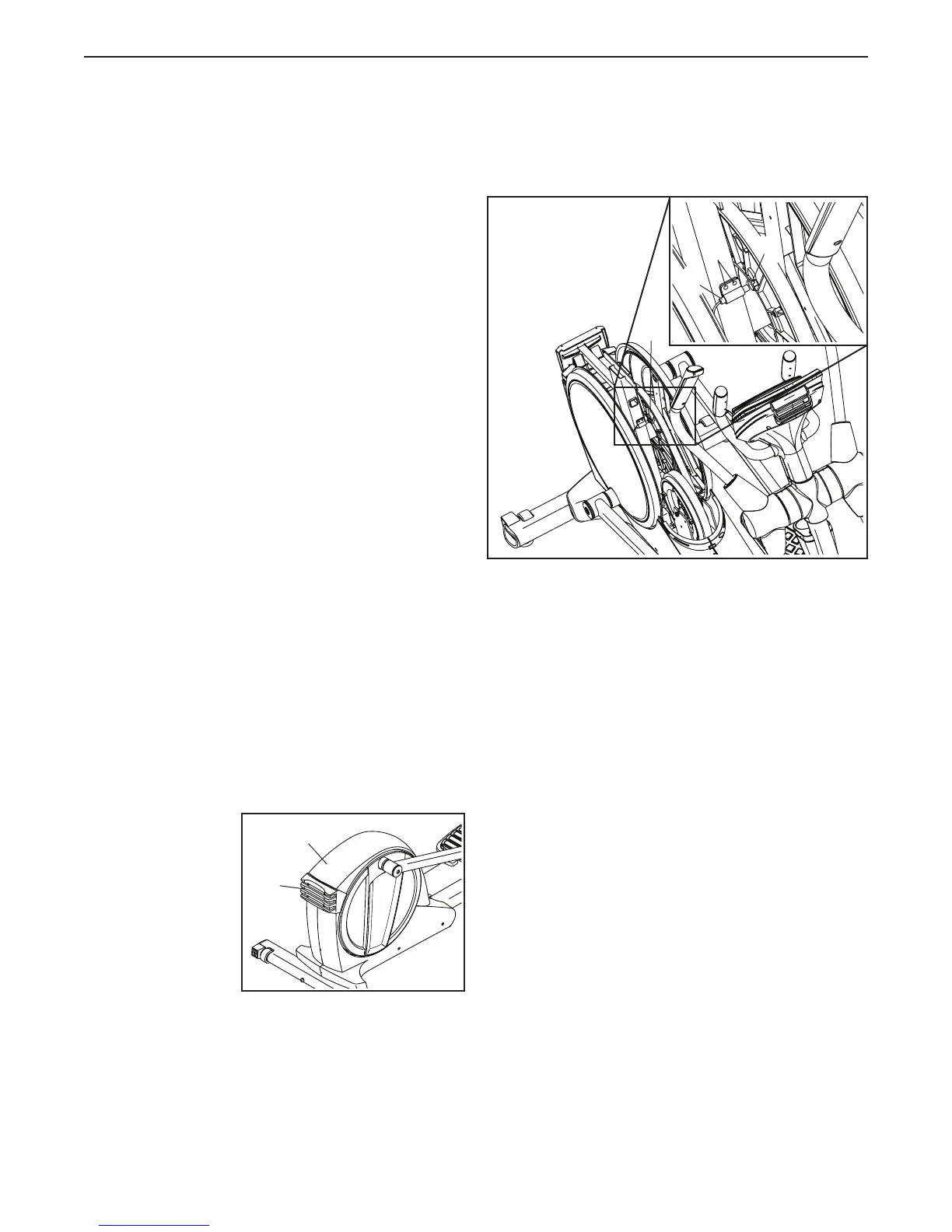

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first press the power switch to the off posi-
tion and unplug the power cord.
Next, remove
the four M4 x
16mm Screws
(not shown)
from the Large
Storage Foot
(27), and then
remove the Large
Storage Foot.
Then, remove the
two M4 x 16mm
Screws (not shown) from the Top Shield (37), and
then use a standard screwdriver to pry the Top Shield
upward off the elliptical.
Look into the access opening and locate the Reed
Switch (58). Rotate the Pulley (66) until a Magnet (41)
is aligned with the Reed Switch.
Next, loosen, but do not remove, the two indicated
M4 x 16mm Screws (61). Slide the Reed Switch (58)
slightly toward or away from the Magnet (41). Then,
retighten the M4 x 16mm Screws.
Plug in the power cord, press the power switch to the
reset position, and rotate the pulley for a moment.
Repeat these actions until the console displays correct
feedback.
When the reed switch is correctly adjusted, press the
power switch to the off position, unplug the power cord
and reattach the top shield and the large storage foot.
Then, plug in the power cord.
37
27
66
58
41
61
MAINTENANCE AND TROUBLESHOOTING
