Instruction Sheet 46-75
Page 2
2300 Retrofit
INSTALLATION
1. Empty all adhesive from the Melter Feeder and the tank of the
applicator.
2. Disconnect and lock out input power to the Melter Feeder and
to the
A
9
A
applicator.
WARNING: Failure to disconnect external power to
the Melter Feeder or to the applicator presents a
serious shock hazard. This procedure requires con-
tact with wires and electrical components of the Mel-
ter Feeder and the applicator.
WARNING: Wear safety glasses, safety gloves (P/N
902 514), and protective clothing to prevent injury
from hot applicator parts or splashed hot melt ad-
hesive material.
3. Remove the screws holding the hood to the grid.
4. Remove the plate from the Material Level Probe Assembly. Dis-
connect all wires.
CONDUIT
CONNECT
CON DUITd

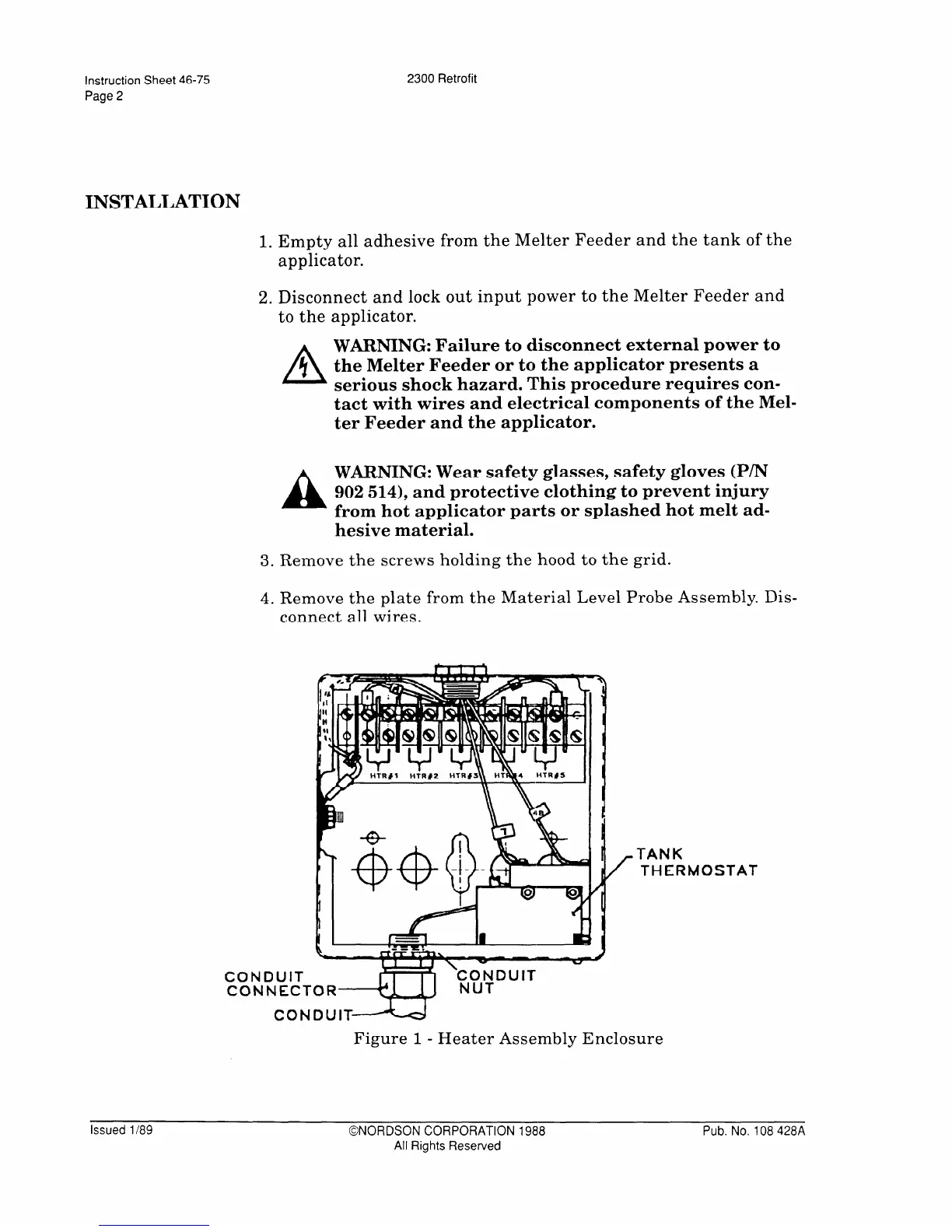

Figure 1 - Heater Assembly Enclos
ure
TANK
THER
MOSTAT
Issued l/89
ONORDSON CORPORATION 1988
All Rights Reserved
Pub. No. 108 428A
